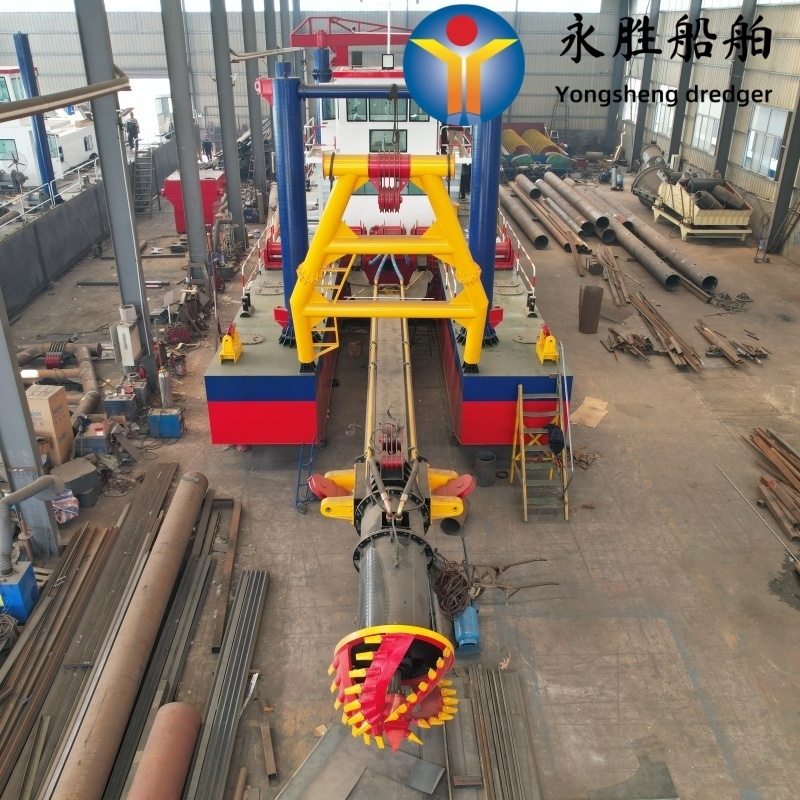

Cutter Suction Sand Dredger with 3800m3/H Water Flow

Name: Cutter Suction Sand Dredger with 3800m3/H Water Flow
Brand: Shandong Yongsheng Dredging Machinery Co., Ltd.
SKU: csd500
Price: 709000 USD
Availability: InStock

Product Details

Place of Origin: china

Brand Name: yongsheng

Model Number: csd500

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 709000usd/piece

Packaging Details: Container

Delivery Time: 60 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Customized:	Customized	Condition:	New
Warranty:	1 Year	Water Flow:	3800m3/H
Solid Capacity:	760 Cbm/H	Max.Dredging Depth 45°:	15m
Discharge Distance:	1500m	Dredger After Assembly:	478.82 .5m LengthWidthDepth
Dredger Structure:	Can Be Assembly In Working Site	Average Draught:	1 .6m
Diameter Discharge Pipe:	500mm/20inch	Total Power:	1648kw
Main Engine:	1193 Kw	Auxiliary Engine Power:	425kw
Generator:	30kw	Hydraulic Cutter Powerr:	220kw

Customized:	Customized
Condition:	New
Warranty:	1 Year
Water Flow:	3800m3/H
Solid Capacity:	760 Cbm/H
Max.Dredging Depth 45°:	15m
Discharge Distance:	1500m
Dredger After Assembly:	478.82 .5m LengthWidthDepth
Dredger Structure:	Can Be Assembly In Working Site
Average Draught:	1 .6m
Diameter Discharge Pipe:	500mm/20inch
Total Power:	1648kw
Main Engine:	1193 Kw
Auxiliary Engine Power:	425kw
Generator:	30kw
Hydraulic Cutter Powerr:	220kw

Product Description

Cutter Suction Sand Dredger with 3800m3/H Water Flow

Shandong yongsheng cutter suction dredger is dismountable and can be easily transported to any location.

With its robust design, it is the preferred choice in its class due to low maintenance, excellent fuel consumption

and high productivity levels.

Our CSD is equipped with state-of-the-art technology, including the following key features:
• low maintenance and efficient power distribution
• environmentally friendly solutions, such as LED lighting
• safe operation using PLC controls and interlocks
• easy to operate for a single person from the operator's seat
• control cabin placed on dampers to improve comfort and reduce noise.

• efficiency and high performance due to the pump, gearbox and fresh-water engine cooling system

• engine mounted in the centre pontoon for protection and low noise levels

• durable heavy-duty marine engine

• safe and robust pump drive.

Model list for hydraulic cutter suction dredger
Model	Inch	Diameter pipe	Water flow	Solid capacity	Total power	Dredging depth	Discharge distance
YSCSD150	6 Inch	150 mm	260 m3/h	30 cbm/h	102 KW	4m	600 m
YSCSD200	8 Inch	200 mm	600 m3/h	80 cbm/h	213 KW	6m	800 m
YSCSD250	10 inch	250 mm	1,000 m3/h	160 cbm/h	367 KW	8m	1,100 m
YSCSD300	12 inch	300 mm	1,500 m3/h	240 cbm/h	591 KW	10 m	1,100 m
YSCSD350	14 inch	350 mm	2,400 m3/h	360 cbm/h	971 KW	12m	1,200 m
YSCSD400	16 Inch	400 mm	3,000 m3/h	500 cbm/h	1,057 KW	14m	1,400 m
YSCSD450	18 Inch	450 mm	3,500 m3/h	700 cbm/h	1,462 KW	15m	1,500 m
YSCSD500	20 Inch	500 mm	3,800 m3/h	760 cbm/h	1,648 KW	15m	1,600m
YSCSD600	24 Inch	600 mm	6,000 m3/h	900 cbm/h	2,511 KW	15m	1,800 m
YSCSD650	26 Inch	650 mm	7,000 m3/h	1,400 cbm/h	3,705 KW	Max.18m	1,800m

afrer sale service:
Normally we offer 12 months warranty and free service after the dredger successfully commissioning and
hand over to customers. We have our own service team which are with mature experience and good knowledge
of dredgers.
And we can also extend offer training,operating,service program with skilled enginees as per your request.
If necessary, we can also extend the warranty&service time with negotiable conditions.

FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
