1193 kW 20 Inch Cutter Suction Dredger for Port Dredging

Product Details

Place of Origin: shandong

Brand Name: yongsheng

Model Number: YSCSD500

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: container

Delivery Time: 50days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Get Best Price
Product Details
Highlight:

20 inch cutter suction dredger

,

port dredging cutter suction dredger

,

1193 kW cutter suction dredger

Diameter Pipe:
500mm
Water Flow:
900 M3/h
Solid Capacity:
900 Cbm/h
Main Engine:
1,193 Kw Cummins Engine
Max. Dredging Depth 45°:
15 M
Discharge Distance:
1,600 M
Generator:
30kw
Hydraulic Cutter Power:
220 Kw
Diameter Pipe:
500mm
Water Flow:
900 M3/h
Solid Capacity:
900 Cbm/h
Main Engine:
1,193 Kw Cummins Engine
Max. Dredging Depth 45°:
15 M
Discharge Distance:
1,600 M
Generator:
30kw
Hydraulic Cutter Power:
220 Kw
Product Description
Main Engine Power 1,193 kW 20 Inch Cutter Suction Dredger for Port Dredging
Key Specifications
Attribute Value
Diameter pipe 500mm
Water flow 900 m³/h
Solid capacity 900 cbm/h
Main Engine 1,193 kW Cummins engine
Max. dredging depth 45° 15 m
Discharge distance 1,600 m
Generator 30 kW
Hydraulic cutter power 220 kW
Product Overview

The cutter suction dredger is a highly efficient continuous underwater excavation system, widely used in channel dredging, port construction, land reclamation, water conservancy projects, and environmental dredging. This integrated system combines excavation, transportation, and discharge functions, making it essential for modern dredging operations.

Technical Specifications
Water flow 4,800 m³/h
Solid capacity 900 cbm/h
Max. dredging depth 45° 15 m
Discharge distance 1,600 m
LOA 47 m
Dimensions (L×W×D) 47×8.8×2.5 m
Structure Dismantle type for on-site assembly
Average draught 1.6 m
Diameter discharge pipe 500mm/20 inch
Main Engine 1,193 kW Cummins engine
Rotate speed 1,800 r/min
Auxiliary engine power 425 kW Cummins engine
Total power 1,648 kW
Operational Workflow
  • Excavation: Powerful rotating cutter head with cutting teeth loosens bottom materials including mud, clay, and soft rock.
  • Suction: Mud pump creates vacuum to draw loosened material through suction pipe.
  • Transport: Pressurized mud moves through internal piping system.
  • Discharge: Material delivered via pipeline to shore or barges for final placement.
Key Features
  • Continuous high-efficiency operation
  • Versatile material handling from silt to medium-hard rock
  • Long-distance material transport capability
  • Precise depth and grade control
  • Reduced environmental impact through controlled placement
Applications
  • Port and waterway construction
  • Land reclamation and island building
  • Environmental remediation projects
  • Subsea mineral extraction

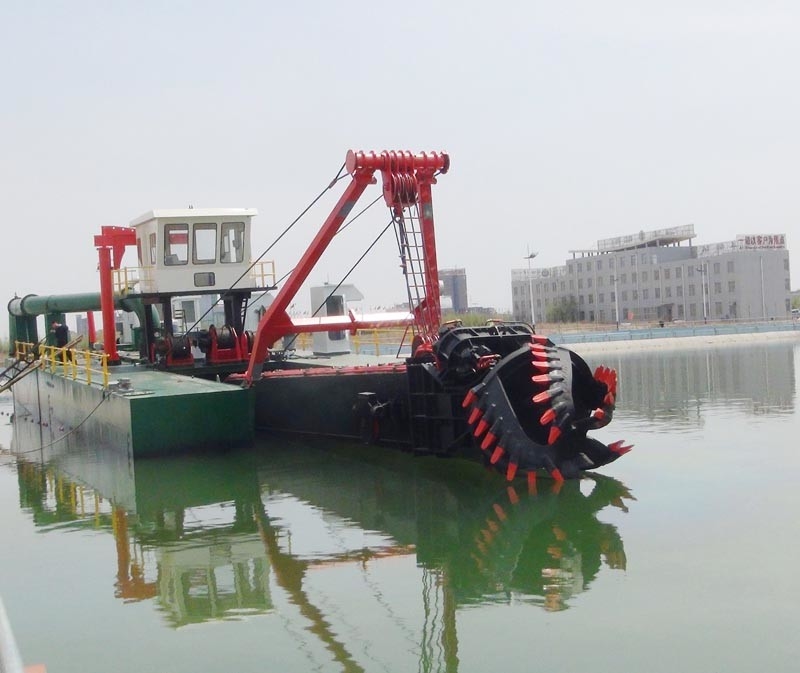

1193 kW 20 Inch Cutter Suction Dredger for Port Dredging 0
