Highlight:

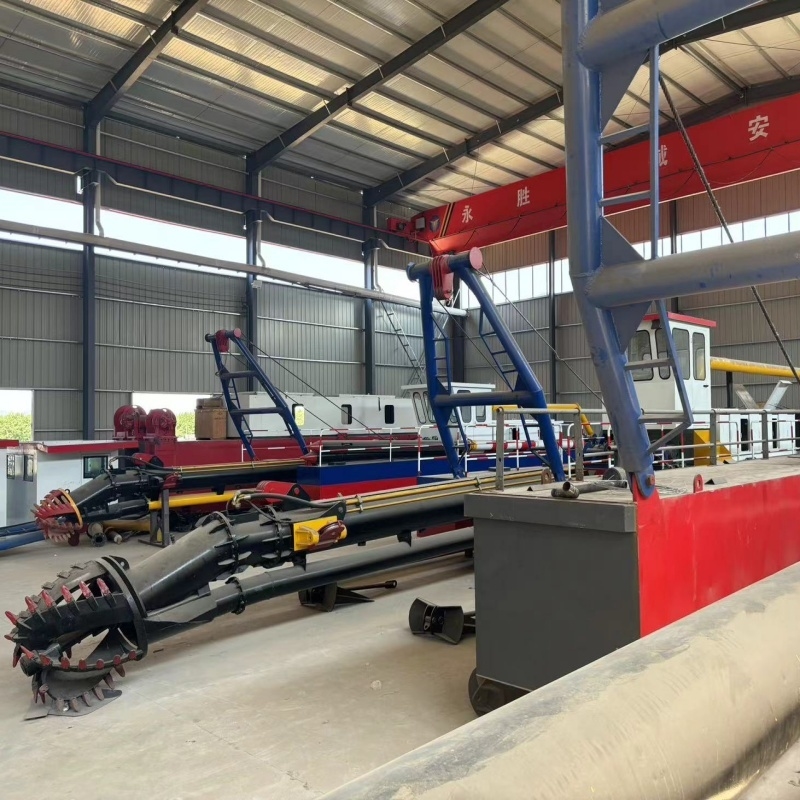

Multifunction Sand Dredger Cutter Suction Dredger With 760 Cbm/H Capacity
The dredger can work for land filling, sand dredging, port deepening, channel dredging and land reclamation.
The design, construction, quality inspection of our cutter suction dredger is based on the standards and
regulations of CCS. The hull, machinery equipment and other spares are at the requirements of CCS as
well. The hull is square, cross keel, which is full welding steel structure, and authorized by CCS.
The dredgers we are producing are diesel engine driven, self-propelled or non self-propelled, portable
hydraulic cutter suction dredgers. The hull uses dismantle and box-like structure, dismantle for shipment
and assembly at working site.
It can also be equipped with anchoring poles and spud carrier to increase capacity.
| Model list for hydraulic cutter suction dredger |
| Model |
Inch |
Diameter
pipe
|
Water
flow
|
Solid
capacity |
Total
power
|
Dredging
depth
|
Discharge
distance
|
| YSCSD150 |
6 Inch |
150 mm |
260 m3/h |
30 cbm/h |
102 KW |
4m |
600 m |
| YSCSD200 |
8 Inch |
200 mm |
600 m3/h |
80 cbm/h |
213 KW |
6m |
800 m |
| YSCSD250 |
10 inch |
250 mm |
1,000 m3/h |
160 cbm/h |
367 KW |
8m |
1,100 m |
| YSCSD300 |
12 inch |
300 mm |
1,500 m3/h |
240 cbm/h |
591 KW |
10 m |
1,100 m |
| YSCSD350 |
14 inch |
350 mm |
2,400 m3/h |
360 cbm/h |
971 KW |
12m |
1,200 m |
| YSCSD400 |
16 Inch |
400 mm |
3,000 m3/h |
500 cbm/h |
1,057 KW |
14m |
1,400 m |
| YSCSD450 |
18 Inch |
450 mm |
3,500 m3/h |
700 cbm/h |
1,462 KW |
15m |
1,500 m |
| YSCSD500 |
20 Inch |
500 mm |
3,800 m3/h |
760 cbm/h |
1,648 KW |
15m |
1,600m |
| YSCSD600 |
24 Inch |
600 mm |
6,000 m3/h |
900 cbm/h |
2,511 KW |
15m |
1,800 m |
| YSCSD650 |
26 Inch |
650 mm |
7,000 m3/h |
1,400 cbm/h |
3,705 KW |
Max.18m |
1,800m |
Product Advantages:
1.It has high sand extraction efficiency and can operate continuously for 20 hours, greatly improving
work efficiency.
2.The depth of sand extraction is large, ranging from 5-20 meters.
3.Strong environmental adaptability, with excellent extraction ability for sand, gravel, sandy soil, granular
dispersed materials or materials prone to collapse.
4. Flexible and convenient operation, easy movement of the hull, and the ability to freely adjust the position
in the work area.
5.The console can centrally control the equipment, making it convenient for operators to start, stop, and
adjust the equipment. It can also monitor the operating status in real time.
afrer sale service:
Normally we offer 12 months warranty and free service after the dredger successfully commissioning and
hand over to customers. We have our own service team which are with mature experience and good knowledge
of dredgers.
And we can also extend offer training,operating,service program with skilled enginees as per your request.
If necessary, we can also extend the warranty&service time with negotiable conditions.
FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
