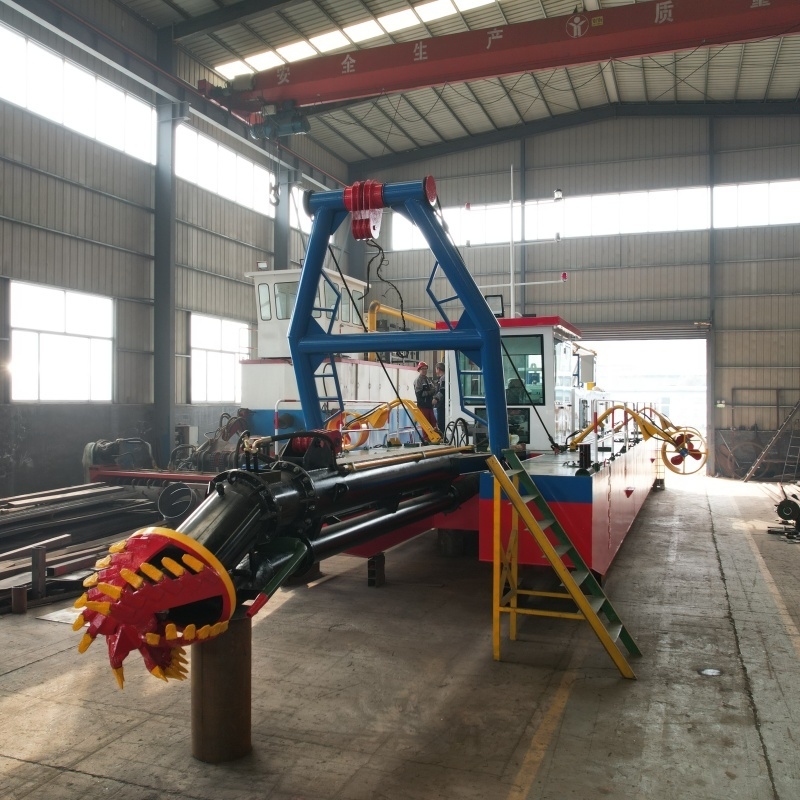

Mud Dredging Boat Sand Dredge With 10m Dredging Depth
1. Our factory cutter suction dredger is widely used for river lake port and inside waterways etc.
Cutter suction dredger can process sand mud gravel from all kinds of dredging project.
2. Our factory cutter suction dredger adopts good quality device to achieve the highest performance .
3. Let the customer spends the lowest cost to get the highest profit configuration of cumins diesel
engine ( otherwise can provide carter Weichai and others diesel engine brand) Shijiazhuang slurry
pump and hydraulic pump from the America or Germany. All configurations can reach the low failure
low fuel consumption high capacity and high efficiency.
| Model list for hydraulic cutter suction dredger |
| Model |
Inch |
Diameter
pipe
|
Water
flow
|
Solid
capacity |
Total
power
|
Dredging
depth
|
Discharge
distance
|
| YSCSD150 |
6 Inch |
150 mm |
260 m3/h |
30 cbm/h |
102 KW |
4m |
600 m |
| YSCSD200 |
8 Inch |
200 mm |
600 m3/h |
80 cbm/h |
213 KW |
6m |
800 m |
| YSCSD250 |
10 inch |
250 mm |
1,000 m3/h |
160 cbm/h |
367 KW |
8m |
1,100 m |
| YSCSD300 |
12 inch |
300 mm |
1,500 m3/h |
240 cbm/h |
591 KW |
10 m |
1,100 m |
| YSCSD350 |
14 inch |
350 mm |
2,400 m3/h |
360 cbm/h |
971 KW |
12m |
1,200 m |
| YSCSD400 |
16 Inch |
400 mm |
3,000 m3/h |
500 cbm/h |
1,057 KW |
14m |
1,400 m |
| YSCSD450 |
18 Inch |
450 mm |
3,500 m3/h |
700 cbm/h |
1,462 KW |
15m |
1,500 m |
| YSCSD500 |
20 Inch |
500 mm |
3,800 m3/h |
760 cbm/h |
1,648 KW |
15m |
1,600m |
| YSCSD600 |
24 Inch |
600 mm |
6,000 m3/h |
900 cbm/h |
2,511 KW |
15m |
1,800 m |
| YSCSD650 |
26 Inch |
650 mm |
7,000 m3/h |
1,400 cbm/h |
3,705 KW |
Max.18m |
1,800m |
The main structure of a cutter suction dredger includes the hull, cutter, suction pipe, pump body,
and discharge pipe.
The cutter is a key component of a cutter suction dredger, usually installed at the bow or side of
the ship. By rotating the cutter, the sediment at the bottom of the water is crushed and mixed with
water to form mud. The suction pipe is used to suck mud into the pump body, which transports the
mud to the discharge area through the discharge pipe.
We can make the different pump capacity dredger, like 300m3/h-7000m3/h.
You can choose the proper dredging depth,like 5m-15m.
The dredger we make can discharge different distance, like 100m-3000m.
The dredger we make is in accordance with the customer requirements and the dredging environments.
So it adopts all the dredging site.
FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
