20inch Hydraulic Cutter Suction Dredger with 15m Dredging Depth
product description
Cutter suction dredger is an efficient and continuous underwater excavation vessel, widely used in port channel
dredging, land reclamation, river and lake management, coastal maintenance and other projects. Its core feature
is to break up the underwater soil with a rotating auger, and then use the negative pressure generated by the mud
pump to transport the mud mixture to the designated area through a pipeline.
product parameters
|
YSCSD500 solid capacity 900 cbm/h hydraulic cutter suction dredger
|
|
Technical specifications
|
|
Water flow
|
4,800 m3/h
|
|
Solid capacity
|
900 cbm/h
|
|
Max. dredging depth 45°
|
15 m
|
|
Discharge distance
|
1,600 m
|
|
LOA
|
47 m
|
|
Dredger after assembly
|
47*8.8*2 .5m Length* width* depth
|
|
Dredger structure
|
Dismantle type and can be assembly in working site
|
|
Average draught
|
1.6 m
|
|
Diameter discharge pipe
|
500mm/20 inch
|
|
Main Engine
|
1,193 kw Cummins engine
|
|
Rotate speed
|
1800 r/min
|
|
Auxiliary engine power
|
425 kw Cummins engine
|
|
Generator
|
30 kw
|
|
Hydraulic cutter power
|
220 kw
|
|
Total power
|
1,648 kw
|
Workflow
Positioning: Use anchors, piles or DP systems to accurately position the ship to the starting point of
excavation.
Lowering the bridge: Lower the bridge with the auger head and the mud suction pipe to the underwater
excavation surface.
Start the auger and mud pump: The auger rotates to break the soil layer, and the mud pump works at the
same time to generate suction.
Suction of mud: The soil broken and loosened by the auger is mixed with water to form mud and sucked
into the mud suction pipe.

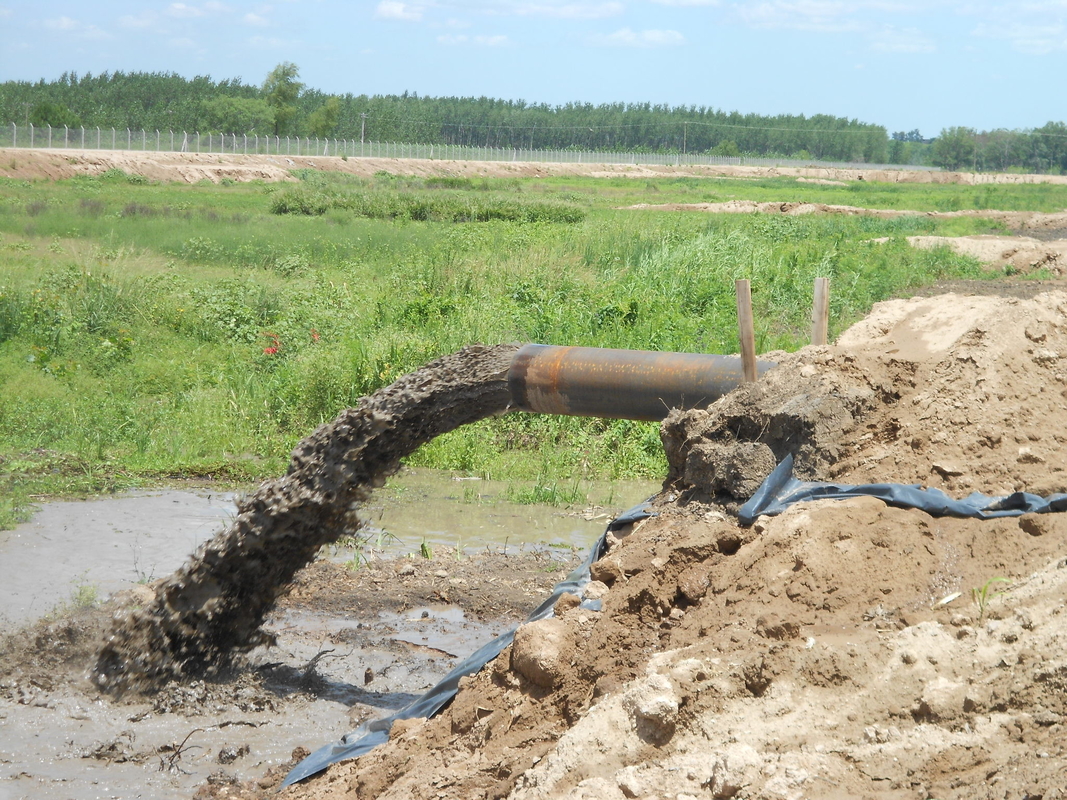

Transporting mud: The mud pump pressurizes the sucked mud and transports it to the designated area
through the mud discharge pipe (such as forming land in the filling area, or discharging it into the deep water
mud dumping area).
Mobile excavation: By retracting and releasing the anchor cable (anchoring system) or swinging the bridge
(pile positioning system), the hull or excavation head moves along the predetermined trajectory (such as fan-
shaped, parallel lines) to carry out continuous and strip-shaped excavation.
Lifting the bridge: When an area is excavated or needs to be transferred, the bridge is lifted.
Technical features
Efficient and continuous operation: The cutter suction dredger can work 24 hours a day, and its efficiency
is far higher than that of grab or chain bucket dredgers.
Adapt to complex geology: By replacing the auger head, it can cope with soil layers of different hardness
and even break rocks.
Environmental protection: It can control the spread of mud and reduce the impact on the water ecology.
High degree of automation: Modern ships are equipped with intelligent control systems to monitor dredging
depth, concentration and other parameters in real time.
