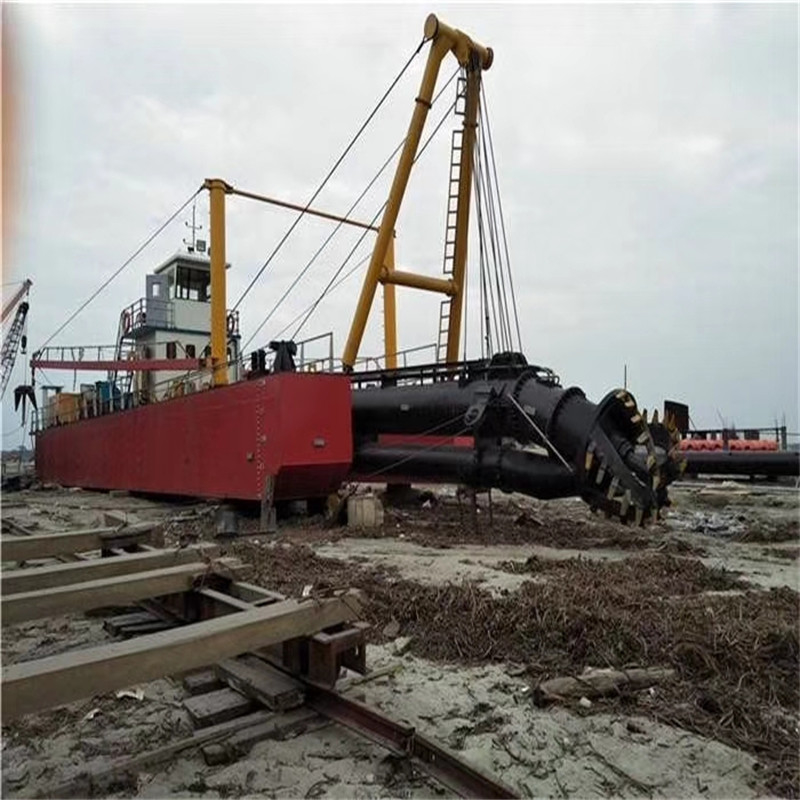

10 Inch Cutter Mud Dredger For Port River Dredging

Name: 10 Inch Cutter Mud Dredger For Port River Dredging
Brand: Shandong Yongsheng Dredging Machinery Co., Ltd.
SKU: csd250
Price: 118015 USD
Availability: InStock

Product Details

Place of Origin: china

Brand Name: yongsheng

Model Number: csd250

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 118015usd/piece

Packaging Details: Container

Delivery Time: 60 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Customized:	Customized	Condition:	New
Warranty:	1 Year	Water Flow:	800-1000m3/h
Solid Capacity:	160 Cbm/h	Max.Dredging Depth 45°:	8m
Discharge Distance:	1100 M	Dredger After Assembly:	23.54.81.25m Lengthwidthdepth
Dredger Structure:	Can Be Assembly In Working Site	Average Draught:	0.8m
Diameter Discharge Pipe:	250mm/10inch	Total Power:	367 Kw
Main Engine:	261 Kw	Auxiliary Engine Power:	90kw
Generator:	16 Kw	Hydraulic Cutter Powerr:	37 Kw

Customized:	Customized
Condition:	New
Warranty:	1 Year
Water Flow:	800-1000m3/h
Solid Capacity:	160 Cbm/h
Max.Dredging Depth 45°:	8m
Discharge Distance:	1100 M
Dredger After Assembly:	23.54.81.25m Lengthwidthdepth
Dredger Structure:	Can Be Assembly In Working Site
Average Draught:	0.8m
Diameter Discharge Pipe:	250mm/10inch
Total Power:	367 Kw
Main Engine:	261 Kw
Auxiliary Engine Power:	90kw
Generator:	16 Kw
Hydraulic Cutter Powerr:	37 Kw

Product Description

10 Inch Cutter Mud Dredger For Port River Dredging

 Hydraulic cutter suction dredger uses the rotary cutter head in the front of the suction pipe to

cut and stir the solids in the river bottom. In this process the slurry concentration will reach a

satisfactory ratio so that the powerful pump could suck and discharge the mixed slurry to the

designated location by discharge pipe. The series of cutting, suction, transporting and discharging

actions could be finished continuously one time.

1 - High Efficiency: Utilizing advanced cutter suction technology, the dredging process involves

the use of a long, slender displacement pipe to reach the bottom of the waterbody, quickly sucking

the sediment into the pipe.
2 - Stability: Equipped with an automatic control system, the equipment ensures efficient and stable

operation even in complex working conditions.
3 - Strong Adaptability: Suitable for various water depths and bottom materials, meeting the dredging

requirements of different projects.
4. Application Scenarios:
- River Dredging
- Port Construction
- Channel Dredging
- Lake Cleaning
- Underwater Tunneling, and more

Model list for hydraulic cutter suction dredger
Model	Inch	Diameter pipe	Water flow	Solid capacity	Total power	Dredging depth	Discharge distance
YSCSD150	6 Inch	150 mm	260 m3/h	30 cbm/h	102 KW	4m	600 m
YSCSD200	8 Inch	200 mm	600 m3/h	80 cbm/h	213 KW	6m	800 m
YSCSD250	10 inch	250 mm	1,000 m3/h	160 cbm/h	367 KW	8m	1,100 m
YSCSD300	12 inch	300 mm	1,500 m3/h	240 cbm/h	591 KW	10 m	1,100 m
YSCSD350	14 inch	350 mm	2,400 m3/h	360 cbm/h	971 KW	12m	1,200 m
YSCSD400	16 Inch	400 mm	3,000 m3/h	500 cbm/h	1,057 KW	14m	1,400 m
YSCSD450	18 Inch	450 mm	3,500 m3/h	700 cbm/h	1,462 KW	15m	1,500 m
YSCSD500	20 Inch	500 mm	3,800 m3/h	760 cbm/h	1,648 KW	15m	1,600m
YSCSD600	24 Inch	600 mm	6,000 m3/h	900 cbm/h	2,511 KW	15m	1,800 m
YSCSD650	26 Inch	650 mm	7,000 m3/h	1,400 cbm/h	3,705 KW	Max.18m	1,800m

10 Inch Cutter Mud Dredger For Port River Dredging 0

10 Inch Cutter Mud Dredger For Port River Dredging 1

10 Inch Cutter Mud Dredger For Port River Dredging 2

10 Inch Cutter Mud Dredger For Port River Dredging 3

Our Service Gaurantee:

* Long-time after-sales service
* Rational and practical design according to customers' request
* Field site service
* Within warranty period, free repair if quality problems emerge.
* Free training of operation and maintenance.
* Supply high quality accessories in low price.
* We make an excellent filing of customers for long-term following-up service.
10 Inch Cutter Mud Dredger For Port River Dredging 4
