16 inch jet suction dredger
, 882 kW jet suction dredger
, lakes jet suction dredger

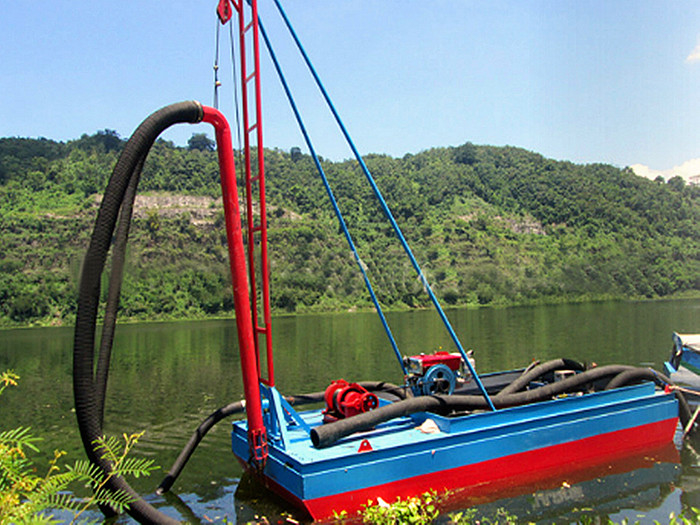

16 inch jet suction dredger main engine 882 kW dredger for lakes
product description
The suction jet dredger is a high-efficiency hydraulic sand mining equipment that loosens underwater sediments through high-pressure
water jets and uses the negative pressure suction principle to transport the sediment mixture to the target area. It is widely used in
dredging, mining, reclamation and other engineering fields.
Core working principle
Jet crushing system
The high-pressure water pump generates high-speed water flow, which is ejected through the nozzle to impact the riverbed/seabed,
breaking and fluidizing the dense mud layer.
Negative pressure suction system
The centrifugal mud pump (flow range 100~5000m³/h) forms negative pressure at the sand suction pipe mouth and sucks the water-
sand mixture into the pipeline.
Transportation system
The mud is transported to the onshore yard or transport ship through the floating pipe or sand discharge pipe, and the maximum
transportation distance can reach 1~5km (depending on the power).
product parameters
|
Model
|
Capacity
|
Water flow
|
Dredging depth
|
Discharge distance
|
Main engine
|
Auxiliary engine
|
Fuel consumption
|
Dimension(L*W*H)
|
|
YSJSD150
|
40-50m3/h
|
250m3/h
|
6m
|
500m
|
120KW
|
/
|
18L/H
|
10*3.8*1
|
|
YSJSD200
|
80-100m3/h
|
500m3/h
|
8m
|
500m
|
176KW
|
60KW
|
40L/H
|
14*4.5*1.2m
|
|
YSJSD250
|
150-180m3/h
|
900m3/h
|
10m
|
800m
|
294KW
|
88KW
|
60L/H
|
17*5*1.2m
|
|
YSJSD300
|
200-250m3/h
|
1400m3/h
|
10m
|
1000m
|
456KW
|
110KW
|
80L/H
|
20*6*1.5m
|
|
YSJSD350
|
300-400m3/h
|
2000m3/h
|
12m
|
1500m
|
735KW
|
220KW
|
120L/H
|
24*6.6*1.6m
|
|
YSJSD400
|
400-500m3/h
|
2600m3/h
|
14m
|
1500m
|
882KW
|
330KW
|
150L/H
|
24*7.2*1.8m
|
|
YSJSD450
|
500-600m3/h
|
3000m3/h
|
14m
|
1500m
|
1103KW
|
406KW
|
200L/H
|
26*7.6*2m
|
|
YSJSD500
|
600-700m3/h
|
3800m3/h
|
14m
|
1500m
|
1250KW
|
456KW
|
240L/H
|
26*7.6*2m
|
The above technical parameters are for reference only,specific device configuration depends on the conditions of each
project,customer and technical requirements.
Applications
River/port dredging: remove sediment deposits to ensure the navigability of waterways.
Sand mining: mine river sand and sea sand for construction or land reclamation.
Mine tailings recovery: extract useful particles from metal slag.
Ecological governance: clean up polluted sediment and repair the water environment.
Reclamation: transport sediment to the reclamation area to expand the land area.
Advantages
Efficient and flexible: suitable for shallow water, deep water and complex terrain, with a wide range of operations.
Low cost: simple structure, lower energy consumption than bucket or suction dredgers.
Environmental protection: reduce sediment disturbance and reduce the impact on aquatic ecology (with environmental protection
design).
Easy to maintain: no complex mechanical parts, low failure rate.
company profile
Shandong yongsheng dredging machinery Co.,LTD.is located in Huanglou Street, Qingzhou City, Shandong Province,
China. It has 2 production bases , total area near 2000m2, and more than 20 years manufacturing experience in water
area environmental protective equipment. It is a professional supplier of integrated with R&D, consultation, manufacturing
and after-sale service. Yongsheng now has obtained certification: ISO9001.
