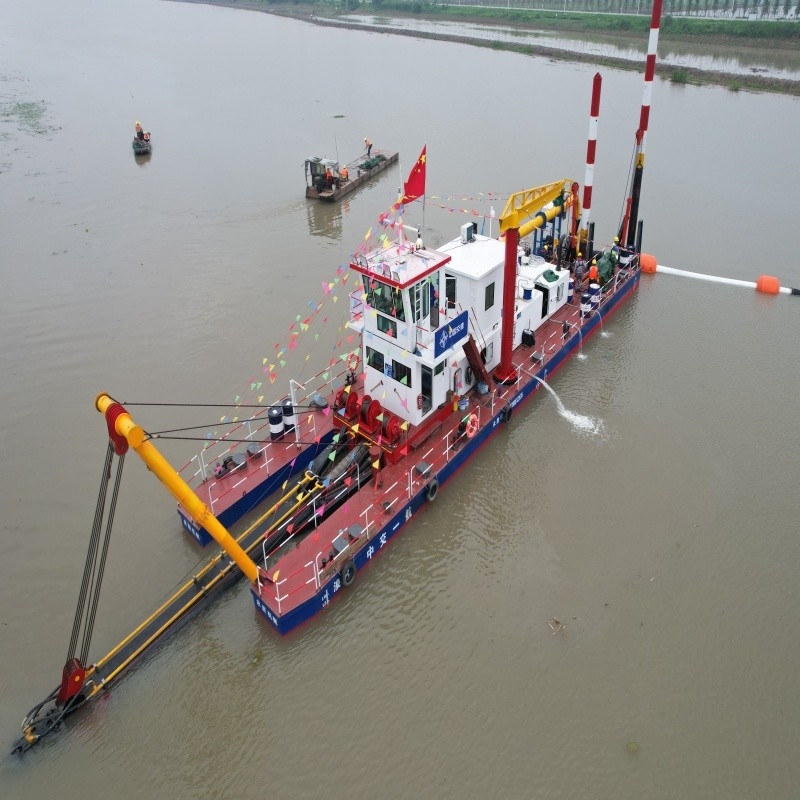

20 Inch Mud Dredger Equipment For Sale
1. General Introduction.
With rich experience in dredgers production, shandong yongsheng dredging machinery Co., Ltd, mainly
manufactures small and middle sized cutter suction dredgers. Based on the idea of creating values for
customers with high-quality products and service, yongsheng keeps continuous development and innovation
and provides customers with best cost-effective products.
yongsheng dredgers are of modular structure which is convenient for the disassembly and transportation.
Other characteristics include reasonable design, easy operation, long duration and running continuity.
The dredger can be widely used for maintenance dredging, infrastructure dredging, environmental-friendly
dredging and sand mining etc.
| Model list for hydraulic cutter suction dredger |
| Model |
Inch |
Diameter
pipe
|
Water
flow
|
Solid
capacity |
Total
power
|
Dredging
depth
|
Discharge
distance
|
| YSCSD150 |
6 Inch |
150 mm |
260 m3/h |
30 cbm/h |
102 KW |
4m |
600 m |
| YSCSD200 |
8 Inch |
200 mm |
600 m3/h |
80 cbm/h |
213 KW |
6m |
800 m |
| YSCSD250 |
10 inch |
250 mm |
1,000 m3/h |
160 cbm/h |
367 KW |
8m |
1,100 m |
| YSCSD300 |
12 inch |
300 mm |
1,500 m3/h |
240 cbm/h |
591 KW |
10 m |
1,100 m |
| YSCSD350 |
14 inch |
350 mm |
2,400 m3/h |
360 cbm/h |
971 KW |
12m |
1,200 m |
| YSCSD400 |
16 Inch |
400 mm |
3,000 m3/h |
500 cbm/h |
1,057 KW |
14m |
1,400 m |
| YSCSD450 |
18 Inch |
450 mm |
3,500 m3/h |
700 cbm/h |
1,462 KW |
15m |
1,500 m |
| YSCSD500 |
20 Inch |
500 mm |
3,800 m3/h |
760 cbm/h |
1,648 KW |
15m |
1,600m |
| YSCSD600 |
24 Inch |
600 mm |
6,000 m3/h |
900 cbm/h |
2,511 KW |
15m |
1,800 m |
| YSCSD650 |
26 Inch |
650 mm |
7,000 m3/h |
1,400 cbm/h |
3,705 KW |
Max.18m |
1,800m |
Feature
● Heavy-duty, high concentration ratio, excellent particle allowance, and long discharge distance
● Optimal configuration of power and hydraulic unit (less operating costs)
● Dismountable structure, easy to disassemble, and transportation.
● Double powerful auger drive (infinitely for- and backward)
● High working range of the outrigger arm
● Equipped with a self-propulsion system that can be moved to a different work site or drag by tugboat
● Cutter suction head can be changed for different situation
● Easy access to all parts, especially the dredge pump wearing parts.
● Freshwater cooling system.
● Safe and easy to operate
● Can be designed and fabricated according to your requirements
