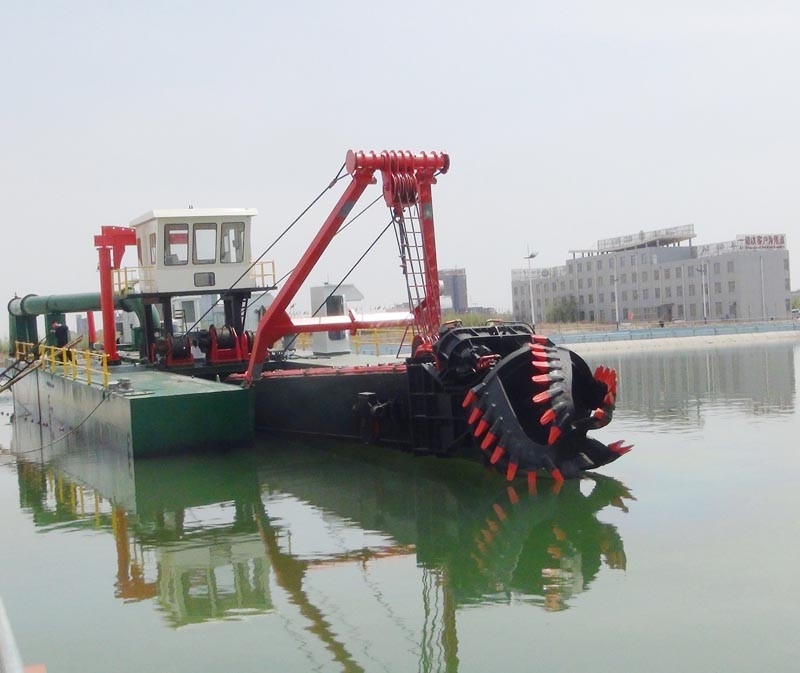

Customizable Cutter Suction Dredger for Waterway Maintenance
product description
As essential equipment in dredging projects, the cutter suction dredger plays a pivotal role in waterway
maintenance, port construction, land reclamation, and hydraulic engineering. Its unique working principle,
high operational efficiency, and broad applicability make it one of the preferred choices for underwater
excavation and dredging operations.
product parameters
|
YSCSD450 solid capacity 700 cbm/h hydraulic cutter suction dredger
|
|
Technical specifications
|
|
Water flow
|
3,500 m3/h
|
|
Solid capacity
|
700 cbm/h
|
|
Max. dredging depth 45°
|
15 m
|
|
Discharge distance
|
1,500 m
|
|
LOA
|
43.5 m
|
|
Dredger after assembly
|
43.5*7.5*2 m Length* width* depth
|
|
Dredger structure
|
Dismantle type and can be assembly in working site
|
|
Average draught
|
1.2 m
|
|
Diameter discharge pipe
|
450mm/18 inch
|
|
Main Engine
|
1,007 kw Cummins engine
|
|
Rotate speed
|
1800 r/min
|
|
Auxiliary engine power
|
425 kw Cummins engine
|
|
Generator
|
30 kw
|
|
Hydraulic cutter power
|
160 kw
|
|
Total power
|
1,057 kw
|
Working Principle
The cutter suction dredger primarily accomplishes dredging tasks through the coordinated operation of
a cutter device and a dredge pump. The ladder frame at the bow extends below the water surface, where
the rotating cutter head—powered by a drive system—cuts and agitates underwater sediments, loosening
compacted soil, sand, or even rock layers. Simultaneously, the onboard dredge pump generates strong
suction pressure, drawing the loosened slurry through the suction pipe and transporting it via discharge
pipelines over distances ranging from hundreds to thousands of meters to designated areas, such as s
poil grounds or reclamation sites. This integrated process—excavation, transportation, and discharge—
is completed seamlessly without requiring additional vessels for intermediate transfers, significantly
enhancing operational efficiency.
Main equipment on the dredger:
——Cutter head and driving system
—— Frame of cutter head
——Frame of ladder A
——lifting winch for sand suction pipe
——Right and left traversing winches
——Operating room
——Dredging pump
——Deck crane
——Gearbox of dredging pump
——Main diesel oil engine and auxiliary diesel oil engine
company profile
Shandong yongsheng dredging machinery Co.,LTD.is located in Huanglou Street, Qingzhou City, Shandong
Province, China. It has 2 production bases , total area near 2000m2, and more than 20 years manufacturing
experience in water area environmental protective equipment. It is a professional supplier of integrated with
R&D, consultation, manufacturing and after-sale service. Yongsheng now has obtained certification: ISO9001.
