Highlight:

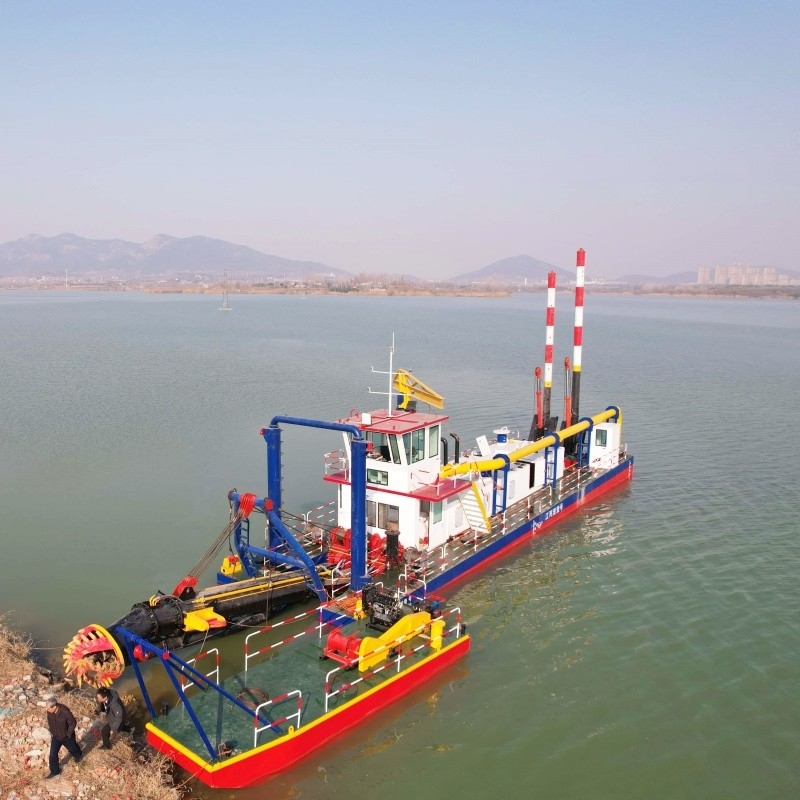

solid capacity 700 cbm/h hydraulic cutter suction dredger for dredging
product description
As the core equipment in modern dredging projects, the Yongsheng Cutter Suction Dredger integrates
German hydraulic systems and Kawasaki Heavy Industries' dredge pump technology, achieving an
ultra-high operational efficiency of 4,500 m³/h. Its patented serrated cutter head can break rocks with
hardness up to Class N, combined with an intelligent depth control system (accuracy: ±10 cm), making
it particularly suitable for large-scale port construction and deep-water channel maintenance.
product parameters
|
YSCSD450 solid capacity 700 cbm/h hydraulic cutter suction dredger
|
|
Technical specifications
|
|
Water flow
|
3,500 m3/h
|
|
Solid capacity
|
700 cbm/h
|
|
Max. dredging depth 45°
|
15 m
|
|
Discharge distance
|
1,500 m
|
|
LOA
|
43.5 m
|
|
Dredger after assembly
|
43.5*7.5*2 m Length* width* depth
|
|
Dredger structure
|
Dismantle type and can be assembly in working site
|
|
Average draught
|
1.2 m
|
|
Diameter discharge pipe
|
450mm/18 inch
|
|
Main Engine
|
1,007 kw Cummins engine
|
|
Rotate speed
|
1800 r/min
|
|
Auxiliary engine power
|
425 kw Cummins engine
|
|
Generator
|
30 kw
|
|
Hydraulic cutter power
|
160 kw
|
|
Total power
|
1,057 kw
|
Technical Highlights:
• Modular Design: The hull can be disassembled for transportation, enabling operations in remote areas
• Eco-Friendly Configuration: Equipped with oil-water separators and noise suppression devices
• Remote Monitoring: Supports real-time operational data transmission via satellite
Common Applications
-
Waterway Maintenance: Removing silt to ensure navigability
-
Port Expansion: Dredging basins and foundation trenches
-
Land Reclamation: Pumping sand for coastal development
-
Sand Mining: Extracting riverbed aggregates
