16 Inch Powerful Cutter Suction Dredger For Dredging

Name: 16 Inch Powerful Cutter Suction Dredger For Dredging
Brand: Shandong Yongsheng Dredging Machinery Co., Ltd.
SKU: YSCSD400
Price: 1200000.00 USD
Availability: InStock

Product Details

Place of Origin: shandong

Brand Name: yongsheng

Model Number: YSCSD400

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: container

Delivery Time: 50days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                16 inch Cutter Suction Dredger, Dredging Cutter Suction Dredger, Powerful Cutter Suction Dredger


Diameter Pipe:	400mm	Water Flow:	2500-3000 M3/h
Solid Capacity:	500 Cbm/h	Main Engine:	746 Kw Cummins Engine
Max. Dredging Depth 45°:	14 M	Discharge Distance:	1,400 M

Diameter Pipe:	400mm
Water Flow:	2500-3000 M3/h
Solid Capacity:	500 Cbm/h
Main Engine:	746 Kw Cummins Engine
Max. Dredging Depth 45°:	14 M
Discharge Distance:	1,400 M

Product Description

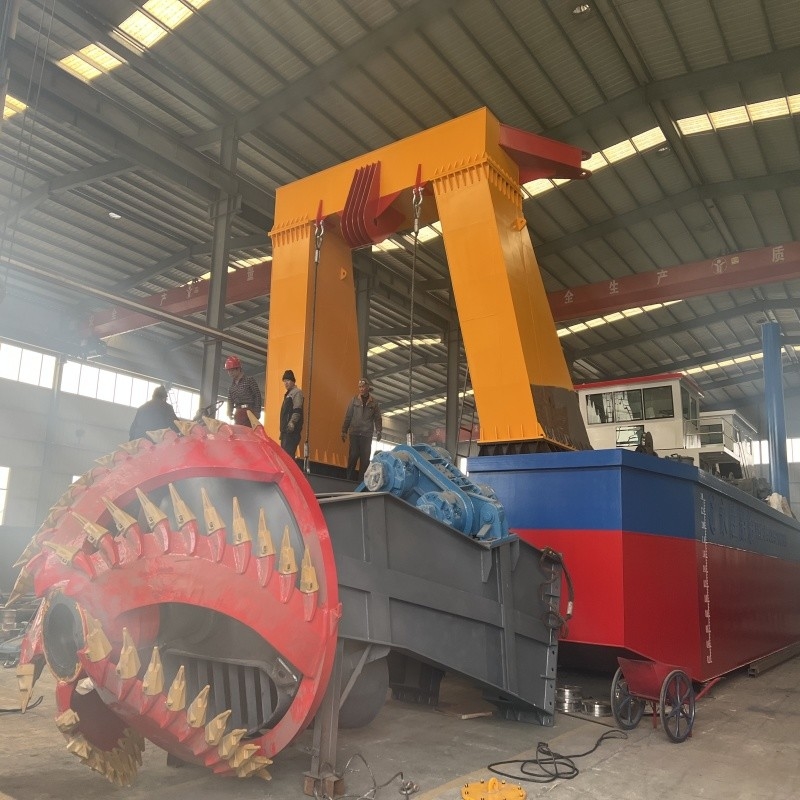

16 inch Powerful Cutter Suction Dredger for Dredging

product description

The cutter suction dredger is a highly efficient underwater excavation equipment. It utilizes a rotating

cutter head to loosen underwater sediments, while a powerful dredge pump transports the mixture

through pipelines to designated areas. This equipment is widely used in channel dredging, port

construction, land reclamation, and other marine engineering projects.

product parameters

*YSCSD400* solid capacity 500 cbm/h hydraulic cutter suction dredger**
Technical specifications
Water flow	2500-3000 m3/h
Solid capacity	500 cbm/h
Max. dredging depth 45°	14 m
Discharge distance	1,400 m
LOA	41 m
Dredger after assembly	416.81.8 m Length* width* depth
Dredger structure	Dismantle type and can be assembly in working site
Average draught	1.1 m
Diameter discharge pipe	400mm/16inch
Main Engine	746 kw Cummins engine
Rotate speed	1800 r/min
Auxiliary engine power	287 kw Cummins engine
Generator	16 kw
Hydraulic cutter power	120 kw
Total power	1,057 kw
