16 Inch Sand Mud Dredger Vessel For Sale

Name: 16 Inch Sand Mud Dredger Vessel For Sale
Brand: Shandong Yongsheng Dredging Machinery Co., Ltd.
SKU: csd400
Price: 349324 USD
Availability: InStock

Product Details

Place of Origin: china

Brand Name: yongsheng

Model Number: csd400

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 349324usd/piece

Packaging Details: Container

Delivery Time: 60 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Customized:	Customized	Condition:	New
Warranty:	1 Year	Water Flow:	2500-3000 M3/h
Solid Capacity:	500cbm/h	Max.Dredging Depth 45°:	14m
Discharge Distance:	1400m	Dredger After Assembly:	416.81.8m Lengthwidthdepth
Dredger Structure:	Can Be Assembly In Working Site	Average Draught:	1.1m
Diameter Discharge Pipe:	400mm/16inch	Total Power:	1057kw
Main Engine:	746kw	Auxiliary Engine Power:	287kw
Generator:	16 Kw	Hydraulic Cutter Powerr:	120 Kw

Customized:	Customized
Condition:	New
Warranty:	1 Year
Water Flow:	2500-3000 M3/h
Solid Capacity:	500cbm/h
Max.Dredging Depth 45°:	14m
Discharge Distance:	1400m
Dredger After Assembly:	416.81.8m Lengthwidthdepth
Dredger Structure:	Can Be Assembly In Working Site
Average Draught:	1.1m
Diameter Discharge Pipe:	400mm/16inch
Total Power:	1057kw
Main Engine:	746kw
Auxiliary Engine Power:	287kw
Generator:	16 Kw
Hydraulic Cutter Powerr:	120 Kw

Product Description

16 Inch Sand Mud Dredger Vessel For Sale

A cutter suction dredger's (CSD) suction tube has a cutting mechanism at the suction inlet. The cutting
mechanism loosens the bed material and transports it to the suction mouth. The dredged material is
usually sucked up by a wear-resistant centrifugal pump and discharged either through a pipe line or to
a barge.Cutter suction dredgers are most often used in geological areas consisting of hard surface
materials (for example gravel deposits or surface bedrock) where a standard suction dredger would be
ineffective. They can, if sufficiently powerful, be used instead of underwater blasting.

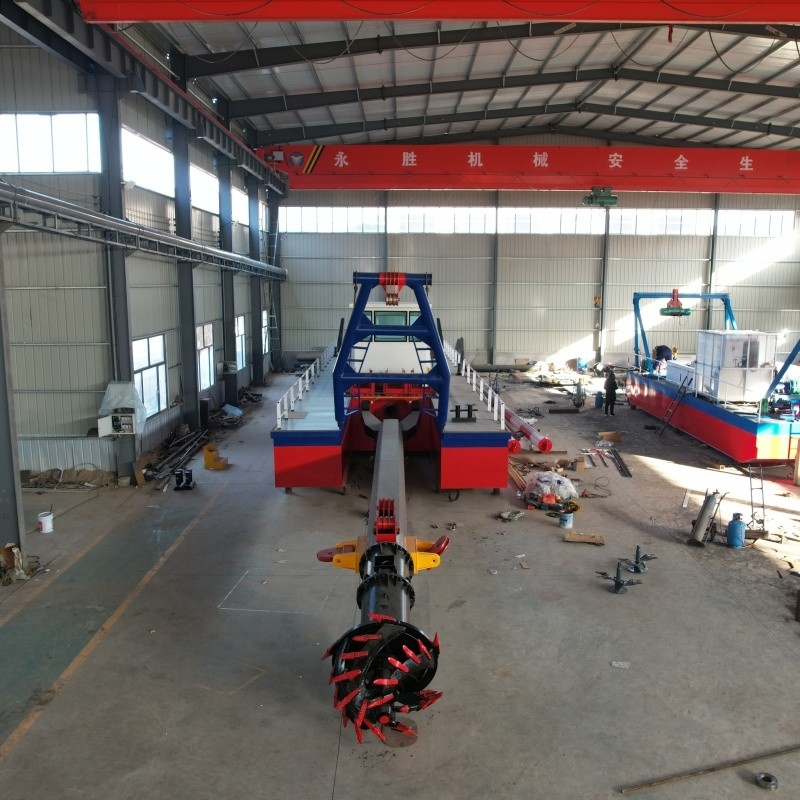

16 Inch Sand Mud Dredger Vessel For Sale 0

Model list for hydraulic cutter suction dredger
Model	Inch	Diameter pipe	Water flow	Solid capacity	Total power	Dredging depth	Discharge distance
YSCSD150	6 Inch	150 mm	260 m3/h	30 cbm/h	102 KW	4m	600 m
YSCSD200	8 Inch	200 mm	600 m3/h	80 cbm/h	213 KW	6m	800 m
YSCSD250	10 inch	250 mm	1,000 m3/h	160 cbm/h	367 KW	8m	1,100 m
YSCSD300	12 inch	300 mm	1,500 m3/h	240 cbm/h	591 KW	10 m	1,100 m
YSCSD350	14 inch	350 mm	2,400 m3/h	360 cbm/h	971 KW	12m	1,200 m
YSCSD400	16 Inch	400 mm	3,000 m3/h	500 cbm/h	1,057 KW	14m	1,400 m
YSCSD450	18 Inch	450 mm	3,500 m3/h	700 cbm/h	1,462 KW	15m	1,500 m
YSCSD500	20 Inch	500 mm	3,800 m3/h	760 cbm/h	1,648 KW	15m	1,600m
YSCSD600	24 Inch	600 mm	6,000 m3/h	900 cbm/h	2,511 KW	15m	1,800 m
YSCSD650	26 Inch	650 mm	7,000 m3/h	1,400 cbm/h	3,705 KW	Max.18m	1,800m

The main structure of a cutter suction dredger includes the hull, cutter, suction pipe, pump body, and discharge pipe.

The cutter is a key component of a cutter suction dredger, usually installed at the bow or side of the ship. By rotating

the cutter, the sediment at the bottom of the water is crushed and mixed with water to form mud. The suction pipe

is used to suck mud into the pump body, which transports the mud to the discharge area through the discharge pipe.

16 Inch Sand Mud Dredger Vessel For Sale 1

16 Inch Sand Mud Dredger Vessel For Sale 2

16 Inch Sand Mud Dredger Vessel For Sale 3

Our Services
a. Design the dredger based on the customer's detailed requirements such as ( clear water flow per hour,
dredge depth, discharge distance and engine brand<we can support Weichai,Cummins,Caterpillar>)
b. supply one year's guarantee for the whole dredger except the wear spare parts.
c. supply after-sales installation, trial operation, training the operators, maintence and other services.
