Highlight:
Mud Cutter Suction Dredger
, Sand Cutter Suction Dredger
, Customized Cutter Suction Dredger
Customized Cutter Suction Dredging dredger for Mud/Sand Removal
Overview

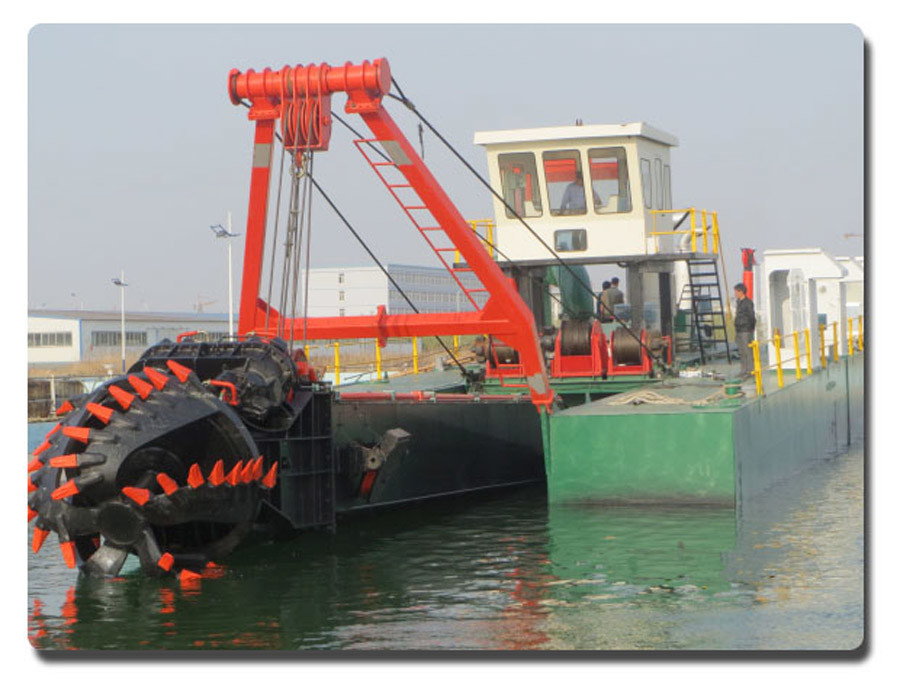

A Cutter Suction Dredger (CSD) is a versatile marine vessel designed for excavation and sediment removal in
rivers, lakes, ports, and coastal areas. Equipped with a rotating cutter head and powerful suction pump, it cuts
and absorbs underwater materials (sand, mud, clay) through pipelines to a designated disposal site.
parameters
|
Model list for hydraulic cutter suction dredger
|
|
Model
|
Inch
|
Diameter pipe
|
Water flow
|
Solid capacity
|
Total power
|
Dredging depth
|
Discharge
distance
|
|
YSCSD150
|
6 Inch
|
150 mm
|
260 m3/h
|
30 cbm/h
|
102 KW
|
4 m
|
600 m
|
|
YSCSD200
|
8 Inch
|
200 mm
|
600 m3/h
|
80 cbm/h
|
213 KW
|
6 m
|
800 m
|
|
YSCSD250
|
10 inch
|
250 mm
|
1,000 m3/h
|
160 cbm/h
|
367 KW
|
8 m
|
1,100 m
|
|
YSCSD300
|
12 inch
|
300 mm
|
1,500 m3/h
|
240 cbm/h
|
591 KW
|
10 m
|
1,100 m
|
|
YSCSD350
|
14 inch
|
350 mm
|
2,400 m3/h
|
360 cbm/h
|
971 KW
|
12 m
|
1,200 m
|
|
YSCSD400
|
16 Inch
|
400 mm
|
3,000 m3/h
|
500 cbm/h
|
1,057 KW
|
14 m
|
1,400 m
|
|
YSCSD450
|
18 Inch
|
450 mm
|
3,500 m3/h
|
700 cbm/h
|
1,462 KW
|
15 m
|
1,500 m
|
|
YSCSD500
|
20 Inch
|
500 mm
|
3,800 m3/h
|
760 cbm/h
|
1,648 KW
|
15 m
|
1,600m
|
|
YSCSD600
|
24 Inch
|
600 mm
|
6,000 m3/h
|
900 cbm/h
|
2,511 KW
|
15 m
|
1,800 m
|
|
YSCSD650
|
26 Inch
|
650 mm
|
7,000 m3/h
|
1,400 cbm/h
|
3,705 KW
|
Max.18m
|
1,800m
|
Applications
Urban Waterways: Clean polluted sludge without disrupting city life.
Aquatic Habitat Restoration: Remove invasive sediments while protecting fish/spawning grounds.
Industrial Pond Cleaning: Safely dredge toxic waste (e.g., heavy metals) for treatment.
company profile
Shandong yongsheng dredging machinery Co.,LTD.is located in Huanglou Street, Qingzhou City,
Shandong Province, China. It has 2 production bases , total area near 2000m2, and more than 20
years manufacturing experience in water area environmental protective equipment. It is a professional
supplier of integrated with R&D, consultation, manufacturing and after-sale service. Yongsheng now
has obtained certification: ISO9001.
Why Choose Our Eco-CSD?
Certifications: EU CE & IMO Green Dredging Guidelines.
Customization: Add spill sensors or solar-powered auxiliary systems.
Global Compliance: Meets strict regulations (e.g., US EPA, China MEE).
