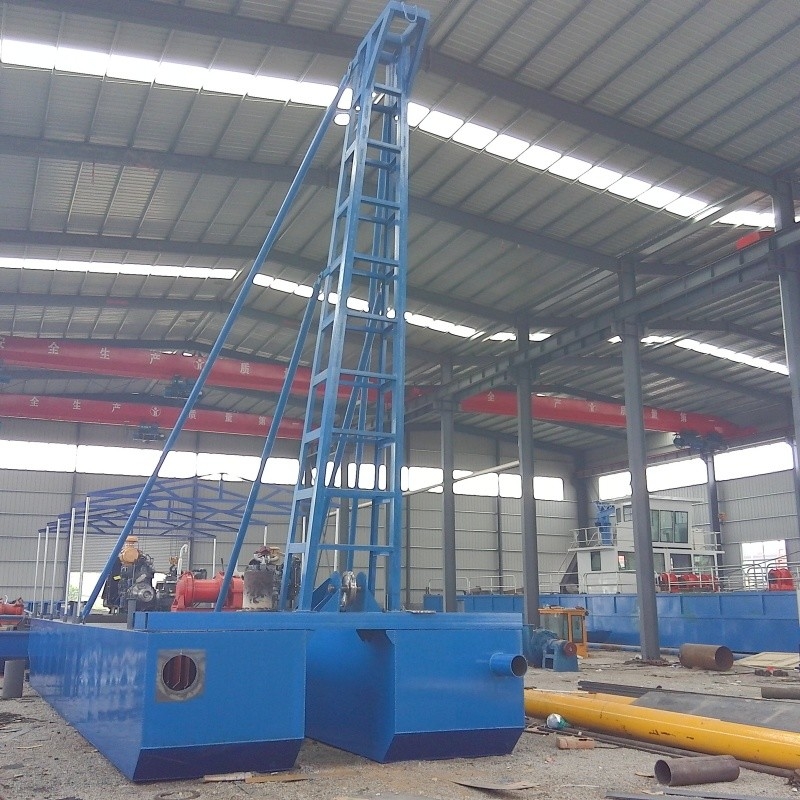

Long Lifespan 200mm Jet Suction Dredger 80-100m3/H

Premium Quality Jet Suction Dredger with Long Lifespan and After Sales Support

product description

The jet suction dredger is a highly efficient underwater dredging equipment, which is widely used in river dredging, port

expansion, sea reclamation, sand mining and other projects. Its core principle is to use high-pressure water jets to impact

the riverbed to liquefy the silt, and then use the negative pressure suction of the sand pump to transport the mud to the

designated area. Compared with traditional mechanical dredgers, the jet suction dredger has the advantages of high

operating efficiency, strong adaptability and low maintenance cost.

Working principle
The core working process of the suction sand pumping ship includes:

High-pressure jet liquefaction: The high-pressure water pump generates pressurized water, which is sprayed by a water

gun to impact the sand, causing it to disintegrate and form mud

Vacuum suction: The sand pump forms negative pressure at the suction port, and the mud is sucked into the conveying

system through the sand suction pipe

Sediment transportation: The mud is transported to the designated area through the pipeline, such as the sand tank, the

shore or the filling area

Some models are also equipped with a self-unloading function, which can directly unload sand through the bottom hatch

of the ship

product parameters

The above technical parameters are for reference only,specific device configuration depends on the conditions of each

project,customer and technical requirements.

Application
River management: remove silt and restore navigation capacity.

Port expansion: dredging deep water areas to meet the berthing needs of large ships.

Land reclamation: pumping sand and filling for airport and industrial zone construction (such as Dubai Palm Island).

Sand mining: extracting gold, tin, titanium and other mineral resources from riverbeds or seabeds.

Environmental dredging: removing polluted sediments
