8 Inch Cutter Suction Dredger
, Land Reclamation Cutter Suction Dredger
, Sand Mining Cutter Suction Dredger
High-Capacity Cutter Suction Dredger For Land Reclamation Sand Mining

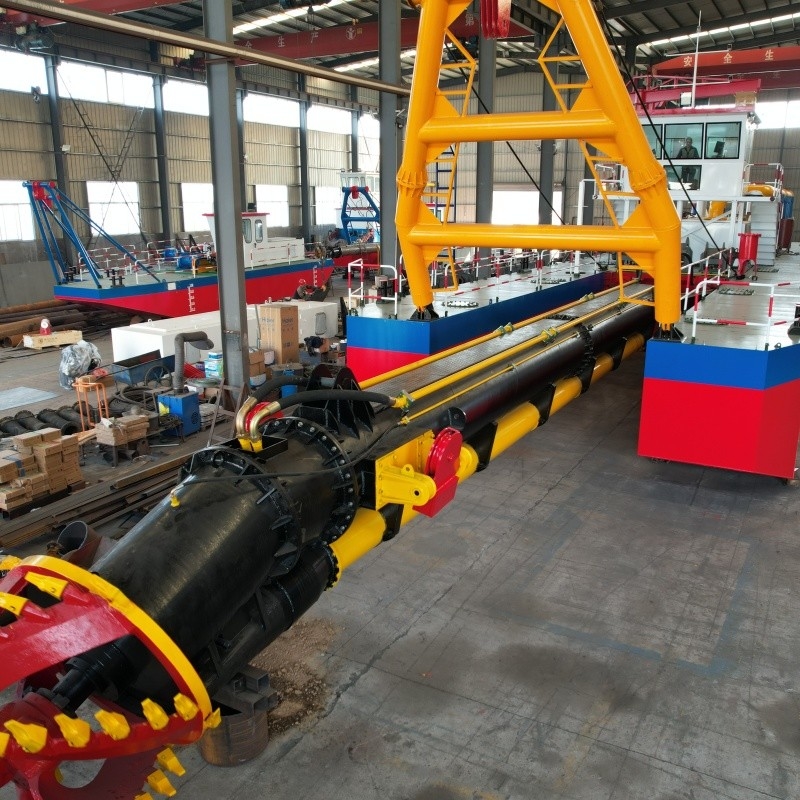

Cutter suction dredger makes use of a cutter head to loosen the material to be dredged and pumps the dredged material
via a pipeline ashore or into barges. The powerful cutter swings around the spud-pole powered by winches while dredging,
then the high-pressure sand pump sucks up the loosened mixed materials to the destination through the suction pipe.
The hydraulic cutter suction dredger is suitable for heavy-duty and durable dredging operations with dismountable structures.
The cutter suction dredger is currently a widely used high efficient working ship for dredging project, which integrated with
dredging, transporting and unloading. It can be used in ports, waterways, rivers, lakes, ponds, lagoons and sea areas.
It can also be used for hydraulic fill operations.
| Model list for hydraulic cutter suction dredger |
| Model |
Inch |
Diameter pipe |
Water flow |
Solid
capacity |
Total power |
Dredging depth |
Discharge distance |
| YSCSD150 |
6 Inch |
150 mm |
260 m3/h |
30 cbm/h |
102 KW |
4m |
600 m |
| YSCSD200 |
8 Inch |
200 mm |
600 m3/h |
80 cbm/h |
213 KW |
6m |
800 m |
| YSCSD250 |
10 inch |
250 mm |
1,000 m3/h |
160 cbm/h |
367 KW |
8m |
1,100 m |
| YSCSD300 |
12 inch |
300 mm |
1,500 m3/h |
240 cbm/h |
591 KW |
10 m |
1,100 m |
| YSCSD350 |
14 inch |
350 mm |
2,400 m3/h |
360 cbm/h |
971 KW |
12m |
1,200 m |
| YSCSD400 |
16 Inch |
400 mm |
3,000 m3/h |
500 cbm/h |
1,057 KW |
14m |
1,400 m |
| YSCSD450 |
18 Inch |
450 mm |
3,500 m3/h |
700 cbm/h |
1,462 KW |
15m |
1,500 m |
| YSCSD500 |
20 Inch |
500 mm |
3,800 m3/h |
760 cbm/h |
1,648 KW |
15m |
1,600m |
| YSCSD600 |
24 Inch |
600 mm |
6,000 m3/h |
900 cbm/h |
2,511 KW |
15m |
1,800 m |
| YSCSD650 |
26 Inch |
650 mm |
7,000 m3/h |
1,400 cbm/h |
3,705 KW |
Max.18m |
1,800m |
Product Features:
1.A wide range of use applications
2.High efficiency, large output, far pump distance, low fuel consumption
3.Full hydraulic control
4.Siemens PLC operation with the operation convenience
5.The modular design enables fast assembly with seniors engineers
6.Dredger components available in factories to allow short delivery times
7.Control the working process of dredging and pumping, delivering dredged materials. lower cost;
8.Follow manufacture guideline: CCS-ZC standard
9.It can pass CE, BV CBS, and more certificates.
10.Dredge brand parts, easy to find globally
Our services:
a. Design the dredger based on the customer's detailed requirements such as ( clear water flow per hour, dredger
depth, discharge distance and engine brand<we can support Weichai,Cummins,Caterpillar>)
b. supply one year's guarantee for the whole dredger except the wear spare parts.
c. supply after-sales installation, trial operation, training the operators, maintence and other services.
FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
