Diesel Engine 400mm Cutter Dredger With Mud Pump

Name: Diesel Engine 400mm Cutter Dredger With Mud Pump
Brand: Shandong Yongsheng Dredging Machinery Co., Ltd.
SKU: YSCSD400
Price: 1200000.00 USD
Availability: InStock

Product Details

Place of Origin: shandong

Brand Name: yongsheng

Model Number: YSCSD400

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: container

Delivery Time: 50days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                400mm Cutter Dredger, Mud Pump Cutter Dredger, Diesel Engine Cutter Dredger


Water Flow:	2500-3000 M3/h	Solid Capacity:	500 Cbm/h
Max. Dredging Depth 45°:	14 M	Discharge Distance:	1,400 M
Dredger After Assembly:	416.81.8 M Length* Width* Depth	Average Draught:	1.1 M

Water Flow:	2500-3000 M3/h
Solid Capacity:	500 Cbm/h
Max. Dredging Depth 45°:	14 M
Discharge Distance:	1,400 M
Dredger After Assembly:	416.81.8 M Length* Width* Depth
Average Draught:	1.1 M

Product Description

Diesel Engine Cutter Suction Dredger with Mud Pump

description

cutter suction dredger is widely used for river lake port and inside waterways etc . cutter suction dredger can process

sand mud gravel from all kinds of dredging project .Yongsheng cutter suction dredger adopts good quality device to

achieve the highest performance .let the customer spends the lowest cost to Get the highest profit Configuration of

Cumins diesel engine ( Otherwise can provide carter Weichai and others diesel engine brand )Shijiazhuang slurry

pump and hydraulic pump from the America or Germany . all configurations can reach he low failure low fuel

consumption high capacity and high efficiency.

parameters

YSCSD400 solid capacity 500 cbm/h *hydraulic* *cutter suction dredger*
Technical specifications
Water flow	2500-3000 m3/h
Solid capacity	500 cbm/h
Max. dredging depth 45°	14 m
Discharge distance	1,400 m
LOA	41 m
Dredger after assembly	416.81.8 m Length* width* depth
Dredger structure	Dismantle type and can be assembly in working site
Average draught	1.1 m
Diameter discharge pipe	400mm/16inch
Main Engine	746 kw Cummins engine
Rotate speed	1800 r/min
Auxiliary engine power	287 kw Cummins engine
Generator	16 kw
Hydraulic cutter power	120 kw
Total power	1,057 kw

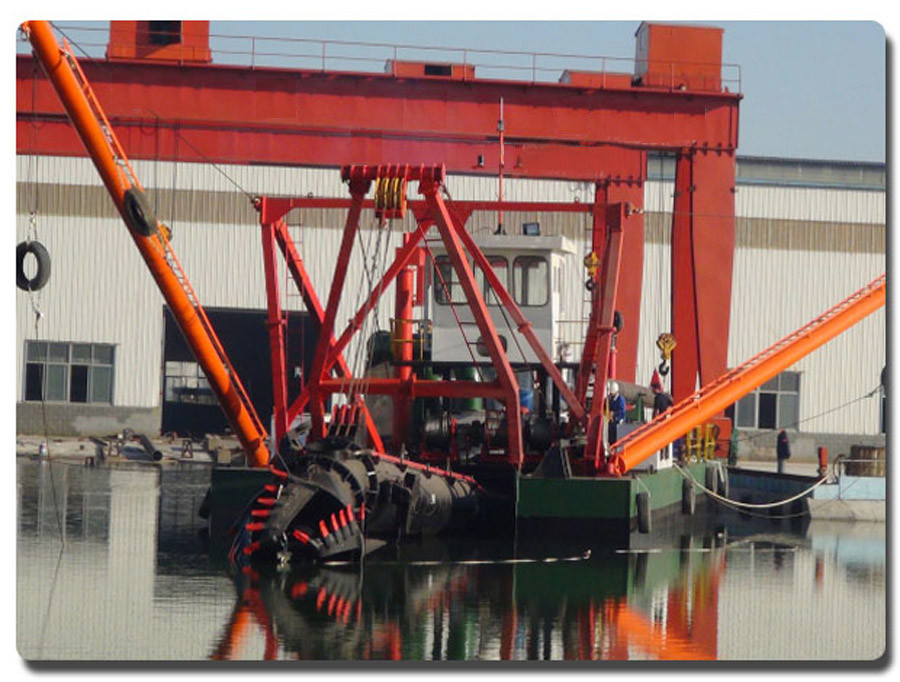

Diesel Engine 400mm Cutter Dredger With Mud Pump 0

Installation
Our cutter suction dredger are installing for foreign customers. Our factory will send the experience installation team

to the abroad quickly when the device arrived use the shortest time to finish the high quality installation .
