Home > products > Cutter Suction Dredger > Sand Mining 500mm 20 Inches Cutter Suction Dredger Equipment

Sand Mining 500mm 20 Inches Cutter Suction Dredger Equipment

Name: Sand Mining 500mm 20 Inches Cutter Suction Dredger Equipment
Brand: Shandong Yongsheng Dredging Machinery Co., Ltd.
SKU: csd500
Price: 709000 USD
Availability: InStock

Product Details

Place of Origin: china

Brand Name: yongsheng

Model Number: csd500

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 709000usd/piece

Packaging Details: Container

Delivery Time: 60 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                20 Inches Cutter Suction Dredger, 500mm Cutter Suction Dredger, Sand Mining Cutter Suction Dredger


Customized:	Customized	Condition:	New
Warranty:	1 Year	Water Flow:	3800m3/H
Solid Capacity:	760 Cbm/H	Max.Dredging Depth 45°:	15m
Discharge Distance:	1600m	Dredger After Assembly:	478.82 .5m LengthWidthDepth
Dredger Structure:	Can Be Assembly In Working Site	Average Draught:	1 .6m
Diameter Discharge Pipe:	500mm/20inch	Total Power:	1648kw
Main Engine:	1193 Kw	Auxiliary Engine Power:	425kw
Generator:	30kw	Hydraulic Cutter Powerr:	220kw

Customized:	Customized
Condition:	New
Warranty:	1 Year
Water Flow:	3800m3/H
Solid Capacity:	760 Cbm/H
Max.Dredging Depth 45°:	15m
Discharge Distance:	1600m
Dredger After Assembly:	478.82 .5m LengthWidthDepth
Dredger Structure:	Can Be Assembly In Working Site
Average Draught:	1 .6m
Diameter Discharge Pipe:	500mm/20inch
Total Power:	1648kw
Main Engine:	1193 Kw
Auxiliary Engine Power:	425kw
Generator:	30kw
Hydraulic Cutter Powerr:	220kw

Product Description

Sand Mining Cutter Suction Dredger Equipment For Sale

Cutter suction dredger is a kind of ship that is widely used in beach dredging projects. It uses

the front end of the suction pipe. The cutter suction pipe is equipped with a rotating cutter device

to cut and agitate the river bottom sediment, and then through the suction pipe, the Mud, mud

transport, mud unloading, and other work processes can be completed continuously at one time.

It is a high-efficiency, low-cost dredger and a good underwater excavating machine. The split

structure makes the installation and transportation of the cutter suction boat simpler and more

flexible, can be easily transported to any location. With its robust design, it is the preferred choice

in its class due to low maintenance, excellent fuel consumption, and high productivity levels.

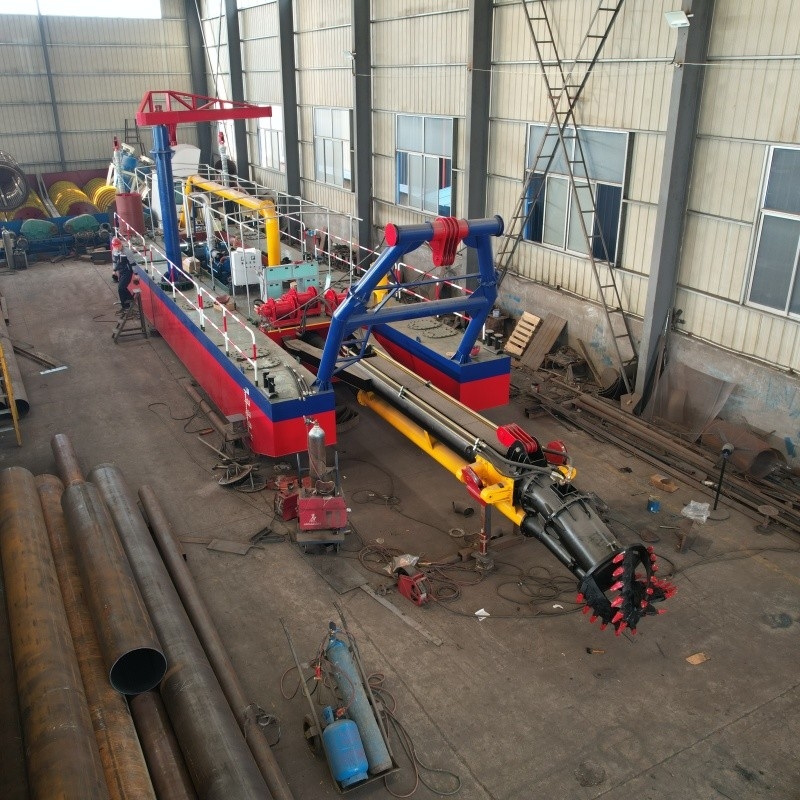

Sand Mining 500mm 20 Inches Cutter Suction Dredger Equipment 0

Model list for hydraulic cutter suction dredger
Model	Inch	Diameter pipe	Water flow	Solid capacity	Total power	Dredging depth	Discharge distance
YSCSD150	6 Inch	150 mm	260 m3/h	30 cbm/h	102 KW	4m	600 m
YSCSD200	8 Inch	200 mm	600 m3/h	80 cbm/h	213 KW	6m	800 m
YSCSD250	10 inch	250 mm	1,000 m3/h	160 cbm/h	367 KW	8m	1,100 m
YSCSD300	12 inch	300 mm	1,500 m3/h	240 cbm/h	591 KW	10 m	1,100 m
YSCSD350	14 inch	350 mm	2,400 m3/h	360 cbm/h	971 KW	12m	1,200 m
YSCSD400	16 Inch	400 mm	3,000 m3/h	500 cbm/h	1,057 KW	14m	1,400 m
YSCSD450	18 Inch	450 mm	3,500 m3/h	700 cbm/h	1,462 KW	15m	1,500 m
YSCSD500	20 Inch	500 mm	3,800 m3/h	760 cbm/h	1,648 KW	15m	1,600m
YSCSD600	24 Inch	600 mm	6,000 m3/h	900 cbm/h	2,511 KW	15m	1,800 m
YSCSD650	26 Inch	650 mm	7,000 m3/h	1,400 cbm/h	3,705 KW	Max.18m	1,800m

Sand Mining 500mm 20 Inches Cutter Suction Dredger Equipment 1

Sand Mining 500mm 20 Inches Cutter Suction Dredger Equipment 2

Sand Mining 500mm 20 Inches Cutter Suction Dredger Equipment 3

Features:
a. One man operation. The most advanced Siemens PLC control system.
b. New highly effective cutter driven system
c. Reliable hydraulic system.
d. Fresh water cooling system.
e. Completely assembled and fully tested before delivery.
f. Very simple and fast assembly with experienced engineers.
g. Standard design, allowing short delivery times.
h. Standard spare parts available from stock.
i. Designed as standard to qualify for Coastal Waters Certificate.
j. Optional equipment available.

FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
