Highlight:
Diesel Engine Cutter Suction Dredger
, 350mm Cutter Suction Dredger
, River Mud Cutter Suction Dredger
Diesel Engine Sand Cutter Suction Dredger for River mud
Dscription
Cutter suction dredger is widely used for river lake port and inside waterways etc . cutter
suction dredger can process sand mud gravel from all kinds of dredging project . cutter
suction dredger adopts good quality device to achieve the highest performance .let the
customer spends the lowest cost to Get the highest profit Configuration of Cumins diesel
engine ( Otherwise can provide carter Weichai and others diesel engine brand )Shijiazhuang
slurry pump and hydraulic pump from the America or Germany . all configurations can reach
the low failure low fuel consumption high capacity and high efficiency.
parameters
|
Model list for hydraulic cutter suction dredger
|
|
Model
|
Inch
|
Diameter pipe
|
Water flow
|
Solid capacity
|
Total power
|
Dredging depth
|
Discharge
distance
|
|
YSCSD150
|
6 Inch
|
150 mm
|
260 m3/h
|
30 cbm/h
|
102 KW
|
4 m
|
600 m
|
|
YSCSD200
|
8 Inch
|
200 mm
|
600 m3/h
|
80 cbm/h
|
213 KW
|
6 m
|
800 m
|
|
YSCSD250
|
10 inch
|
250 mm
|
1,000 m3/h
|
160 cbm/h
|
367 KW
|
8 m
|
1,100 m
|
|
YSCSD300
|
12 inch
|
300 mm
|
1,500 m3/h
|
240 cbm/h
|
591 KW
|
10 m
|
1,100 m
|
|
YSCSD350
|
14 inch
|
350 mm
|
2,400 m3/h
|
360 cbm/h
|
971 KW
|
12 m
|
1,200 m
|
|
YSCSD400
|
16 Inch
|
400 mm
|
3,000 m3/h
|
500 cbm/h
|
1,057 KW
|
14 m
|
1,400 m
|
|
YSCSD450
|
18 Inch
|
450 mm
|
3,500 m3/h
|
700 cbm/h
|
1,462 KW
|
15 m
|
1,500 m
|
|
YSCSD500
|
20 Inch
|
500 mm
|
3,800 m3/h
|
760 cbm/h
|
1,648 KW
|
15 m
|
1,600m
|
|
YSCSD600
|
24 Inch
|
600 mm
|
6,000 m3/h
|
900 cbm/h
|
2,511 KW
|
15 m
|
1,800 m
|
|
YSCSD650
|
26 Inch
|
650 mm
|
7,000 m3/h
|
1,400 cbm/h
|
3,705 KW
|
Max.18m
|
1,800m
|
Dredger working condition
The Maximum Temperature 500C
The Minimum Temperature -100C
The Maximum Temperature of engine room 500C
The Maximum Temperature of The River (Sea) Water 300C
The Relative Humidity ≤80%
Main equipment on the dredger:

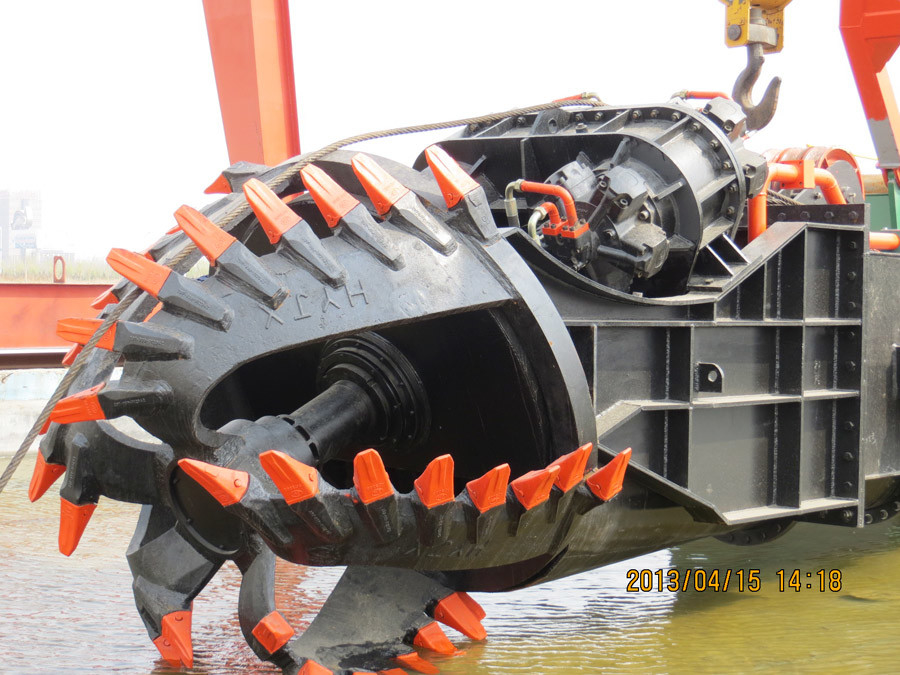

——Cutter head and driving system
—— Frame of cutter head
——Frame of ladder A
——lifting winch for sand suction pipe
——Right and left traversing winches
——Operating room
——Dredging pump
——Deck crane
——Gearbox of dredging pump
——Main diesel oil engine and auxiliary diesel oil engine
after sale service
1. After the cutter suction dredger arrived at the customer's designated site, our technical
personnel also arrived at the site to provide guidance and installation as soon as possible.
2. We will all arrive with the installation tools, including wrenches, hammers, and hydraulic
accessories.
3. After the installation is completed, we also provide on-site personnel with operational
training until they learn how to use the cutter suction dredger.
