26 Inch Suction Dredger Ship
, 7000m3/H Suction Dredger Ship
, High Efficiency Suction Dredger Ship

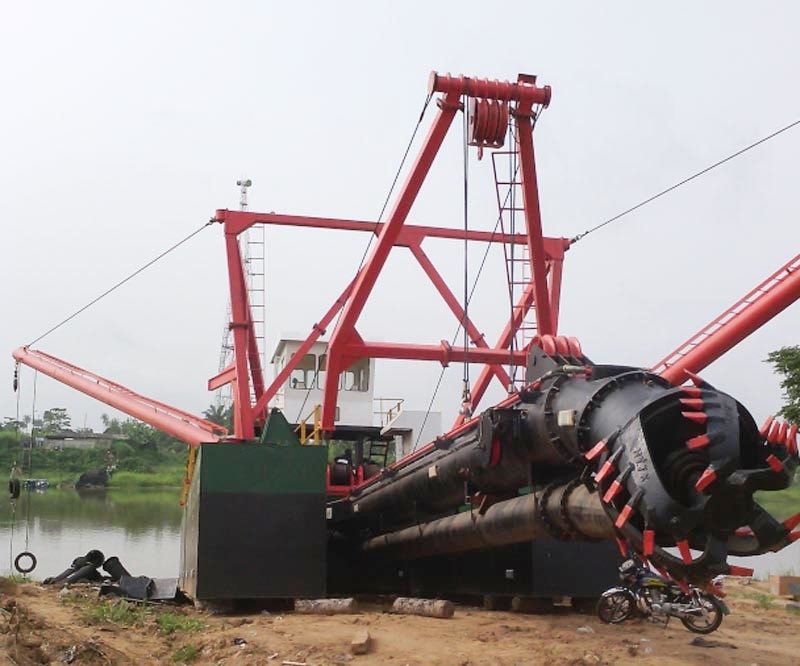

7000m3/H Cutter Suction Dredger with High Efficiency for Sale in Saudi ArabiaDescription
Cutter Suction Dredger is a common and important engineering ship, widely used in the fields of channel
dredging, port construction, land reclamation, etc.
Working Principle
The working principle of the cutter suction dredger is based on mechanical cutting and hydraulic transportation.
The sediments such as sand and rocks on the bottom of the water are cut and crushed by the rotating
cutter device, and mixed with water to form mud. Then, the suction generated by
the mud pump on the ship is used to suck the mud through the mud suction pipe, and then transported
to the designated location through the mud discharge pipe, such as the yard on the shore or other
storage areas.
parameters
|
YSCSD650 26 inch solid capacity 1400 cbm/h hydraulic cutter suction dredger
|
|
Technical specifications
|
|
Water flow
|
7,000 m3/h
|
|
Solid capacity
|
1400cbm/h
|
|
Max. dredging depth 45°
|
18 m
|
|
Discharge distance
|
1,800 m
|
|
LOA
|
50 m
|
|
Dredger after assembly
|
50*11*3.2m Length* width* depth
|
|
Dredger structure
|
Dismantle type and can be assembly in working site
|
|
Average draught
|
2 m
|
|
Diameter discharge pipe
|
650 mm/26 inch
|
|
Main Engine
|
2,685 kw Cummins engine
|
|
Rotate speed
|
1800 r/min
|
|
Auxiliary engine power
|
970 kw Cummins engine
|
|
Generator
|
50 kw
|
|
Hydraulic cutter power
|
660 kw
|
|
Total power
|
3705 kw
|
The cutter suction dredger can be used with many other ancillary devices,including sand processing
equipment:stone crusher,sand screening machines,and sand washing machines,and mineral processing
equipment:iron separation equipment,gold mining and equipment,etc.
The above technical parameters are for reference only,specific device configuration depends on the
conditions of each project,customer and technical requirements.
after sales service
1. We also have supporting facilities for the cutter suction dredger, such as mud discharge pipelines,
mud pump accessories, pipeline floats, etc. The accessories on the dredger are all reserved in stock
to ensure timely shipment during later use!
2. When customers encounter quality problems during the use of the cutter suction dredger in the later
stage, we will first provide video guidance to solve the problem as soon as possible. Then, for major
quality issues, we will arrange for technical personnel to go to the site as soon as possible to ensure
the customer's normal use of the dredger.
3. We will also conduct regular follow-up visits to customers to gain a better understanding of the dredger!
