Highlight:
80cbm/H Cutterhead Suction Dredge
, Hydraulic Cutterhead Suction Dredge
, Solid Cutterhead Suction Dredge

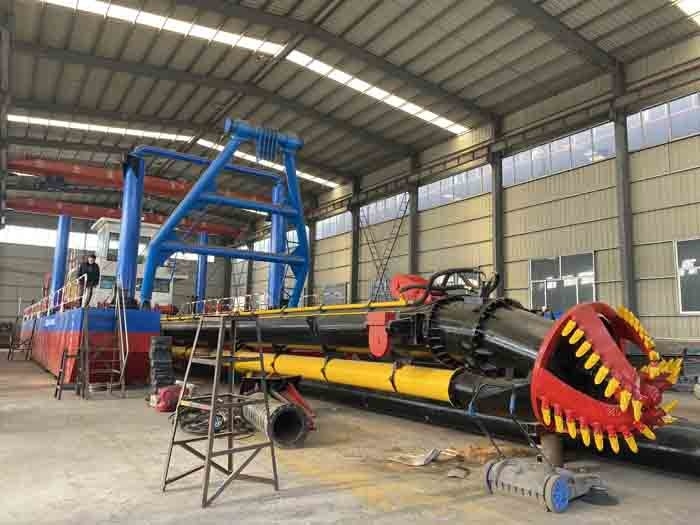

Yscsd200 Solid Capacity 80cbm/H Hydraulic Cutter Suction Dredger for Saledescription
Cutter Suction Dredgers are essential tools in modern dredging operations, offering a combination
of versatility, efficiency, and precision. Their ability to handle a wide range of materials and operate
in various environments makes them indispensable for maintaining waterways, creating new land,
and supporting infrastructure development. With ongoing advancements in technology, CSD continue
to evolve, offering even greater capabilities and environmental benefits.
parameters
|
YSCSD200 solid capacity 80 cbm/h hydraulic cutter suction dredger
|
|
Technical specifications
|
|
Water flow
|
400-600 m3/h
|
|
Solid capacity
|
80 cbm/h
|
|
Max. dredging depth 45°
|
6 m
|
|
Discharge distance
|
800 m
|
|
LOA
|
18 m
|
|
Dredger after assembly
|
18*3.8*1.0 m Length* width* depth
|
|
Dredger structure
|
Full assemble and can be not dismantle
|
|
Average draught
|
0.55 m
|
|
Diameter discharge pipe
|
200mm/8inch
|
|
Main Engine
|
201 kw Cummins engine
|
|
Rotate speed
|
1800 r/min
|
|
Auxiliary engine power
|
0 kw
|
|
Generator
|
12 kw
|
|
Hydraulic cutter power
|
22 kw
|
|
Total power
|
213 kw
|
The CSD consists of several key components that work together to perform dredging tasks:
Cutter Head: The cutter head is a rotating device equipped with cutting teeth or blades. It is responsible
for loosening and breaking up the material at the dredging site. The design of the cutter head can vary
depending on the type of material being dredged, such as sand, clay, or rock.
Suction Pipe: The suction pipe is connected to the cutter head and is used to transport the loosened
material from the seabed to the dredge pump. The pipe is typically equipped with a suction inlet that
allows the material to be drawn into the system.
Dredge Pump: The dredge pump is a powerful centrifugal pump that creates a vacuum to suck up
the dredged material through the suction pipe. The pump then discharges the material through a
pipeline to a designated location, such as a disposal area or a reclamation site.
Swing System: The CSD is equipped with a swing system that allows the cutter head and suction
pipe to move laterally across the dredging area. This system enables the dredger to cover a wide
area without needing to reposition the entire vessel.
Spuds: Spuds are large, vertical poles that are lowered into the seabed to anchor the dredger in
place during operations. They provide stability and allow the dredger to pivot around a fixed point
while the swing system moves the cutter head.
