Non Self Propelled 200mm Jet Suction Dredger For Mining And Sand Dredging

Name: Non Self Propelled 200mm Jet Suction Dredger For Mining And Sand Dredging
Brand: Shandong Yongsheng Dredging Machinery Co., Ltd.
SKU: YSJSD200
Price: 1200000.00 USD
Availability: InStock

Product Details

Place of Origin: shandong

Brand Name: yongsheng

Model Number: YSJSD200

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: container

Delivery Time: 40days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                Sand Dredging Jet Suction Dredger, Mining Jet Suction Dredger, 200mm Jet Suction Dredger


Capacity:	80-100m3/h	Water Flow:	500m3/h
Dredging Depth:	8m	Discharge Distance:	500m
Main Engine:	176KW	Auxiliary Engine:	60KW
Fuel Consumption:	40L/H	Dimension(LWH):	144.51.2m

Capacity:	80-100m3/h
Water Flow:	500m3/h
Dredging Depth:	8m
Discharge Distance:	500m
Main Engine:	176KW
Auxiliary Engine:	60KW
Fuel Consumption:	40L/H
Dimension(LWH):	144.51.2m

Product Description

Non-Self-Propelled Jet Suction Dredger for Mining and Sand Dredging for Sale

product description

A suction dredger (also called a suction dredger or a cutter suction dredger) is a highly efficient dredging equipment

that uses a centrifugal pump to generate negative pressure and a suction head or auger to loosen and suck up underwater

sediment.

Working principle
Suction system: The hull is equipped with a high-power centrifugal pump to form a vacuum in the pipeline, and the mixture

of silt and water (mud) is sucked in through the suction head or auger.

Auger device (key component): The rotating auger cuts and stirs the sediment on the riverbed or seabed to make it

suspended for easy suction.

Transportation system: The mud is pumped to the mud discharge area (such as the reclamation area or mud transport

ship) through the pipeline, and some designs can be discharged directly to the shore.

product parameters

Model	Capacity	Water flow	Dredging depth	Discharge distance	Main engine	Auxiliary engine	Fuel consumption	Dimension(LWH)
YSJSD150	40-50m3/h	250m3/h	6m	500m	120KW	/	18L/H	103.81
YSJSD200	80-100m3/h	500m3/h	8m	500m	176KW	60KW	40L/H	144.51.2m
YSJSD250	150-180m3/h	900m3/h	10m	800m	294KW	88KW	60L/H	1751.2m
YSJSD300	200-250m3/h	1400m3/h	10m	1000m	456KW	110KW	80L/H	2061.5m
YSJSD350	300-400m3/h	2000m3/h	12m	1500m	735KW	220KW	120L/H	246.61.6m
YSJSD400	400-500m3/h	2600m3/h	14m	1500m	882KW	330KW	150L/H	247.21.8m
YSJSD450	500-600m3/h	3000m3/h	14m	1500m	1103KW	406KW	200L/H	267.62m
YSJSD500	600-700m3/h	3800m3/h	14m	1500m	1250KW	456KW	240L/H	267.62m

The above technical parameters are for reference only,specific device configuration depends on the conditions of each

project,customer and technical requirements.

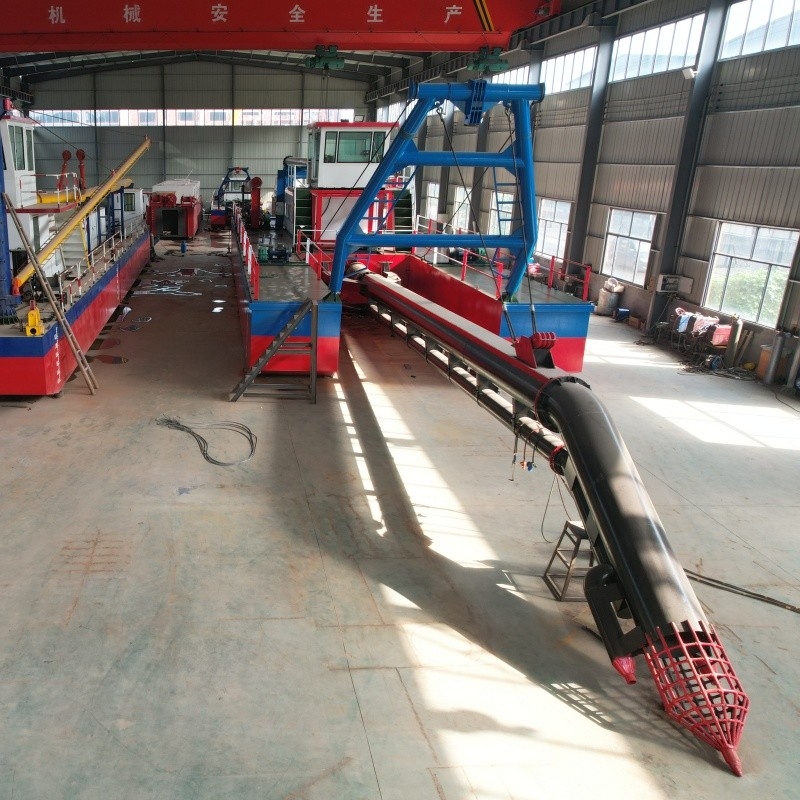

Non Self Propelled 200mm Jet Suction Dredger For Mining And Sand Dredging 0

Non Self Propelled 200mm Jet Suction Dredger For Mining And Sand Dredging 1
