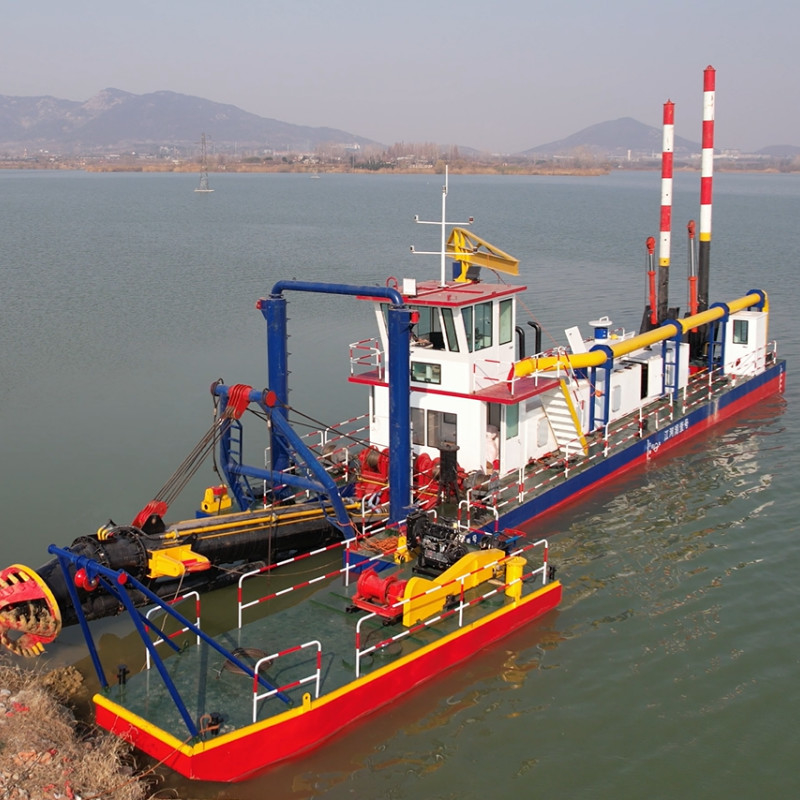

20 Inch Sand Dredging Equipment Cutter Suction Dredger With High Efficiency

Name: 20 Inch Sand Dredging Equipment Cutter Suction Dredger With High Efficiency
Brand: Shandong Yongsheng Dredging Machinery Co., Ltd.
SKU: csd500
Price: 709000 USD
Availability: InStock

Product Details

Place of Origin: china

Brand Name: yongsheng

Model Number: csd500

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 709000usd/piece

Packaging Details: Container

Delivery Time: 60 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Sand Dredging Equipment Cutter Suction Dredger, 20 Inch Cutter Suction Dredger, High Efficiency Cutter Suction Dredger


Customized:	Customized	Condition:	New
Warranty:	1 Year	Water Flow:	3800m3/H
Solid Capacity:	760 Cbm/H	Max.Dredging Depth 45°:	15m
Discharge Distance:	1600m	Dredger After Assembly:	478.82 .5m LengthWidthDepth
Dredger Structure:	Can Be Assembly In Working Site	Average Draught:	1 .6m
Diameter Discharge Pipe:	500mm/20inch	Total Power:	1648kw
Main Engine:	1193 Kw	Auxiliary Engine Power:	425kw
Generator:	30kw	Hydraulic Cutter Powerr:	220kw

Customized:	Customized
Condition:	New
Warranty:	1 Year
Water Flow:	3800m3/H
Solid Capacity:	760 Cbm/H
Max.Dredging Depth 45°:	15m
Discharge Distance:	1600m
Dredger After Assembly:	478.82 .5m LengthWidthDepth
Dredger Structure:	Can Be Assembly In Working Site
Average Draught:	1 .6m
Diameter Discharge Pipe:	500mm/20inch
Total Power:	1648kw
Main Engine:	1193 Kw
Auxiliary Engine Power:	425kw
Generator:	30kw
Hydraulic Cutter Powerr:	220kw

Product Description

20 Inch Sand Dredging Equipment Cutter Suction Dredger With High Efficiency

Product Description

The cutter suction dredger uses a rotating cutter to squeeze the soil at the bottom of the river or seabed, mix it with

cement to form mud, suck it into the pump body through a mud suction pipe and send it to the mud discharge area

through a mud discharge pipe. During the construction of the cutter suction dredger, the dredging, mud conveying

and unloading are all integrated, which is completed by itself, and the production efficiency is high.

The main structure of a cutter suction dredger includes the hull, cutter, suction pipe, pump body, and discharge pipe.

The cutter is a key component of a cutter suction dredger, usually installed at the bow or side of the ship. By rotating

the cutter, the sediment at the bottom of the water is crushed and mixed with water to form mud. The suction pipe

is used to suck mud into the pump body, which transports the mud to the discharge area through the discharge pipe.

20 Inch Sand Dredging Equipment Cutter Suction Dredger With High Efficiency 0

Model list for hydraulic cutter suction dredger
Model	Inch	Diameter pipe	Water flow	Solid capacity	Total power	Dredging depth	Discharge distance
YSCSD150	6 Inch	150 mm	260 m3/h	30 cbm/h	102 KW	4m	600 m
YSCSD200	8 Inch	200 mm	600 m3/h	80 cbm/h	213 KW	6m	800 m
YSCSD250	10 inch	250 mm	1,000 m3/h	160 cbm/h	367 KW	8m	1,100 m
YSCSD300	12 inch	300 mm	1,500 m3/h	240 cbm/h	591 KW	10 m	1,100 m
YSCSD350	14 inch	350 mm	2,400 m3/h	360 cbm/h	971 KW	12m	1,200 m
YSCSD400	16 Inch	400 mm	3,000 m3/h	500 cbm/h	1,057 KW	14m	1,400 m
YSCSD450	18 Inch	450 mm	3,500 m3/h	700 cbm/h	1,462 KW	15m	1,500 m
YSCSD500	20 Inch	500 mm	3,800 m3/h	760 cbm/h	1,648 KW	15m	1,600m
YSCSD600	24 Inch	600 mm	6,000 m3/h	900 cbm/h	2,511 KW	15m	1,800 m
YSCSD650	26 Inch	650 mm	7,000 m3/h	1,400 cbm/h	3,705 KW	Max.18m	1,800m

20 Inch Sand Dredging Equipment Cutter Suction Dredger With High Efficiency 1

20 Inch Sand Dredging Equipment Cutter Suction Dredger With High Efficiency 2

20 Inch Sand Dredging Equipment Cutter Suction Dredger With High Efficiency 3

Features:
a. One man operation. The most advanced Siemens PLC control system.
b. New highly effective cutter driven system
c. Reliable hydraulic system.
d. Fresh water cooling system.
e. Completely assembled and fully tested before delivery.
f. Very simple and fast assembly with experienced engineers.
g. Standard design, allowing short delivery times.
h. Standard spare parts available from stock.
i. Designed as standard to qualify for Coastal Waters Certificate.
j. Optional equipment available.

FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
