Hydraulic 400-8000m3/H Sand Slurry Mud Cutter Suction With Strong Power

Name: Hydraulic 400-8000m3/H Sand Slurry Mud Cutter Suction With Strong Power
Brand: Shandong Yongsheng Dredging Machinery Co., Ltd.
SKU: csd300
Price: 182529 USD
Availability: InStock

Product Details

Place of Origin: china

Brand Name: yongsheng

Model Number: csd300

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 182529usd/piece

Packaging Details: Container

Delivery Time: 60 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                8000m3/H Cutter Suction Dredger, 400m3/H Cutter Suction Dredger, Strong Power Cutter Suction Dredger


Customized:	Customized	Condition:	New
Warranty:	1 Year	Water Flow:	1200-1500m3/h
Solid Capacity:	240 Cbm/h	Max.Dredging Depth 45°:	10m
Discharge Distance:	1100m	Dredger After Assembly:	28.55.51.5m Lengthwidthdepth
Dredger Structure:	Can Be Assembly In Working Site	Average Draught:	1m
Diameter Discharge Pipe:	300mm/12inch	Total Power:	591 Kw
Main Engine:	447 Kw	Auxiliary Engine Power:	120kw
Generator:	16 Kw	Hydraulic Cutter Powerr:	55 Kw

Customized:	Customized
Condition:	New
Warranty:	1 Year
Water Flow:	1200-1500m3/h
Solid Capacity:	240 Cbm/h
Max.Dredging Depth 45°:	10m
Discharge Distance:	1100m
Dredger After Assembly:	28.55.51.5m Lengthwidthdepth
Dredger Structure:	Can Be Assembly In Working Site
Average Draught:	1m
Diameter Discharge Pipe:	300mm/12inch
Total Power:	591 Kw
Main Engine:	447 Kw
Auxiliary Engine Power:	120kw
Generator:	16 Kw
Hydraulic Cutter Powerr:	55 Kw

Product Description

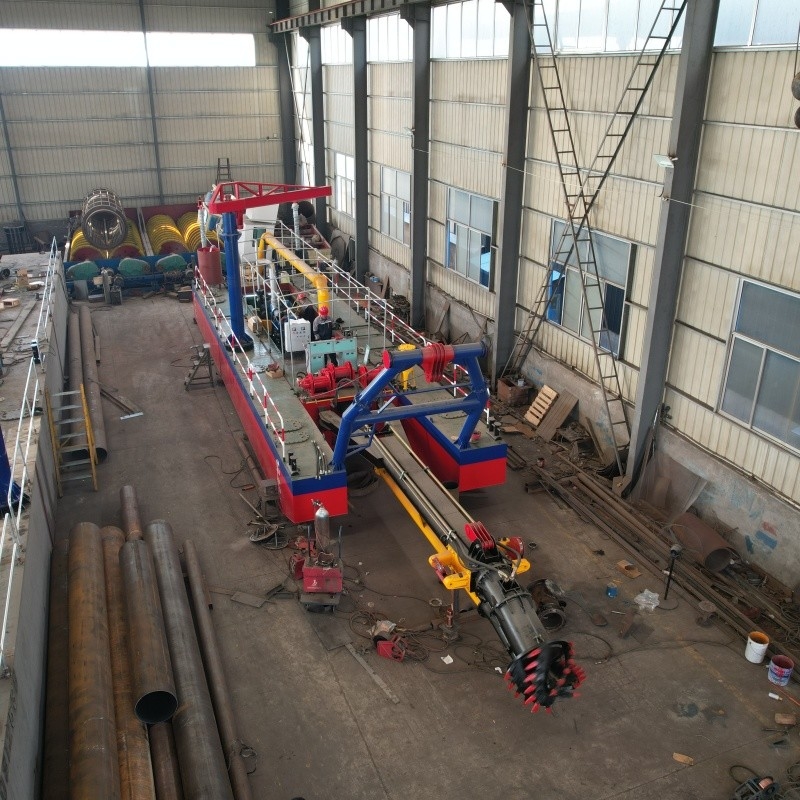

Hydraulic 400-8000m3/H Sand Slurry Mud Cutter Suction with Strong Power

The hull steel plate used is CCSB (shipbuilding steel plate ). The hull is of all welded, steel construction to give the

dredger the necessary strength required for dredging operations.
The hull consists of three pontoons, one main pontoon (engine room), two side pontoons. All parts are dimensioned

to allow the dredger to be transported by road, rail or water. The dredger is equipped with a rapid connection-disconnection

system for the pontoons, achieved using bolts at deck level, hull front and rear, and hooks at the bottom. Further features

of the dredger are the dredger is powered by a Marine engine.

Hydraulic 400-8000m3/H Sand Slurry Mud Cutter Suction With Strong Power 0

Model list for hydraulic cutter suction dredger
Model	Inch	Diameter pipe	Water flow	Solid capacity	Total power	Dredging depth	Discharge distance
YSCSD150	6 Inch	150 mm	260 m3/h	30 cbm/h	102 KW	4m	600 m
YSCSD200	8 Inch	200 mm	600 m3/h	80 cbm/h	213 KW	6m	800 m
YSCSD250	10 inch	250 mm	1,000 m3/h	160 cbm/h	367 KW	8m	1,100 m
YSCSD300	12 inch	300 mm	1,500 m3/h	240 cbm/h	591 KW	10 m	1,100 m
YSCSD350	14 inch	350 mm	2,400 m3/h	360 cbm/h	971 KW	12m	1,200 m
YSCSD400	16 Inch	400 mm	3,000 m3/h	500 cbm/h	1,057 KW	14m	1,400 m
YSCSD450	18 Inch	450 mm	3,500 m3/h	700 cbm/h	1,462 KW	15m	1,500 m
YSCSD500	20 Inch	500 mm	3,800 m3/h	760 cbm/h	1,648 KW	15m	1,600m
YSCSD600	24 Inch	600 mm	6,000 m3/h	900 cbm/h	2,511 KW	15m	1,800 m
YSCSD650	26 Inch	650 mm	7,000 m3/h	1,400 cbm/h	3,705 KW	Max.18m	1,800m

1. Our factory cutter suction dredger is widely used for river lake port and inside waterways etc. Cutter suction

dredgercan process sand mud gravel from all kinds of dredging project.

2. Our factory cutter suction dredger adopts good quality device to achieve the highest performance .

3. Let the customer spends the lowest cost to get the highest profit configuration of cumins diesel engine ( otherwise

can provide carter Weichai and others diesel engine brand) Shijiazhuang slurry pump and hydraulic pump from

the America or Germany. All configurations can reach the low failure low fuel consumption high capacity and high

efficiency.

Hydraulic 400-8000m3/H Sand Slurry Mud Cutter Suction With Strong Power 1

Hydraulic 400-8000m3/H Sand Slurry Mud Cutter Suction With Strong Power 2

Hydraulic 400-8000m3/H Sand Slurry Mud Cutter Suction With Strong Power 3

Hydraulic 400-8000m3/H Sand Slurry Mud Cutter Suction With Strong Power 4

Our Service Gaurantee:

* Long-time after-sales service
* Rational and practical design according to customers' request
* Field site service
* Within warranty period, free repair if quality problems emerge.
* Free training of operation and maintenance.
* Supply high quality accessories in low price.
* We make an excellent filing of customers for long-term following-up service.

FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
