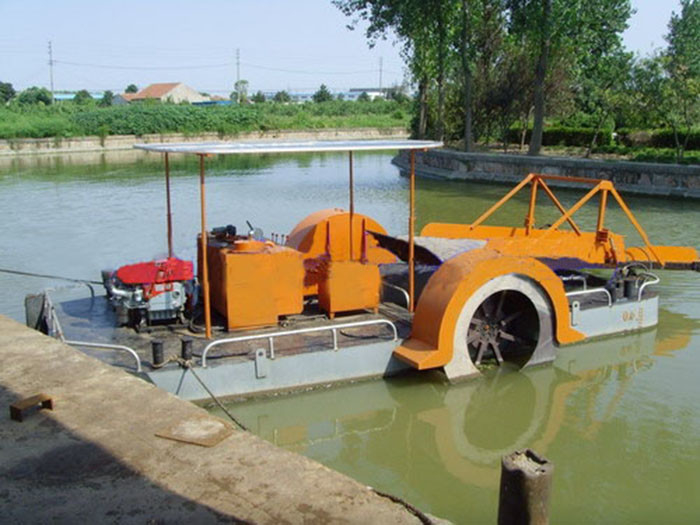

River Floating Weed Flower Harvesting Cleaning Boat Low Noise

China Factory River Floating Weed  Flower Harvesting Cleaning Boat for sale

Product Introduction
Weed harvester is used for collecting the floating trash,aquatic weed in reservoirs,rivers and lakes.The machine is designed

for easy operation, high efficiency, stable performance. All the collecting,conveying,draining,stocking and transporting movement

can be completed by one man via controlling the buttons and swifts on the control desk. The work efficiency of the machine is

thirty times as much as people cleaning.

The weed harvester is controlled by hydraulic system and all the hydraulic parts have high quality sealing effect to make

sure that all the working processes completely satisfy the environment protection requests without oil leakage and noise.

In the course of technical designing, We have considered special requirements for local conditions such as meteorological

 and waters distributing state ect.

product parameters

Working principle:
1. During working, the hydraulic system controls the hydraulic cylinder to lower the front collection cabin to

go to under water; then bottom shear which in the front of cabin starts working that driven by the hydraulic

motor. Its main function is to cut off the roots of the water grass. There are 2 circular saw blades on both

sides of the collection cabin, which rotate rapidly under the drive of the hydraulic motor in order to cut the

horizontally growing water grass.

2. Not only can the branches and vines be quickly cut off, but also the road for the cleaning boat to move

forward can be cleared. Then the 2 saw blades and the bottom shears will work together with each other to

finish the first step of cutting and collecting. Then the collection chain that located in the front cabin starts to

rotate under drive n by the motor, at the same time the cut aquatic plants are transferred to the storage

cabin to finish the collection work.

3. After the middle cabin and the rear cabin are fully filled with the water grass or floating objects drive the

cleaning boat to the shore to unload. When unloading, the hydraulic system drives the cylinder to lift the

rear unloading cabin higher then chain of the rear cabin will run quickly, water grass or floating objects

will be unloaded to the shore.
In this way, the first time of cleaning work is completed, and then the cleaning boat travels to the working

site for cycling work.

The large fully automatic cleaning boat is powerful and fully equipped with different components for different

work requirement. It not only has standard bottom shears and saw blades, but also has other functional

components for optional, according to conditions of aquatic plants for cleaning, such as collection rakes,

vertical shears, crushing knives, mechanical swing arms, wheel knives and so on.
