8m3 60 Kw Aquatic Plant Harvester With Full Automatic System

Name: 8m3 60 Kw Aquatic Plant Harvester With Full Automatic System
Brand: Shandong Yongsheng Dredging Machinery Co., Ltd.
SKU: YS-wcb8
Price: 23500 USD
Availability: InStock

Product Details

Place of Origin: china

Brand Name: yongsheng

Model Number: YS-wcb8

Payment & Shipping Terms

Minimum Order Quantity: 1piece

Price: 23500usd/piece

Packaging Details: container

Delivery Time: 30work days

Payment Terms: L/C,T/T

Supply Ability: 100piece/year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Full Automatic System Aquatic Plant Harvester, 8m3 Aquatic Plant Harvester, 60 Kw Aquatic Plant Harvester


No-load Draught:	0.55m	Full-load Draught:	0.75m
Silo Storage Capacity:	8m³	Collection Width:	1.6m
Collection Depth:	0-1m	Walking Style:	Paddle Wheel
Sailing Speed:	≥8km/h(no-load), ≥4km/h(full Load)	Battery Life:	16h
Power:	60kw	Use:	River Cleaning ,Waterweed Harvesting

No-load Draught:	0.55m
Full-load Draught:	0.75m
Silo Storage Capacity:	8m³
Collection Width:	1.6m
Collection Depth:	0-1m
Walking Style:	Paddle Wheel
Sailing Speed:	≥8km/h(no-load), ≥4km/h(full Load)
Battery Life:	16h
Power:	60kw
Use:	River Cleaning ,Waterweed Harvesting

Product Description

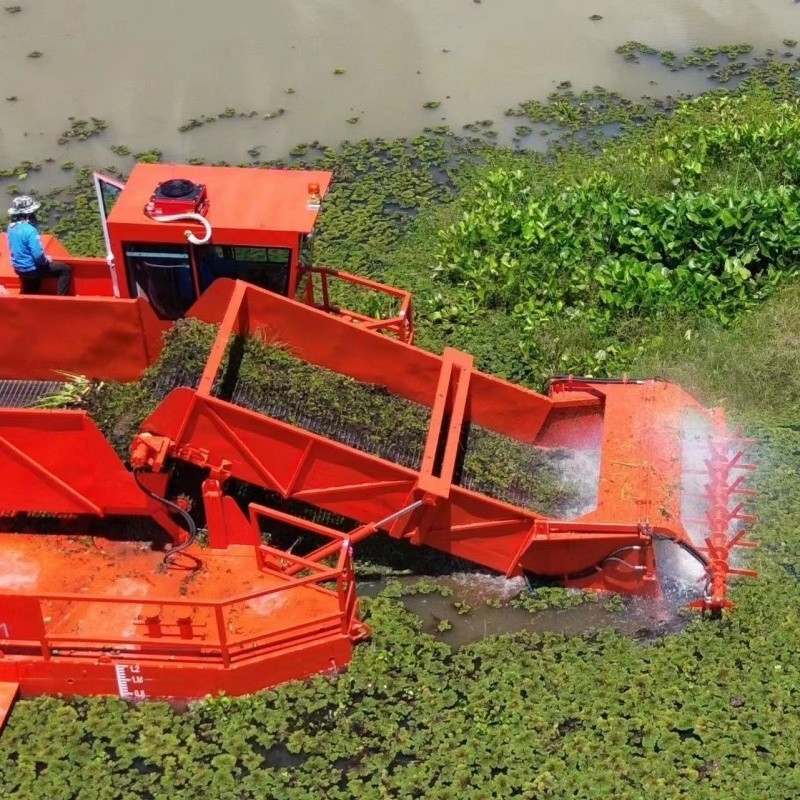

Aquatic Plant Harvester With Full Automatic System

Automatic cleaning ship is currently the most widely used, according to the different plants on the water,

can be used for cleaning ship supporting different parts, such as saw blade, bottom shear, vertical shear,

wheel knife, etc., according to the water area is different, the design meets the requirements of the hull

size, some complex waters can also be used with several cleaning ships.

1. The aquatic plant harvester produced by our factory is refit and designed by referring to the advanced

equipment of foreign countries, absorbing the advantages of all the advanced mower boats in the world.

2. According to the situation of the existing aquatic plants in the river, the whole machine has a cutting

platform device.

3. Set positions. Paddle wheel propeller. Fouling device. Power system and other components.


The role of each component:

			1
			Front collection arm

			Including the harvesting system and transmission system of the mowing boat. The cutting teeth on both sides and the bottom cut off the waterweed and transmit it to the rear storage bin through the stainless steel chain moving in the middle.

			2
			Wheel

			The traveling wheel of the mowing boat adopts the design of paddle wheel, which is light, convenient and not easy to entangle with waterweed.

			3
			Storage space

			The rear storage bin is a temporary storage bin for harvested waterweed, which has the characteristics of large capacity and easy loading and unloading.

			4
			Hull

			The hull is made of high-quality materials, including three parts: bottom plate, side plate, and deck. Excellent texture, strong and durable.

			5
			Operation room

			The control room is the main control console of the entire mower, which can control the movement, rotation, rising and sinking of the collection arm, forward and reverse rotation of the collection chain, etc. The control room adopts a transparent window design, which provides a wide field of view and facilitates operation.

Part Of Specifications For Reference:
Model	YSWCB8	YSCSD10
Storage Size(m3)	8	10
Power(KW)	60	88
Full Load Draft(mm)	0.8	0.85
Moving Way	Paddle wheel	Paddle wheel
Cruising Ability(h)	16	16
Collection Width(m)	1.6	1.8
Collection Depth(m)	1.2	1.2

8m3 60 Kw Aquatic Plant Harvester With Full Automatic System 1

8m3 60 Kw Aquatic Plant Harvester With Full Automatic System 2

8m3 60 Kw Aquatic Plant Harvester With Full Automatic System 3

8m3 60 Kw Aquatic Plant Harvester With Full Automatic System 4

advantage:

1. Save labor: the work efficiency of one machine is equivalent to the work efficiency of 30 people.

2. Convenient transportation: On the premise of ensuring the rigidity of the lawn mower, the weight is

reduced as much as possible, so that the turning pond can be easily lifted manually.

3. Unique design: reduce the distance between the scissors part and the conveying part to prevent the cut

grass from falling into the pond.

4. Convenient disassembly: The scissors part, the conveying part, and the foam hull can all be disassembled

and repaired conveniently, and the conveying spindle is not welded.

5. Reduce water ingress and prolong service life: The steel pipe of the conveying frame is fully enclosed, and

water cannot enter the steel pipe, which can reduce rust and extend the service life.

6. Easy to use: Insert a battery pack and press the switch to use it easily.
