Efficient Dredging Operations Cutter Suction Dredger
, Eco-Dredge Cutter Suction Dredger
Eco-Dredge Cutter Suction Dredger for Efficient Dredging Operation
Product Description
The 7000 cubic meter cutter suction dredger is a large-scale dredging equipment, suitable for seaside dredging, large river sand mining and other
working conditions. The 7000 cubic meter cutter suction dredger is equipped with a main engine of 2647KW and an auxiliary engine of 1000KW.
The main engine drives the 7000 cubic meter 70m head mud pump, and the auxiliary engine drives the hydraulic system of the whole ship. The
hydraulic system includes hydraulic reamer, hydraulic winch, hydraulic cylinder, etc. This cutter suction dredger can reach a mud discharge distance
of 2000m using a 700mm diameter mud discharge pipe.
Detailed Photos

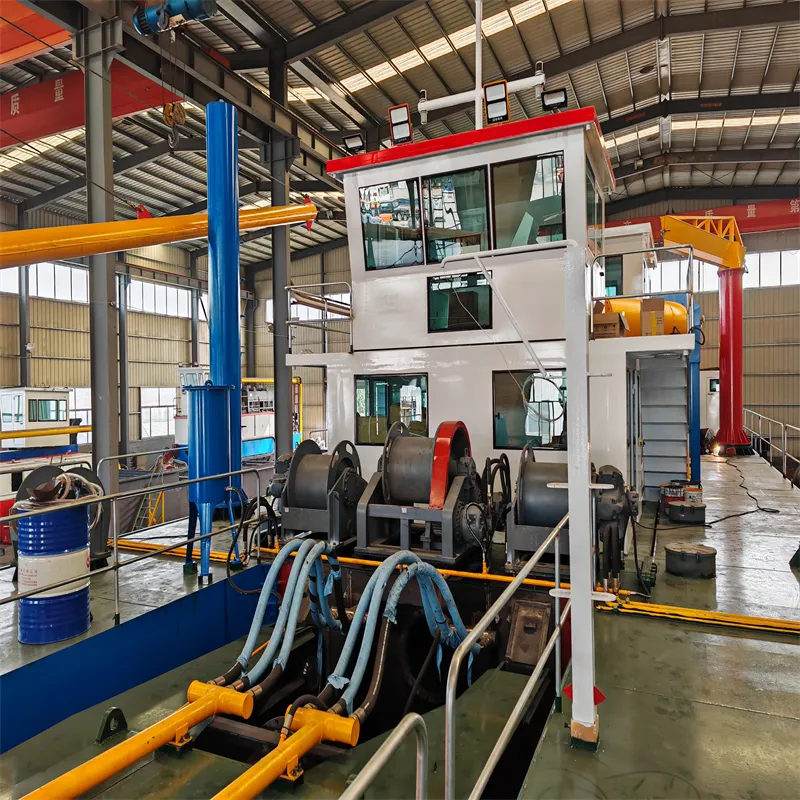

In addition to the hull, the important components of a cutter suction dredger are the hydraulic reamer head in the front, the diesel
engine and the mud pump in the cabin. Only when the hydraulic reamer head efficiently cuts the mud layer can the mud pump be
provided with high-concentration mud, and the diesel engine drives the mud pump to pump out high-concentration mud and sand.
Under normal conditions, the mud discharge concentration of our cutter suction dredger can reach 20%~30%.
Product Parameters
| Model |
YSCSD200 |
YSCSD250 |
YSCSD300 |
YSCSD350 |
YSCSD400 |
YSCSD450 |
YSCSD500 |
YSCSD600 |
YSCSD700 |
| Solid capacity |
80~108m³ |
150~200m³ |
225~300m³ |
300~400m³ |
400~600m³ |
500~760m³ |
600~800m³ |
750~1200m³ |
1000~1500m³ |
| water flow rate |
540m³ |
1000m³ |
1500m³ |
2000m³ |
2600~3000m³ |
3000~3800m³ |
3500~4000m³ |
4000~6000m³ |
7000~7800m³ |
| pump lift |
25~60m |
25~60m |
35~70m |
35~75m |
35~75m |
35~75m |
35~75m |
35~75m |
35~75m |
Dredging Depth
(45°) |
1~8m |
1~10m |
1~15m |
1~15m |
1~15m |
1~15m |
1~15m |
1~15m |
1~15m |
| Dredger after assembly (m) |
20.5*3.8*1.25 |
26.5*4.8*1.25 |
35*5.5*1.5 |
36*5.5*1.8 |
41*6.8*1.8 |
44*7.5*2 |
47*8.8*2.5 |
49*9.4*2.8 |
50*11*3.2 |
| Draught |
0.6m |
0.75m |
1m |
1m |
1.1m |
1.2m |
1.6m |
1.8m |
2m |
| Main Engine |
205KW |
258KW |
456KW |
735KW |
735/920KW |
1000KW |
1250KW |
1800KW |
2536KW |
| Auxiliary engine power |
|
75KW |
122KW |
205KW |
294KW |
426KW |
426KW |
735KW |
1000KW |
| Fuel consumption |
36L/h |
60L/h |
103L/h |
168L/h |
184L/h |
255L/h |
299L/h |
453L/h |
632L/h |
| cutter Diameter |
0.85m |
1m |
1.2m |
1.3m |
1.5m |
1.8m |
1.8m |
2.2m |
2.6m |
| Hydraulic cutter power |
22KW |
37KW |
55KW |
75KW |
120KW |
220KW |
240KW |
440KW |
660KW |
|
The above technical parameters are for reference only and need to be determined based on the customer's underwater environment and technical requirements
|
Installation Instructions
1. Installation is one of the key points for customers to purchase a cutter suction dredger, and we have good after-sales service. When customers purchase
our cutter suction dredger, we provide free door-to-door installation services, and we also have all the tools required for on-site installation. You only need
to find a crane for lifting.
2. After the installation is completed, we will also train the on-site personnel until they learn to use the cutter suction dredger.
3. We can also help customers find professional boat drivers, which can better ensure the efficiency of the cutter suction dredger
Our Advantages
Cutter suction dredger is our company's flagship product. We have our own R&D team. At present, the cutter suction dredger has been updated to the
fifth generation. When customers purchase cutter suction dredgers, we will not blindly recommend high-priced ones, but understand the customer's
working conditions and recommend products that are suitable for customers and have a higher cost-effectiveness. At the same time, we actively
communicate with ship design institutes, and the construction of cutter suction dredgers is based on drawings.
Our products have been exported to Malaysia, Russia, Mongolia, Thailand, Vietnam, Singapore, Indonesia, Fiji, Nigeria, Zimbabwe, Cameroon, Cote
d'Ivoire, Ghana, Uganda and other countries.Best Solutions for dredging and environmental protection equipment are come from Yongsheng.
