Highlight:
River Pumping Sand Cutter Suction Dredger
, 300 Cubic Meters Cutter Suction Dredger
, 16 Inch Cutter Suction Dredger
14 Inch Cutter Suction Dredger for River Pumping Sand Output Reached 300 Cubic Meters
Product introduce :
We are a professional manufacturer of cutter suction dredgers, and we have stock of cutter suction dredgers available for sale within our company.
This cutter suction dredger with a flow rate of 4000 cubic meters is used for dredging rivers, lakes, and seaside cofferdams, with a dredging depth of
15m and a discharge distance of 2000m. The diesel engine power is 1250KW, and customers can choose Weichai Power.
product parameters
The following are the conventional models of hydraulic cutter suction dredgers. Large cutter suction dredgers with a flow rate of 7000 to 20000m3 are
customized products. Please feel free to inquire in detail
| Model |
YSCSD200 |
YSCSD250 |
YSCSD300 |
YSCSD350 |
YSCSD400 |
YSCSD450 |
YSCSD500 |
YSCSD600 |
YSCSD700 |
| Solid capacity |
80~108m³ |
150~200m³ |
225~300m³ |
300~400m³ |
400~600m³ |
500~760m³ |
600~800m³ |
750~1200m³ |
1000~1500m³ |
| water flow rate |
540m³ |
1000m³ |
1500m³ |
2000m³ |
2600~3000m³ |
3000~3800m³ |
3500~4000m³ |
4000~6000m³ |
7000~7800m³ |
| pump lift |
25~60m |
25~60m |
35~70m |
35~75m |
35~75m |
35~75m |
35~75m |
35~75m |
35~75m |
Dredging Depth
(45°) |
1~8m |
1~10m |
1~15m |
1~15m |
1~15m |
1~15m |
1~15m |
1~15m |
1~15m |
| Dredger after assembly (m) |
20.5*3.8*1.25 |
26.5*4.8*1.25 |
35*5.5*1.5 |
36*5.5*1.8 |
41*6.8*1.8 |
44*7.5*2 |
47*8.8*2.5 |
49*9.4*2.8 |
50*11*3.2 |
| Draught |
0.6m |
0.75m |
1m |
1m |
1.1m |
1.2m |
1.6m |
1.8m |
2m |
| Main Engine |
205KW |
258KW |
456KW |
735KW |
735/920KW |
1000KW |
1250KW |
1800KW |
2536KW |
| Auxiliary engine power |
|
75KW |
122KW |
205KW |
294KW |
426KW |
426KW |
735KW |
1000KW |
| Fuel consumption |
36L/h |
60L/h |
103L/h |
168L/h |
184L/h |
255L/h |
299L/h |
453L/h |
632L/h |
| cutter Diameter |
0.85m |
1m |
1.2m |
1.3m |
1.5m |
1.8m |
1.8m |
2.2m |
2.6m |
| Hydraulic cutter power |
22KW |
37KW |
55KW |
75KW |
120KW |
220KW |
240KW |
440KW |
660KW |
| The above technical parameters are for reference only and need to be determined based on the customer's underwater environment and technical requirements. |

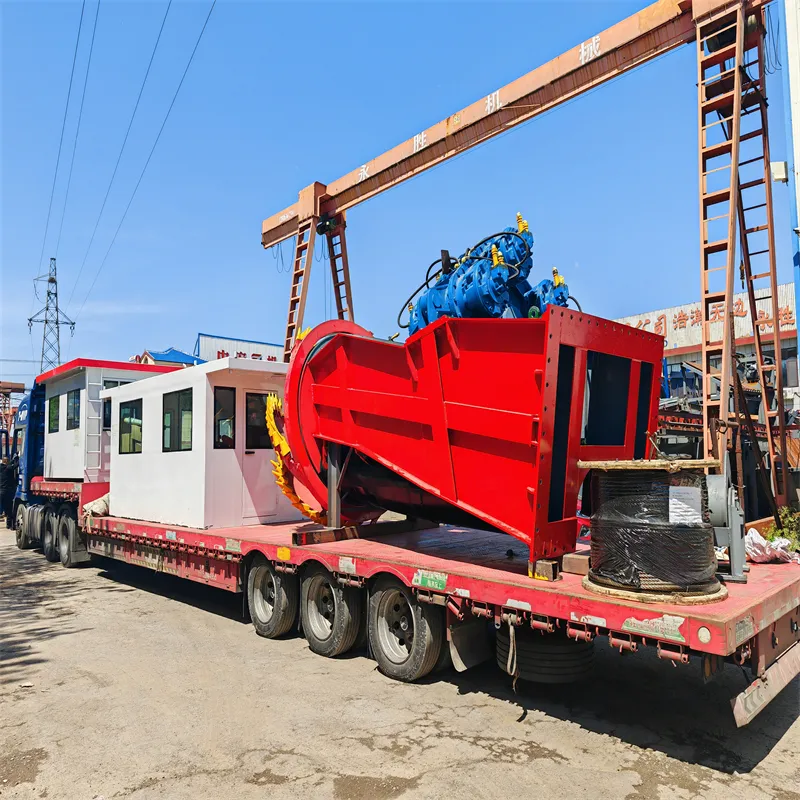

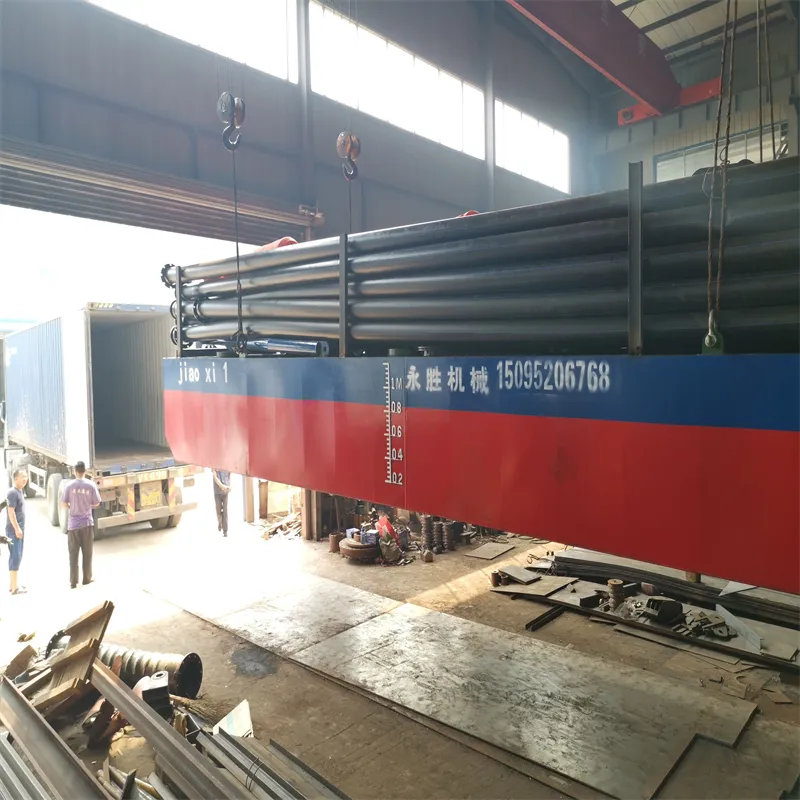

packaging and shipping
There are two main methods for transporting cutter suction dredgers to foreign countries. Small dredgers use container transportation, while medium
and large dredgers use bulk transportation.
installation instructions
When the cutter suction dredger arrives at the site, our technicians will also guide the installation on site, help customers complete the installation of the
dredger, and teach customers how to use the dredger to ensure its normal use and satisfactory efficiency!
after sales service
1. We also have supporting facilities for the cutter suction dredger, such as mud discharge pipelines, mud pump accessories, pipeline floats, etc. The
accessories on the dredger are all reserved in stock to ensure timely shipment during later use!
2. When customers encounter quality problems during the use of the cutter suction dredger in the later stage, we will first provide video guidance to solve
the problem as soon as possible. Then, for major quality issues, we will arrange for technical personnel to go to the site as soon as possible to ensure the
customer's normal use of the dredger.
3. We will also conduct regular follow-up visits to customers to gain a better understanding of the dredger!
