Highlight:
Full Hydraulic Cutter Suction Dredge
, 14 inch Cutter Suction Dredge
, River Sand Cutter Suction Dredge

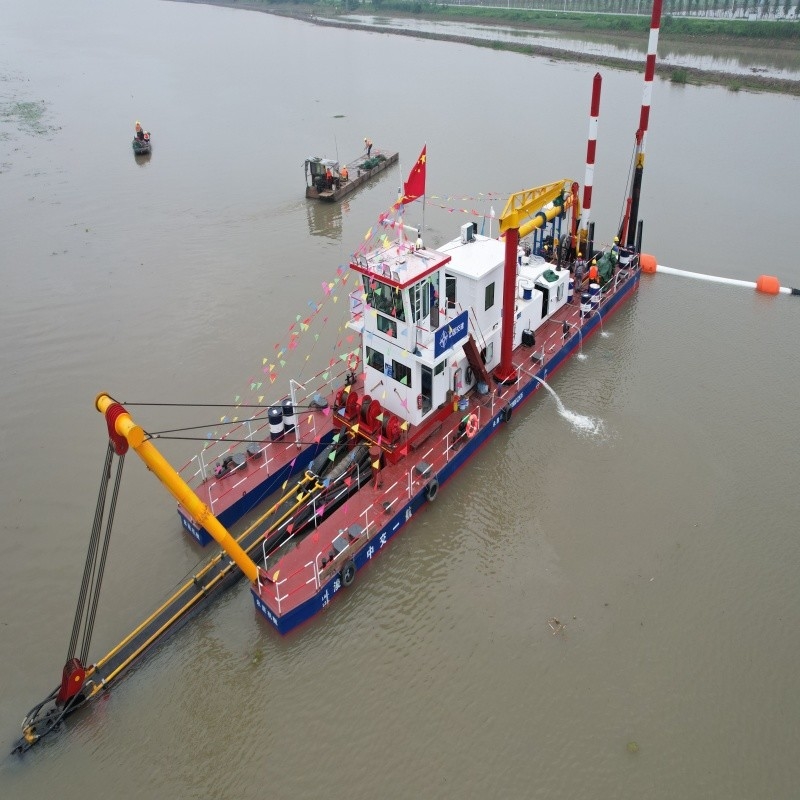

China Full Hydraulic River Sand Pumping Cutter Suction Dredge Dredger for Sale Good Price
PRODUCTION DESCRIPTION
Cutter Suction Dredgers, characterized by strong geographical environment adaptability, simple structure, easy
maintenance, reliable performance, long service life, low costs and large workload(1,000 to 4,000 cubic meters
per day) are ideal choice for sand field and river sand mining. It can also be used in salt mining in salt lakes,
offshore and river dredging, hard riverbed mining, waterway improvement and development. Dug sand after
screening and separation is pure and inclusion-free,which is an ideal choice for the building industry.
Cutter suction dredgers can be installed with ore dressing equipment to extract gold, iron ore and other minerals,
featuring a high degree of automation, high extraction accuracy and large processing capacity. It leads the
industry both at home and abroad.
MAIN FEATURES
1) Standard design, allowing early delivery and low price.
2) Completely assembled and fully tested before delivery.
3) Simple, rapid assembly and dismantling.
4) Ready for operation on arrival at site.
5) Spare parts available from stock.
6) Transportable by road, rail or sea.
7) Reliable hydraulic system.
8) Efficient fuel consumption.
product parameters
|
YSCSD350 solid capacity 360 cbm/h hydraulic cutter suction dredger
|
|
Technical specifications
|
|
Water flow
|
1800-2200 m3/h
|
|
Solid capacity
|
360 cbm/h
|
|
Max. dredging depth 45°
|
12 m
|
|
Discharge distance
|
1,200 m
|
|
LOA
|
36m
|
|
Dredger after assembly
|
36*5.8*1.5 m Length* width* depth
|
|
Dredger structure
|
Dismantle type and can be assembly in working site
|
|
Average draught
|
1 m
|
|
Diameter discharge pipe
|
350mm/14inch
|
|
Main Engine
|
746 kw Cummins engine
|
|
Rotate speed
|
1800 r/min
|
|
Auxiliary engine power
|
201 kw Cummins engine
|
|
Generator
|
16 kw
|
|
Hydraulic cutter power
|
55 kw
|
|
Total power
|
971 kw
|
Company Profile
Shandong yongsheng dredging machinery Co.,LTD.is located in Huanglou Street, Qingzhou City,
Shandong Province, China. It has 2 production bases , total area near 2000m2, and more than 20
years manufacturing experience in water area environmental protective equipment. It is a professional
supplier of integrated with R&D, consultation, manufacturing and after-sale service. Yongsheng now
has obtained certification: ISO9001.
