350mm Discharge Pipe Cutter Suction Dredger For River Sand Dredging And Reclamation

Name: 350mm Discharge Pipe Cutter Suction Dredger For River Sand Dredging And Reclamation
Brand: Shandong Yongsheng Dredging Machinery Co., Ltd.
SKU: csd350
Price: 308412 USD
Availability: InStock

Product Details

Place of Origin: china

Brand Name: yongsheng

Model Number: csd350

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 308412usd/piece

Packaging Details: Container

Delivery Time: 60 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Reclamation Cutter Suction Dredger, 350mm Cutter Suction Dredger, River Sand Cutter Suction Dredger


Customized:	Customized	Condition:	New
Warranty:	1 Year	Water Flow:	1800-2200m3/h
Solid Capacity:	360 Cbm/h	Max.Dredging Depth 45°:	12m
Discharge Distance:	1200m	Dredger After Assembly:	365.81.5m Lengthwidthdepth
Dredger Structure:	Can Be Assembly In Working Site	Average Draught:	1m
Diameter Discharge Pipe:	350mm/14inch	Total Power:	971kw
Main Engine:	746kw	Auxiliary Engine Power:	201kw
Generator:	16 Kw	Hydraulic Cutter Powerr:	55 Kw

Customized:	Customized
Condition:	New
Warranty:	1 Year
Water Flow:	1800-2200m3/h
Solid Capacity:	360 Cbm/h
Max.Dredging Depth 45°:	12m
Discharge Distance:	1200m
Dredger After Assembly:	365.81.5m Lengthwidthdepth
Dredger Structure:	Can Be Assembly In Working Site
Average Draught:	1m
Diameter Discharge Pipe:	350mm/14inch
Total Power:	971kw
Main Engine:	746kw
Auxiliary Engine Power:	201kw
Generator:	16 Kw
Hydraulic Cutter Powerr:	55 Kw

Product Description

Cutter Suction Dredger for River Sand Dredging and Reclamation

cutter suction sand dredger is perfectly suited for dredging sand, mud, gravel in the river or lake, Pond and lagoon.

this model dredger can keep perfect and stable performance.
Besides, it can also be perfectly in dredging work of port construction and navigation channel maintenance with flexible

operation. It can dredge sand, mud, clay, silt or other sediment in the water bed for passing vessel.

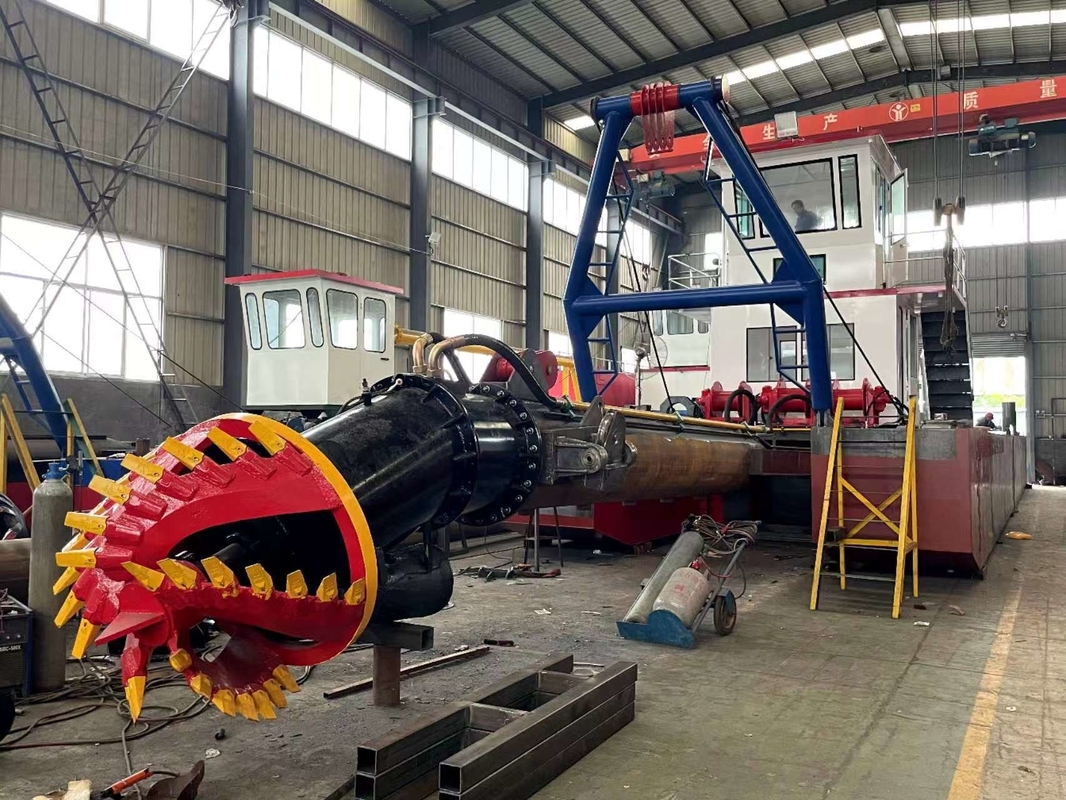

350mm Discharge Pipe Cutter Suction Dredger For River Sand Dredging And Reclamation 0

Model list for hydraulic cutter suction dredger
Model	Inch	Diameter pipe	Water flow	Solid capacity	Total power	Dredging depth	Discharge distance
YSCSD150	6 Inch	150 mm	260 m3/h	30 cbm/h	102 KW	4m	600 m
YSCSD200	8 Inch	200 mm	600 m3/h	80 cbm/h	213 KW	6m	800 m
YSCSD250	10 inch	250 mm	1,000 m3/h	160 cbm/h	367 KW	8m	1,100 m
YSCSD300	12 inch	300 mm	1,500 m3/h	240 cbm/h	591 KW	10 m	1,100 m
YSCSD350	14 inch	350 mm	2,400 m3/h	360 cbm/h	971 KW	12m	1,200 m
YSCSD400	16 Inch	400 mm	3,000 m3/h	500 cbm/h	1,057 KW	14m	1,400 m
YSCSD450	18 Inch	450 mm	3,500 m3/h	700 cbm/h	1,462 KW	15m	1,500 m
YSCSD500	20 Inch	500 mm	3,800 m3/h	760 cbm/h	1,648 KW	15m	1,600m
YSCSD600	24 Inch	600 mm	6,000 m3/h	900 cbm/h	2,511 KW	15m	1,800 m
YSCSD650	26 Inch	650 mm	7,000 m3/h	1,400 cbm/h	3,705 KW	Max.18m	1,800m

The main structure of a cutter suction dredger includes the hull, cutter, suction pipe, pump body, and discharge pipe.

The cutter is a key component of a cutter suction dredger, usually installed at the bow or side of the ship. By rotating

the cutter, the sediment at the bottom of the water is crushed and mixed with water to form mud. The suction pipe

is used to suck mud into the pump body, which transports the mud to the discharge area through the discharge pipe.

350mm Discharge Pipe Cutter Suction Dredger For River Sand Dredging And Reclamation 1

350mm Discharge Pipe Cutter Suction Dredger For River Sand Dredging And Reclamation 2

350mm Discharge Pipe Cutter Suction Dredger For River Sand Dredging And Reclamation 3

350mm Discharge Pipe Cutter Suction Dredger For River Sand Dredging And Reclamation 4

Our Service Gaurantee:

* Long-time after-sales service
* Rational and practical design according to customers' request
* Field site service
* Within warranty period, free repair if quality problems emerge.
* Free training of operation and maintenance.
* Supply high quality accessories in low price.
* We make an excellent filing of customers for long-term following-up service.

FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
