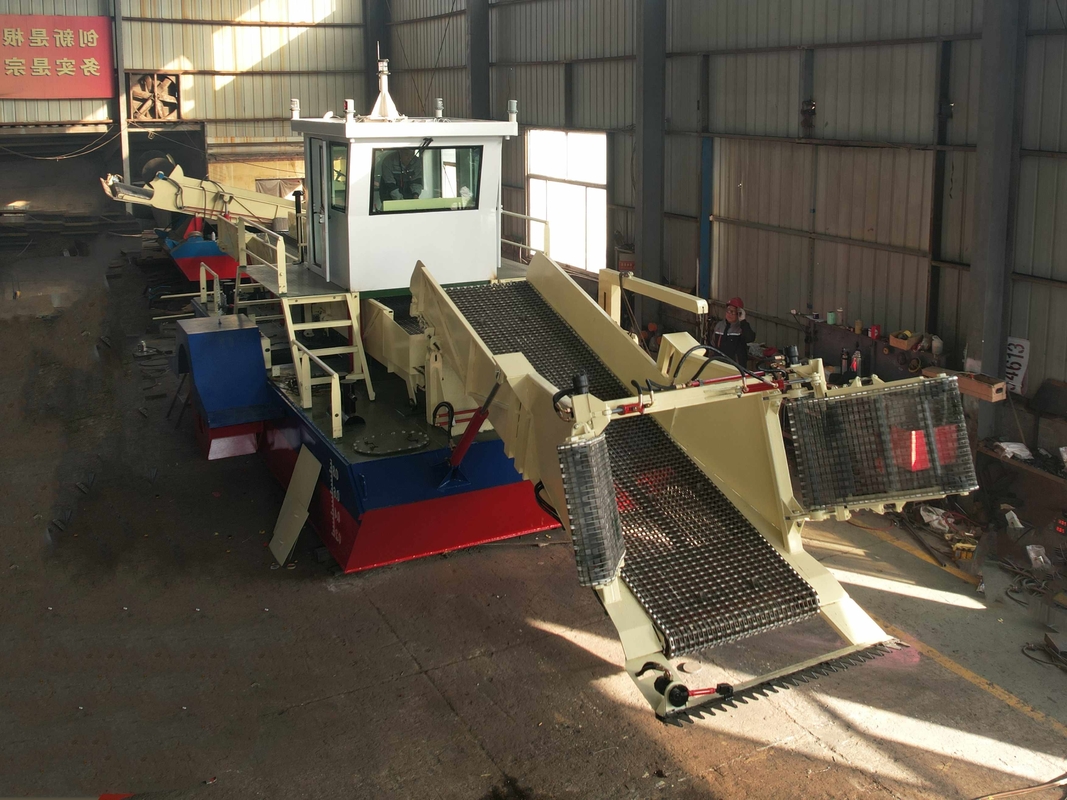

High Efficiency Mowing Boat Effectively Clean Floating Aquatic Plants In Rivers

High efficiency mowing boat effectively clean floating aquatic plants in rivers

Performance Features:
Its structure adopts a 3-section rod design, which corresponds to the front collection cabin, the  middle

storage cabin with the rear storage and unloading cabin.A large operation room is built above the middle

storage cabin, which is equipped with an integrat-ed operation table. The captain can control the entire

boat for working while sitting inside the oper-ation room.

product  parameters:

Working principle:
1. During working, the hydraulic system controls the hydraulic cylinder to lower the front collection  cabin

to go to under water; then bottom shear which in the front of cabin starts working that driven  by the hydraulic

motor. Its main function is to cut off the roots of the water grass. There are 2 cir-cular saw blades on both

sides of the collection cabin, which rotate rapidly under the drive of the  hydraulic motor in order to cut the

horizontally growing water grass.

2. Not only can the branches and vines be quickly cut off, but also the road for the cleaning boat to  move

forward can be cleared. Then the 2 saw blades and the bottom shears will work together  with each other

to finish the first step of cutting and collecting. Then the collection chain that locat-ed in the front cabin starts

to rotate under driven by the motor, at the same time the cut aquatic  plants are transferred to the storage

cabin to finish the collection work.

3. After the middle cabin and the rear cabin are fully filled with the water grass or floating objects  drive the

cleaning boat to the shore to unload. When unloading, the hydraulic system drives the  cylinder to lift the

rear unloading cabin higher then chain of the rear cabin will run quickly, water  grass or floating objects will

be unloaded to the shore.
In this way, the first time of cleaning work is completed, and then the cleaning boat travels to the  working

site for cycling work.

The large fully automatic cleaning boat is powerful and fully equipped with different components  for different

work requirement. It not only has standard bottom shears and saw blades, but also  has other functional

components for optional, according to conditions of aquatic plants for clean-ing, such as collection rakes,

vertical shears, crushing knives, mechanical swing arms, wheel  knives and so on.

Company Profile

Shandong Yongsheng Dredging Machinery Equipment Co., Ltd. is located in Ma Song Industrial Park, Huanglou

Street, Qingzhou City, Weifang City, Shandong Province, China. Yongsheng was established in 1995, which

is a comprehensive manufacturer that integrating R&D, production, sales and after-sales service. Designing

and manufacturing of cutter suction dredgers and aquatic weed harvester are the company's main business.
Since its establishment, Yongsheng has wholeheartedly serves its customers at home and abroad.
Based on understanding customers, listening to their opinions and suggestions, Yongsheng designs and

improves its products in order to better develop the products that meet customer's needs. All Yongsheng

products have got ISO9001 quality management system certification and support SGS factory inspection

of goods.

Yongsheng is cling to customer-oriented and quality first, and has always maintained cooperative relationships

with China Communications Construction Group Co., Ltd. and China Railway Engineering Group Co., Ltd.

Our products have been exported to Malaysia, Russia, Mongolia, Thailand, Vietnam, Singapore, Indonesia,

Fiji, Nigeria, Zimbabwe, Cameroon, Cote d'Ivoire, Ghana, Uganda and other countries
