Highlight:
Water Engineering Cutter Suction Dredger
, Efficient Cutter Suction Dredger
, Global Cutter Suction Dredger

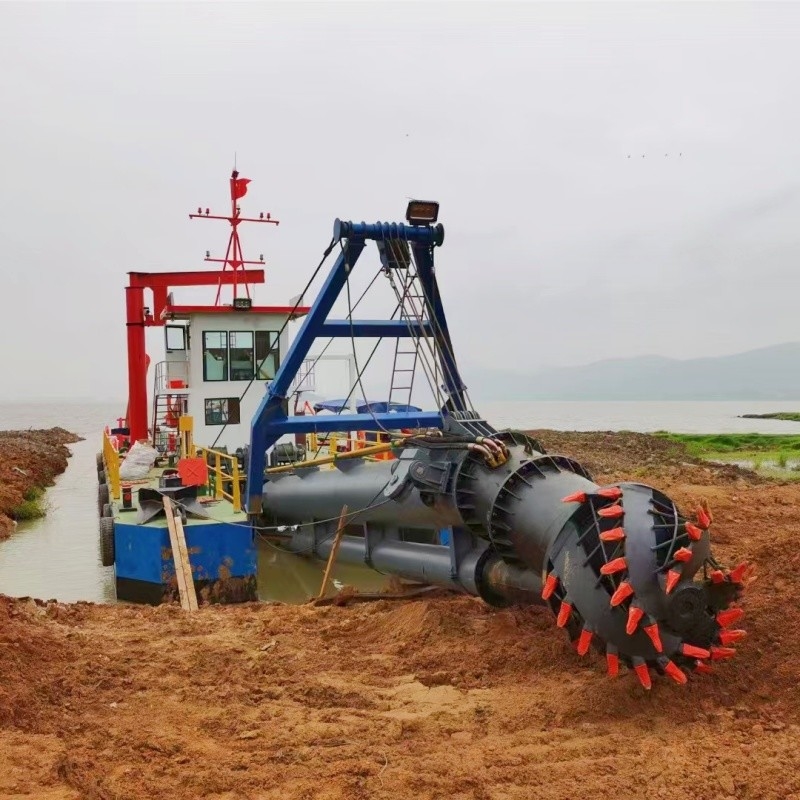

Cutter suction dredger for efficient dredging - assisting global water engineering construction
Product description
The cutter suction dredger is an efficient dredging equipment that integrates excavation, transportation and discharge.
It is widely used in port construction, channel dredging, land reclamation, river management and environmental dredging.
With its advantages of strong continuous operation capability, high construction precisionand adaptability to complex
working conditions, it has become the core equipment of modern dredging projects.
product parameters:
|
YSCSD150 solid capacity 30 cbm/h hydraulic cutter suction dredger
|
|
Technical specifications
|
|
Water flow
|
150-260 m3/h
|
|
Solid capacity
|
30 cbm/h
|
|
Max. dredging depth 45°
|
4 m
|
|
Discharge distance
|
600 m
|
|
LOA
|
15.5 m
|
|
Dredger after assembly
|
15.5*3.5*0.8 m Length* width* depth
|
|
Dredger structure
|
Full assemble and can be not dismantle
|
|
Average draught
|
0.4 m
|
|
Diameter discharge pipe
|
150mm/6inch
|
|
Main Engine
|
90 kw Cummins engine
|
|
Rotate speed
|
1800 r/min
|
|
Auxiliary engine power
|
0 kw
|
|
Generator
|
12 kw
|
|
Hydraulic cutter power
|
15 kw
|
|
Total power
|
102 kw
|
Main equipment on the dredger:
——Cutter head and driving system
—— Frame of cutter head
——Frame of ladder A
——lifting winch for sand suction pipe
——Right and left traversing winches
——Operating room
——Dredging pump
——Deck crane
——Gearbox of dredging pump
——Main diesel oil engine and auxiliary diesel oil engine
Applications
Port and waterway upgrades: Rapidly excavate deep-water channels to ensure navigation of large ships.
Land reclamation: Efficient land reclamation to support coastal city expansion (such as the Dubai Palm Island project).
Environmental governance: Clean up polluted sediments and restore the ecology of lakes and rivers.
Emergency rescue: Dredging rivers after floods and post-disaster reconstruction.
Why choose us?
1.20 years of industry experience - serving 50+ countries around the world, and completing 300+ dredging projects.
2.Full life cycle support - providing one-stop solutions for design, construction, training and maintenance.
3.Customized services - optimize ship configuration and construction plans based on customer budgets and engineering
requirements.
