Sand And Slurry Jet Suction Dredger For Mining

Name: Sand And Slurry Jet Suction Dredger For Mining
Brand: Shandong Yongsheng Dredging Machinery Co., Ltd.
SKU: ys-16inch
Price: 95000 USD
Availability: InStock

Product Details

Place of Origin: china

Brand Name: yongsheng

Model Number: ys-16inch

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 95000usd/piece

Packaging Details: Container

Delivery Time: 30 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Mining Jet Suction Dredger, Sand Jet Suction Dredger, Slurry Jet Suction Dredger


Customized:	Customized	Condition:	New
Warranty:	1 Year	Water Flow:	2600m3/h
Solid Capacity:	400-500 Cbm/H	Max.Dredging Depth 45°:	14m
Discharge Distance:	1500m	Size:	24M7.2M1.8M
Main Engine:	882kw	Consumption:	150L/H
Application:	Sand Suction	Work Site:	River Lake Sea Canal
Auxiliary Engine Power:	258kw	Core Components:	Engine, Pump

Customized:	Customized
Condition:	New
Warranty:	1 Year
Water Flow:	2600m3/h
Solid Capacity:	400-500 Cbm/H
Max.Dredging Depth 45°:	14m
Discharge Distance:	1500m
Size:	24M7.2M1.8M
Main Engine:	882kw
Consumption:	150L/H
Application:	Sand Suction
Work Site:	River Lake Sea Canal
Auxiliary Engine Power:	258kw
Core Components:	Engine, Pump

Product Description

Sand and Slurry Jet Suction Dredger for Mining

1.Brief Introduction
Jet Suction sand dredgers is widely used to recover underwater materials from great depths and can also extract
sand from below a clay overburden. The jet suction sand dredgers is also called suction sand dredgers. The jet
suction sand dredgers is equipped with high pressure water pump and powerful sand suction pump. The water
pump can produce high pressure high speed water jet to impact the bottom of sand layer and splashing the mixed
sand around the suction head, and the sand suction pump conveys the sand to the destination through the
discharge pipe.

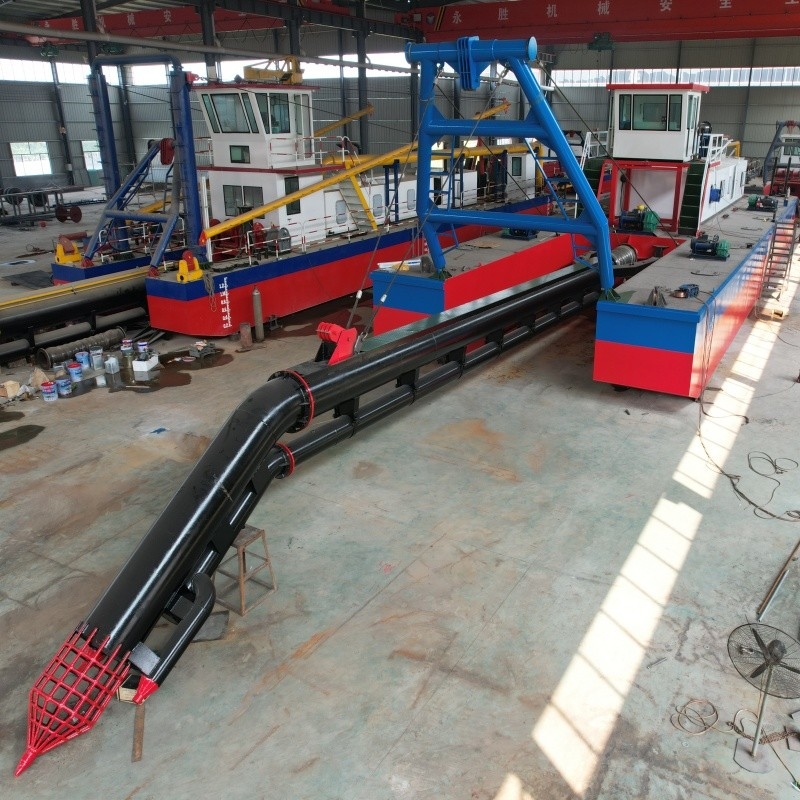

Sand And Slurry Jet Suction Dredger For Mining 0

Product Paramenters:

Model	Soild capacity	Water flow	Dredging depth	Discharge distance	Main engine	Auxiliary engine	Total consumption	size(m)
6inch	40-50 m3/h	250 m3/h	6M	500M	120 KW		18L/H	103.81.6
8inch	80-100 m3/h	500 m3/h	8M	500M	176 KW	60KW	40L/H	144.51.2
10inch	150-180 m3/h	900 m3/h	10M	800M	294 KW	88KW	60L/H	1751.2
12inch	200-250 m3/h	1400 m3/h	10M	1000M	456 KW	110KW	80L/H	2061.5
14inch	300-400 m3/h	2000 m3/h	12M	1500M	735 KW	120KW	120L/H	246.61.6
16inch	400-500 m3/h	2600 m3/h	14M	1500M	882 KW	258KW	150L/H	247.21.8
18inch	500-600 m3/h	3000 m3/h	14M	1500M	1103 KW	456KW	220L/H	247.62.0
20inch	600-700 m3/h	3800 m3/h	14M	1500M	1250 KW	456KW	240L/H	267.62.0
Note: Because this equipment is a customized product, the maximum conveying distance of one pump is 1000-2000m. If long-distance conveying is required, a separate relay pump group is added. The above output is calculated based on the conventional flow rate 15-20% concentration. If the long-distance conveying concentration will be reduced, it can be calculated based on about 15% of the flow rate.

Sand And Slurry Jet Suction Dredger For Mining 1

Sand And Slurry Jet Suction Dredger For Mining 2

Sand And Slurry Jet Suction Dredger For Mining 3

Advantage:

Novel design, High efficient, large output, long discharge distance.
High quality wear resistance and long serve life sand pump.
Pumping depth reaches up to 20-30m underwater.
Dredge hull consists of multiple pontoons connected by proven coupling system.
Highly efficient fuel consumption and minimum overall operational costs.
Control box and instrument are mounted in ergonomic dash board.
Low investment and good operating performance.
Simple and fast assembly and disassembly, easy to operate.

Shandong Yongsheng dredging machinery co., ltd

Sand And Slurry Jet Suction Dredger For Mining 4
