80cbm/H Hydraulic Cutter Suction Dredger
, Hydraulic Cutter Suction Dredger
, Solid Capacity Hydraulic Cutter Suction Dredger

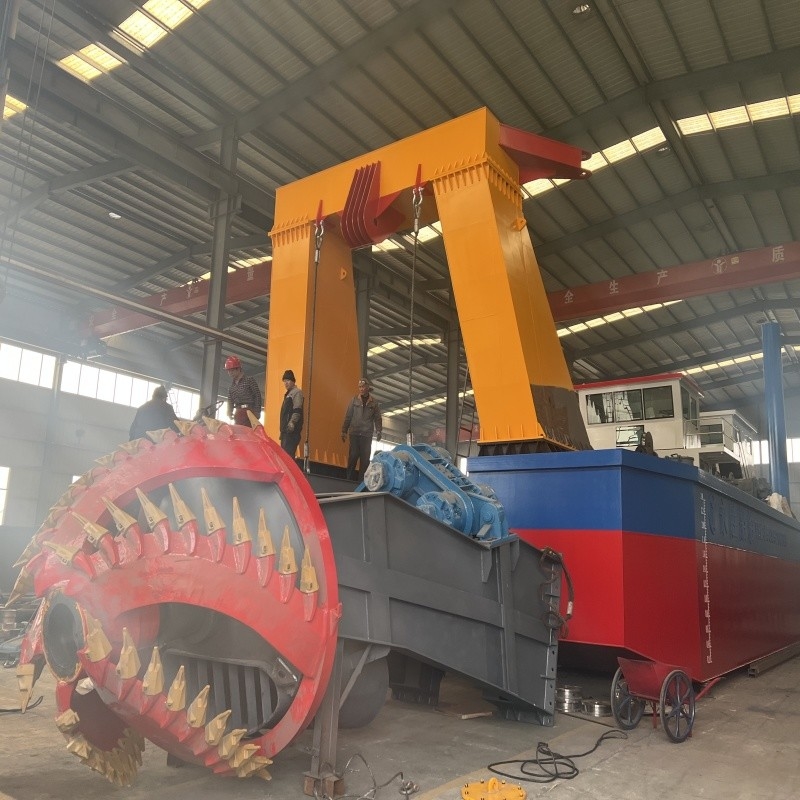

Yscsd200 Solid Capacity 80cbm/H Hydraulic Cutter Suction Dredger for Sale
Product Description
Cutter Suction Dredger is a common and important engineering ship, widely used in the fields of channel
dredging, port construction, land reclamation, etc.
Working Principle
The working principle of the cutter suction dredger is based on mechanical cutting and hydraulic transportation.
The sediments such as sand and rocks on the bottom of the water are cut and crushed by the rotating cutter
device, and mixed with water to form mud. Then, the suction generated by the mud pump on the ship is used
to suck the mud through the mud suction pipe, and then transported to the designated location through the
mud discharge pipe, such as the yard on the shore or other storage areas.
product parameters:
|
YSCSD200 solid capacity 80 cbm/h hydraulic cutter suction dredger
|
|
Technical specifications
|
|
Water flow
|
400-600 m3/h
|
|
Solid capacity
|
80 cbm/h
|
|
Max. dredging depth 45°
|
6 m
|
|
Discharge distance
|
800 m
|
|
LOA
|
18 m
|
|
Dredger after assembly
|
18*3.8*1.0 m Length* width* depth
|
|
Dredger structure
|
Full assemble and can be not dismantle
|
|
Average draught
|
0.55 m
|
|
Diameter discharge pipe
|
200mm/8inch
|
|
Main Engine
|
201 kw Cummins engine
|
|
Rotate speed
|
1800 r/min
|
|
Auxiliary engine power
|
0 kw
|
|
Generator
|
12 kw
|
|
Hydraulic cutter power
|
22 kw
|
|
Total power
|
213 kw
|
After sales service
1. We also have supporting facilities for the cutter suction dredger, such as mud discharge pipelines, mud
pump accessories, pipeline floats, etc. The accessories on the dredger are all reserved in stock to ensure
timely shipment during later use!
2. When customers encounter quality problems during the use of the cutter suction dredger in the later stage,
we will first provide video guidance to solve the problem as soon as possible. Then, for major quality issues,
we will arrange for technical personnel to go to the site as soon as possible to ensure the customer's normal
use of the dredger.
3. We will also conduct regular follow-up visits to customers to gain a better understanding of the dredger!
Company Profile
Shandong yongsheng dredging machinery Co.,LTD.is located in Huanglou Street, Qingzhou City, Shandong
Province, China. It has 2 production bases , total area near 2000m2, and more than 20 years manufacturing
experience in water area environmental protective equipment. It is a professional supplier of integrated with
R&D, consultation, manufacturing and after-sale service. Yongsheng now has obtained certification: ISO9001.
