Cutter Suction Dredger Boat For River Sand Mining Projects

Name: Cutter Suction Dredger Boat For River Sand Mining Projects
Brand: Shandong Yongsheng Dredging Machinery Co., Ltd.
SKU: csd450
Price: 560000 USD
Availability: InStock

Product Details

Place of Origin: china

Brand Name: yongsheng

Model Number: csd450

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 560000usd/piece

Packaging Details: Container

Delivery Time: 60 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                River Sand Mining Cutter Suction Dredger, Cutter Suction Dredger Boat, River Sand Mining Dredger Boat


Customized:	Customized	Condition:	New
Warranty:	1 Year	Water Flow:	3500m3/h
Solid Capacity:	700cbm/h	Max.Dredging Depth 45°:	15m
Discharge Distance:	1500m	Dredger After Assembly:	43.57.52 M Lengthwidthdepth
Dredger Structure:	Can Be Assembly In Working Site	Average Draught:	1.2m
Diameter Discharge Pipe:	450mm/18inch	Total Power:	1057kw
Main Engine:	1,007kw	Auxiliary Engine Power:	425 Kw
Generator:	30 Kw	Hydraulic Cutter Powerr:	160 Kw

Customized:	Customized
Condition:	New
Warranty:	1 Year
Water Flow:	3500m3/h
Solid Capacity:	700cbm/h
Max.Dredging Depth 45°:	15m
Discharge Distance:	1500m
Dredger After Assembly:	43.57.52 M Lengthwidthdepth
Dredger Structure:	Can Be Assembly In Working Site
Average Draught:	1.2m
Diameter Discharge Pipe:	450mm/18inch
Total Power:	1057kw
Main Engine:	1,007kw
Auxiliary Engine Power:	425 Kw
Generator:	30 Kw
Hydraulic Cutter Powerr:	160 Kw

Product Description

Cutter Suction Dredger Boat for River Sand Mining Projects

Cutter suction dredgers are widely used, such as dredging, sand pumping, sea reclamation, wharf construction, etc.

It can adapt to various working conditions, high efficiency, simple operation, not easy to damage and convenient maintenance.

We have a variety of models for customers to choose,we can customize according to the working conditions and requirements

of customers.

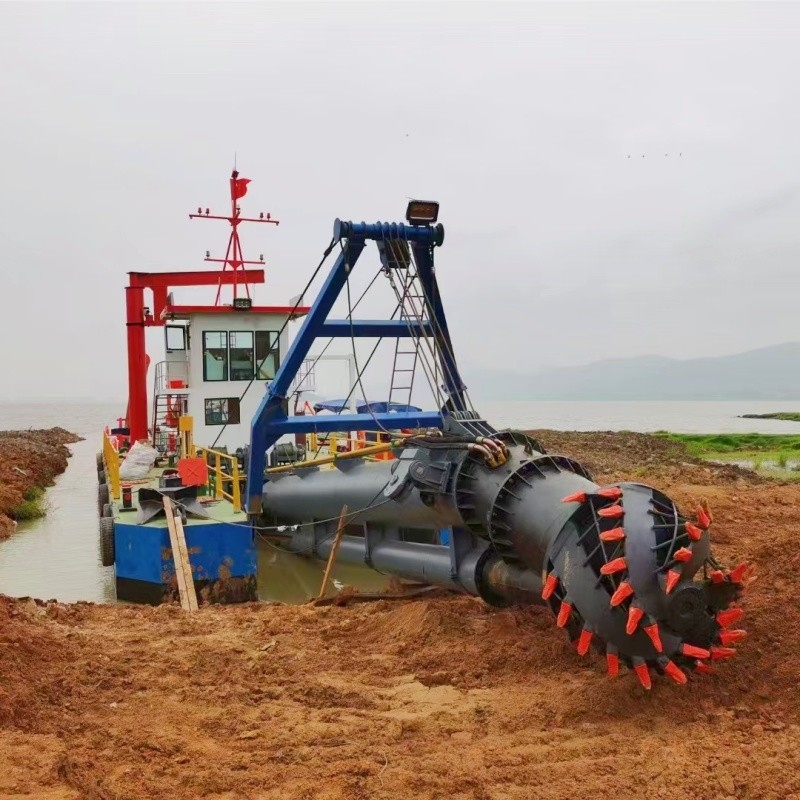

Cutter Suction Dredger Boat For River Sand Mining Projects 0

Model list for hydraulic cutter suction dredger
Model	Inch	Diameter pipe	Water flow	Solid capacity	Total power	Dredging depth	Discharge distance
YSCSD150	6 Inch	150 mm	260 m3/h	30 cbm/h	102 KW	4m	600 m
YSCSD200	8 Inch	200 mm	600 m3/h	80 cbm/h	213 KW	6m	800 m
YSCSD250	10 inch	250 mm	1,000 m3/h	160 cbm/h	367 KW	8m	1,100 m
YSCSD300	12 inch	300 mm	1,500 m3/h	240 cbm/h	591 KW	10 m	1,100 m
YSCSD350	14 inch	350 mm	2,400 m3/h	360 cbm/h	971 KW	12m	1,200 m
YSCSD400	16 Inch	400 mm	3,000 m3/h	500 cbm/h	1,057 KW	14m	1,400 m
YSCSD450	18 Inch	450 mm	3,500 m3/h	700 cbm/h	1,462 KW	15m	1,500 m
YSCSD500	20 Inch	500 mm	3,800 m3/h	760 cbm/h	1,648 KW	15m	1,600m
YSCSD600	24 Inch	600 mm	6,000 m3/h	900 cbm/h	2,511 KW	15m	1,800 m
YSCSD650	26 Inch	650 mm	7,000 m3/h	1,400 cbm/h	3,705 KW	Max.18m	1,800m

The main structure of a cutter suction dredger includes the hull, cutter, suction pipe, pump body, and discharge pipe.

The cutter is a key component of a cutter suction dredger, usually installed at the bow or side of the ship. By rotating

the cutter, the sediment at the bottom of the water is crushed and mixed with water to form mud. The suction pipe

is used to suck mud into the pump body, which transports the mud to the discharge area through the discharge pipe.

Cutter Suction Dredger Boat For River Sand Mining Projects 1

Cutter Suction Dredger Boat For River Sand Mining Projects 2

Cutter Suction Dredger Boat For River Sand Mining Projects 3

Features of cutter suction dredger:

1Reliable and efficiency: The key component like the diesel engine slurry pump and hydraulic control system adopts international brand.
2Tested in the pool delivery before :Quality testing for each dredger delivery before to insure all the function working smoothly.
3Service:Experienced engineers to guide the installation and training the local workers . Engineers can offer support all time .
4Installation and transportation:Dismantle structure is easily for installation and transportation .

FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
