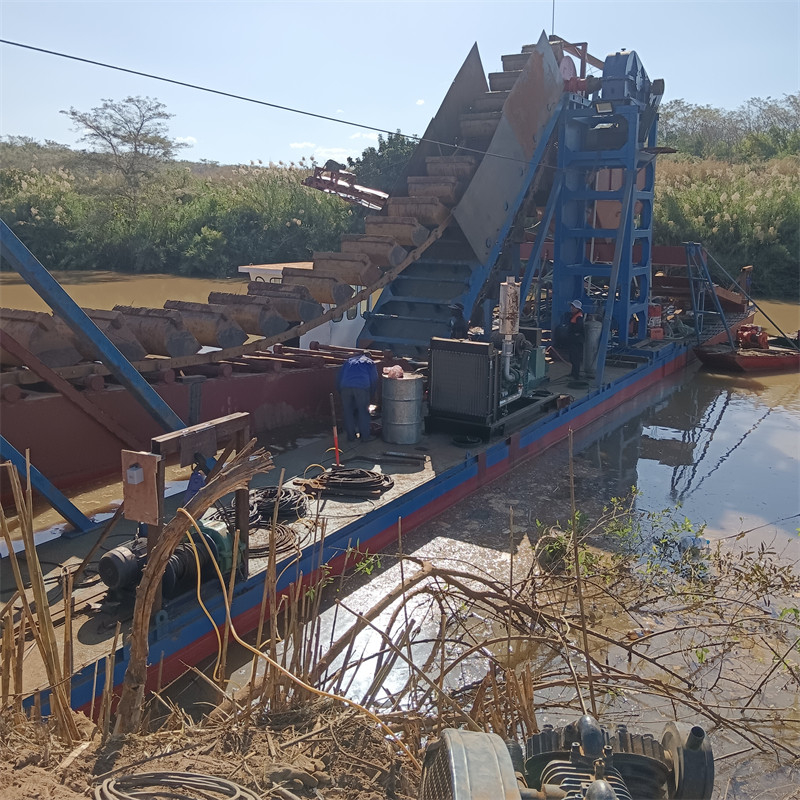

Gold Dredging Chain Bucket Dredger For River

Name: Gold Dredging Chain Bucket Dredger For River
Brand: Shandong Yongsheng Dredging Machinery Co., Ltd.
SKU: ys-gcbd
Price: 320000 USD
Availability: InStock

Product Details

Place of Origin: china

Brand Name: yongsheng

Model Number: ys-gcbd

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 320000usd/piece

Packaging Details: Container

Delivery Time: 60 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                Gold Dredging Chain Bucket Dredger, River Gold Dredging Chain Bucket Dredger


Customized:	Customized	Condition:	New
Warranty:	3 Year	Max.Dredging Depth 45°:	20m
Dredger Structure:	Can Be Assembly In Working Site	Working Capacity:	200m³/h
Engine:	Diesel	Suitable Condition:	Drylands, Rivers, Lakes

Customized:	Customized
Condition:	New
Warranty:	3 Year
Max.Dredging Depth 45°:	20m
Dredger Structure:	Can Be Assembly In Working Site
Working Capacity:	200m³/h
Engine:	Diesel
Suitable Condition:	Drylands, Rivers, Lakes

Product Description

can be customized

Bucket rotates around the underwater dredging wheel, scooping up the solid in the riverbed, then trommel classifier, with single layer or double layer screens, will separate the gravels, clay balls, water plants with need sand. The discharge system could be divided into single-discharge, multi-conveyor belts and chute.

Gold Dredging Chain Bucket Dredger For River 0

Model	Deal Capacity(m3/h)	Power(KW)	Water consumption(m3/h)	Dredge Depth(m)
YSBCD-100	100	65-100	100-200	1-25
YSBCD-150	150	82-120	150-250	1-25
YSBCD-200	200	97-150	200-300	1-25
YSBCD-250	250	108-200	250-500	1-25

The raw materials dug up by the bucket enter the sieve for screening. The screened raw materials can enter the gold selection chute or Gold Vibrating Chute or centrifuge.(can choose according to the situation)

Gold Vibrating Chute:

The drum chute is a new type of gold placer selection equipment developed on the basis of ordinary fixed flow channels. It combines the advantages of fixed chutes and jigs, overcomes the disadvantages of easy settling in fixed flow channels and high yield in jigs, and thus achieves the characteristic of low yield but not easy settling.
The characteristics of the drum chute: basically retaining the original characteristics of the fixed chute, the original iron bottom plate is replaced with a rubber bottom plate, and a simple eccentric drum mechanism is added to make the rubber bottom plate perform up and down reciprocating motion. The diaphragm between each chute is similar to that of a jigger. This solves the problem of grid hardening and improves the recovery rate of gold. Due to the intermittent discharge of concentrate from the drum chute, the enrichment ratio is several tens to several hundred times higher than that of a jigger.

gold selection chute:

The working principle of the gold selection chute is mainly to use the difference in the specific gravity between gold and sand.Through the slurry flowing through the chute, the heavy gold settles in the bottom layer, while the sand with smaller specific gravity floats in the upper layer and is discharged from the working area with the water flow. This process effectively overcomes the phenomena of chute compaction and sedimentation, and significantly improves the recovery rate of fine gold particles

Centrifuge

Centrifuge gold separation is an efficient physical separation method that uses centrifugal force to separate gold from other minerals. It is suitable for placer gold, rock gold, tailings recovery and other occasions. This method does not require chemical agents, is environmentally friendly and has a high recovery rate. It is particularly suitable for recovering fine gold, capillary gold, flake gold, 200-800 mesh fine gold

COMPANY INFORMATION:

Shandong Yongsheng Dredging Machinery Equipment Co., Ltd. is located in Ma Song Industrial Park, Huanglou Street, Qingzhou City, Weifang City, Shandong Province, China. Yongsheng was established in 1995, which is a comprehensive manufacturer that integrating R&D, production, sales and after-sales service. Designing and manufacturing of cutter suction dredgers and aquatic weed harvester are the company's main business.
