26 Inch Cutter Suction Dredge Boat
, Customized Cutter Suction Dredge Boat
, 3705 Kw Cutter Suction Dredge Boat
Product Description

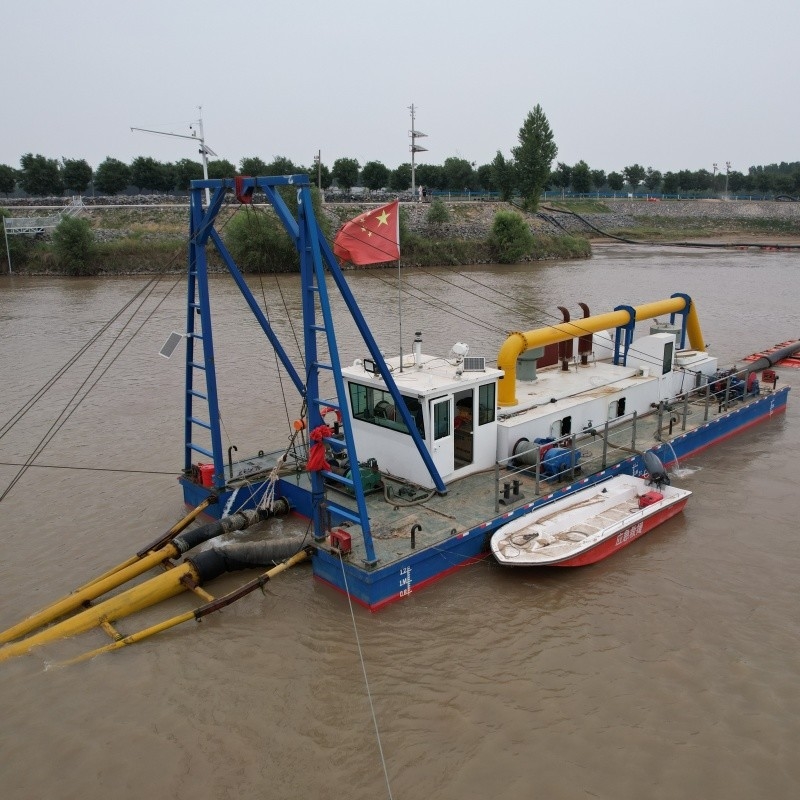

Cutter suction dredger is dismountable and can be easily transported to any location. With its robust design, it is the preferred choices in its class due to low maintenance, excellent fuel consumption and high productivity levels.
The dredger can work for land filling, sand dredging, port deepening, channel dredging and land reclamation. The design, construction, quality inspection of our cutter suction dredger is based on the standards and regulations of CCS. The hull, machinery equipment and other spares are at the requirements of CCS as well. The hull is square, cross keel, which is full welding steel structure, and authorized by CCS.
The dredgers we are producing are diesel engine driven, self-propelled or non self-propelled, portable hydraulic cutter suction dredgers. The hull uses dismantle and box-like structure, dismantle for shipment and assembly at working site.
It can also be equipped with anchoring poles and spud carrier to increase capacity.
Product Parameters
| YSCSD650 26 inch solid capacity 1400 cbm/h hydraulic cutter suction dredger |
| Technical specifications |
| Water flow |
7,000 m3/h |
| Solid capacity |
1400cbm/h |
| Max. dredging depth 45° |
18 m |
| Discharge distance |
1,800 m |
| LOA |
50 m |
| Dredger after assembly |
50*11*3.2m Length* width* depth |
| Dredger structure |
Dismantle type and can be assembly in working site |
| Average draught |
2 m |
| Diameter discharge pipe |
650 mm/26 inch |
| Main Engine |
2,685 kw |
| Rotate speed |
1800 r/min |
| Auxiliary engine power |
970 kw |
| Generator |
50 kw |
| Hydraulic cutter power |
660 kw |
| Total power |
3705 kw |
| Model list for hydraulic cutter suction dredger |
| Model |
Inch |
Diameter pipe |
Water flow |
Solid
capacity |
Total power |
Dredging depth |
Discharge distance |
| YSCSD150 |
6 Inch |
150 mm |
260 m3/h |
30 cbm/h |
102 KW |
4m |
600 m |
| YSCSD200 |
8 Inch |
200 mm |
600 m3/h |
80 cbm/h |
213 KW |
6m |
800 m |
| YSCSD250 |
10 inch |
250 mm |
1,000 m3/h |
160 cbm/h |
367 KW |
8m |
1,100 m |
| YSCSD300 |
12 inch |
300 mm |
1,500 m3/h |
240 cbm/h |
591 KW |
10 m |
1,100 m |
| YSCSD350 |
14 inch |
350 mm |
2,400 m3/h |
360 cbm/h |
971 KW |
12m |
1,200 m |
| YSCSD400 |
16 Inch |
400 mm |
3,000 m3/h |
500 cbm/h |
1,057 KW |
14m |
1,400 m |
| YSCSD450 |
18 Inch |
450 mm |
3,500 m3/h |
700 cbm/h |
1,462 KW |
15m |
1,500 m |
| YSCSD500 |
20 Inch |
500 mm |
3,800 m3/h |
760 cbm/h |
1,648 KW |
15m |
1,600m |
| YSCSD600 |
24 Inch |
600 mm |
6,000 m3/h |
900 cbm/h |
2,511 KW |
15m |
1,800 m |
| YSCSD650 |
26 Inch |
650 mm |
7,000 m3/h |
1,400 cbm/h |
3,705 KW |
Max.18m |
1,800m |
main parts

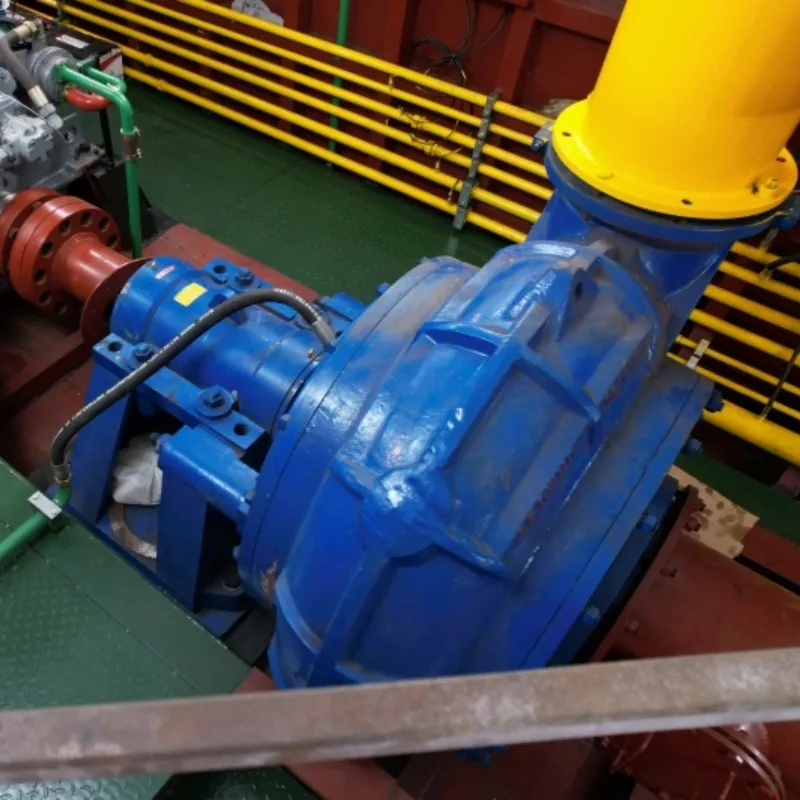

The dredge pump is driven by the main diesel engine through the reducing gear box.
The alternator, which driven by the auxiliary diesel engine, supplies electricity for power and lighting of the whole dredger.
Generator supplies electricity for lighting and emergency using when dredger doesn't working.

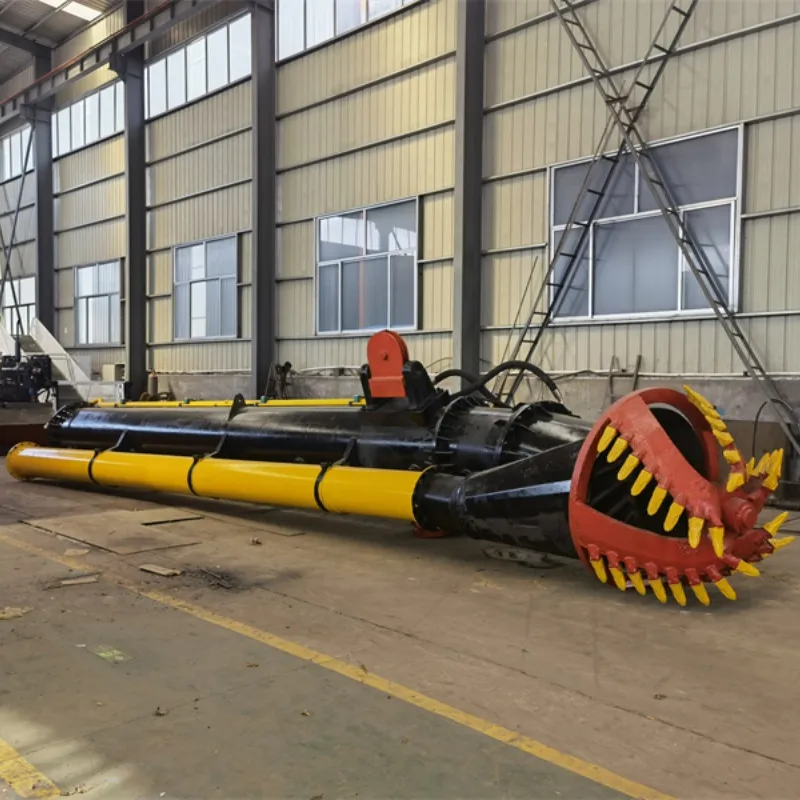

Cutter head is driven by hydraulic motor; cutter bearing has lubrication seal-in units.
The dredger is moved by alternate swing of the spuds. The spuds are lifted by the hydraulic cylinder.

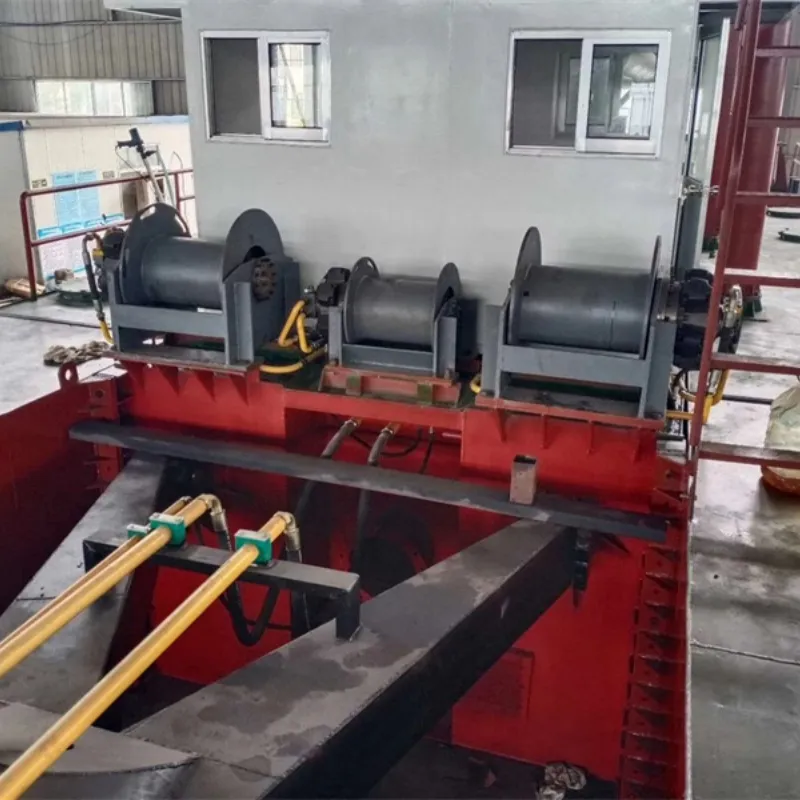

The shifting winches, cutter ladder and lifting winch are driven by the hydraulic motor.
The hydraulic oil pump is driven by the auxiliary diesel engine.
All parts on my cutter suction dredger adopts reliable and durable international brand to reach the low failure high efficient. Offering the biggest profit for customers.
Main equipment on the dredger:

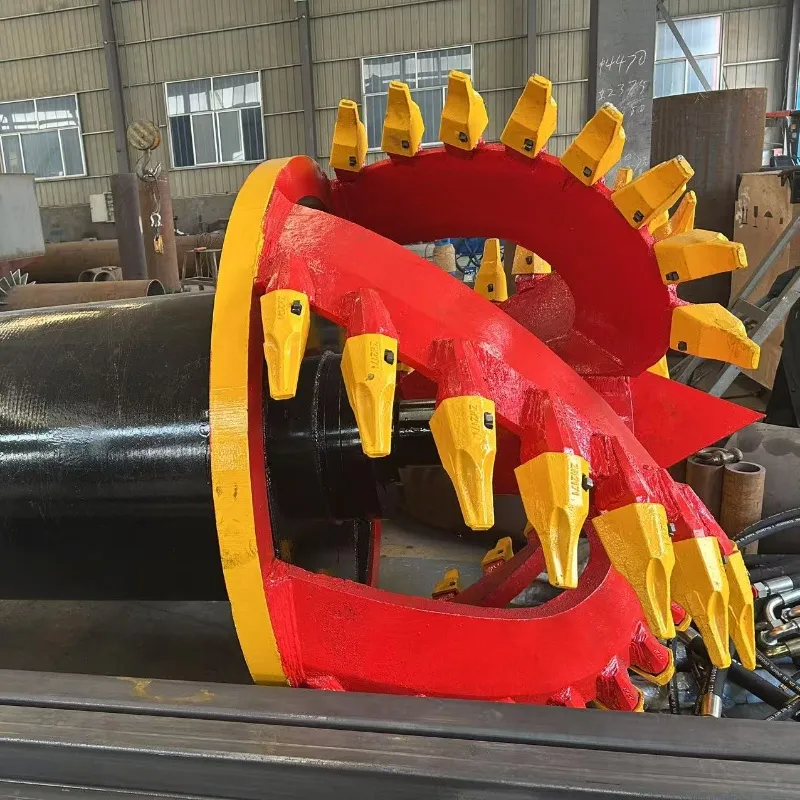

--Cutter head

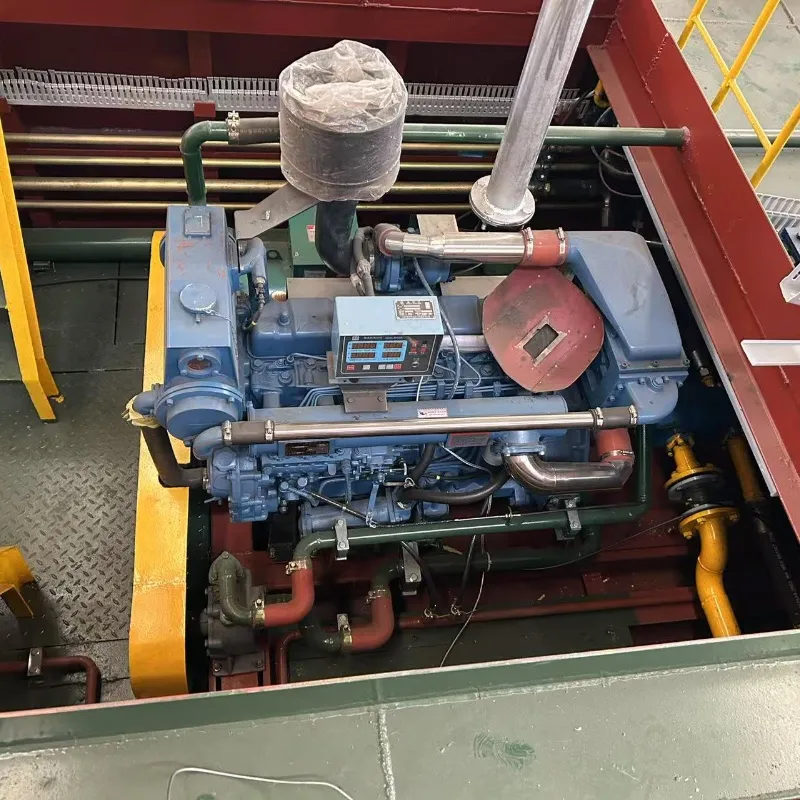

--Dredging pump --Main diesel oil engine

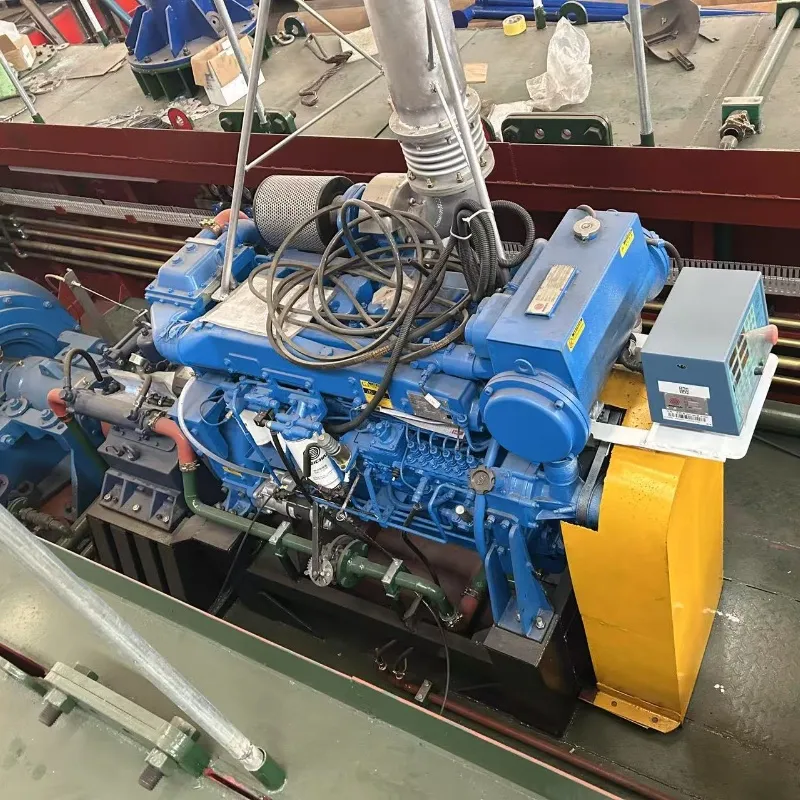

auxiliary diesel oil engine -- winch

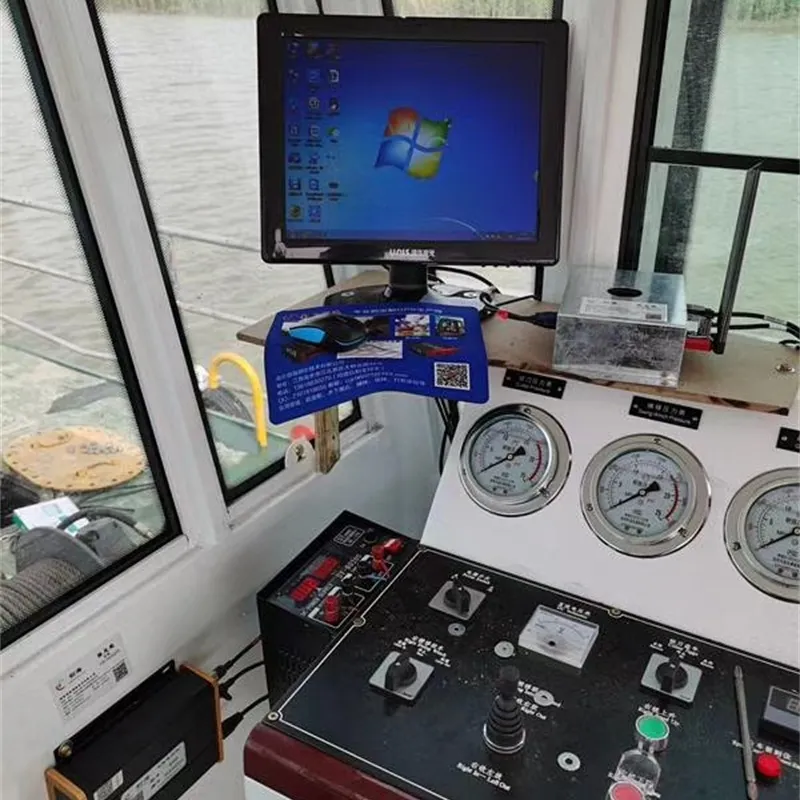

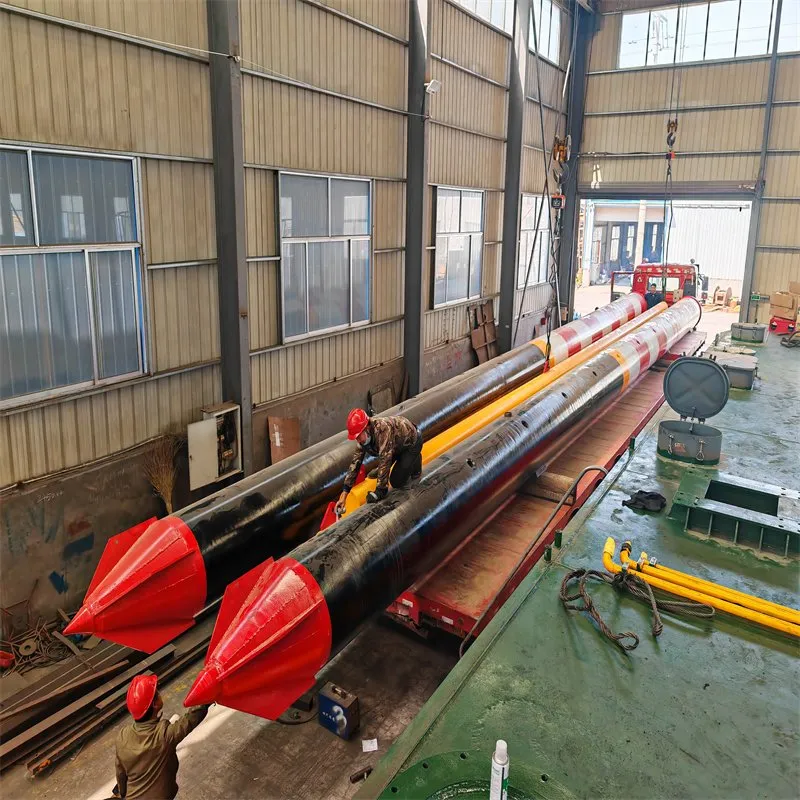

--Position spud and accessories --operation room
Certifications

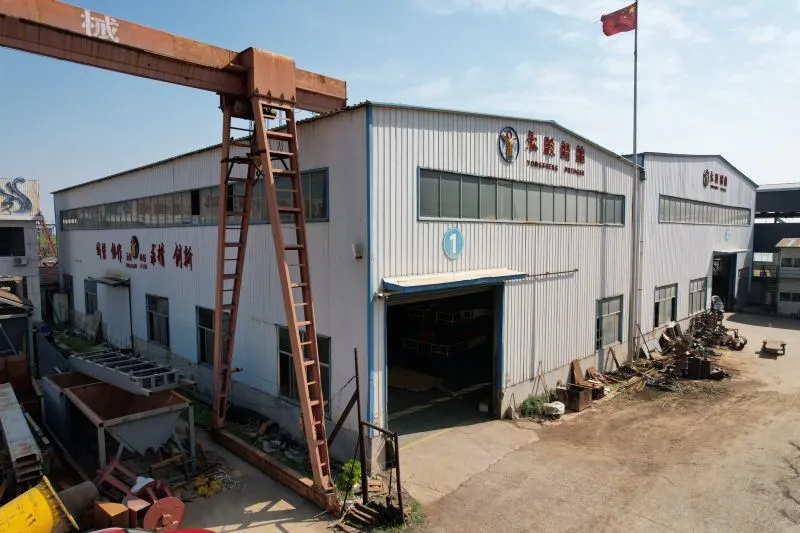

Company Profile

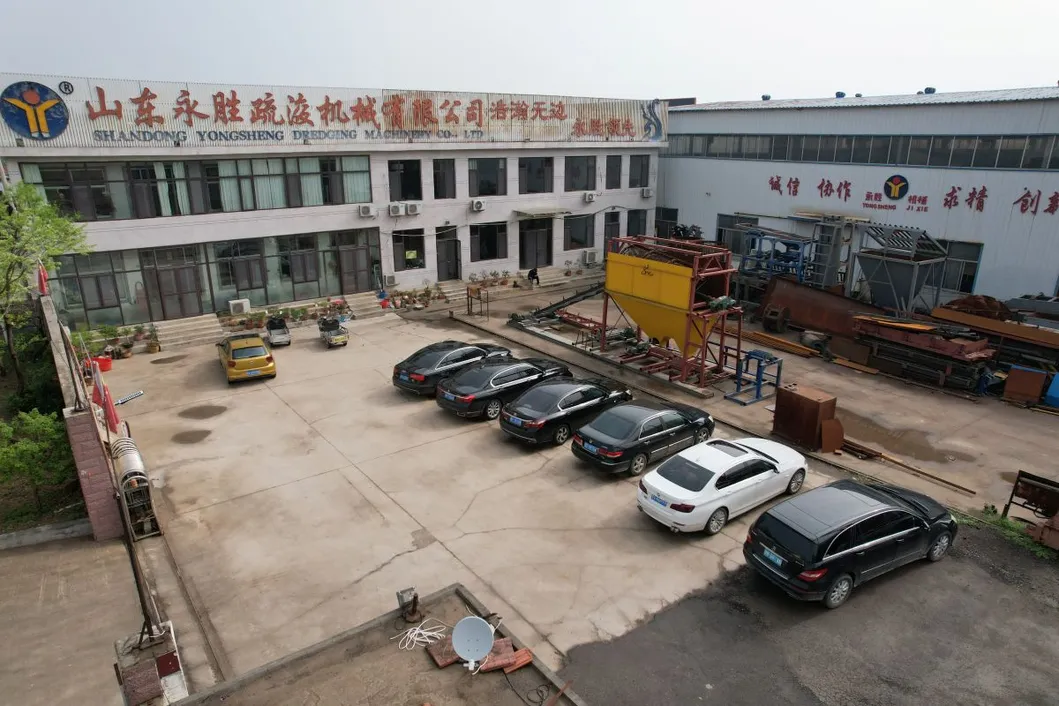

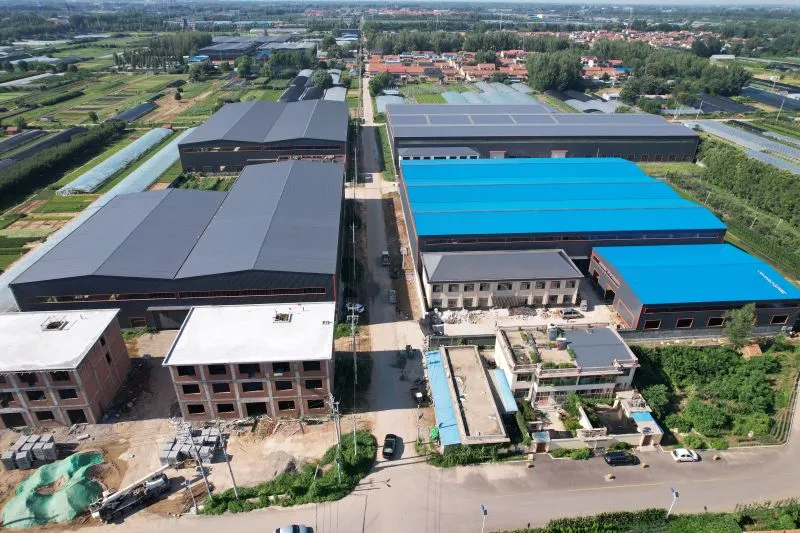

Shandong Yongsheng Dredging Machinery Equipment Co., Ltd. is located in Ma Song Industrial Park, Huanglou Street, Qingzhou City, Weifang City, Shandong Province, China. Yongsheng was established in 1995, which is a comprehensive manufacturer that integrating R&D, production, sales and after-sales service. Designing and manufacturing of cutter suction dredgers and aquatic weed harvester are the company's main business.
Yongsheng is cling to customer-oriented and quality first, and has always maintained cooperative relationships with China Communications Construction Group Co., Ltd. and China Railway Engineering Group Co., Ltd.
Our products have been exported to Malaysia, Russia, Mongolia, Thailand, Vietnam, Singapore, Indonesia, Fiji, Nigeria, Zimbabwe, Cameroon, Cote d'Ivoire, Ghana, Uganda and other countries
