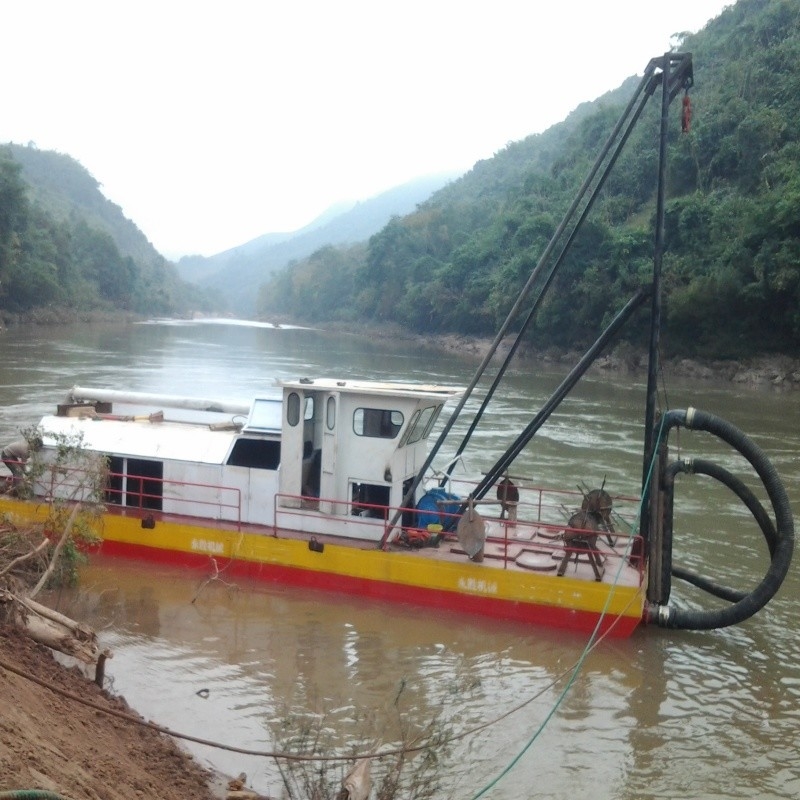

200 Cubic Meter Model Sand Boat Jet Suction Dredger

New 200 Cubic Meter Model Sand Boat Jet Suction Dredger for Sale

Product Description:

Jet suction dredger is a very common sand pumping ship. Many rivers are constructed with this dredger. When the equipment is working, our sand suction cage and hose are lowered to the bottom of the water. The water in the river is ejected onto the bottom sand layer at high speed by the high-pressure water pump. The sand is impacted by the water flow and begins to diffuse and mix with the water. The sand mixed with water enters the equipment through our sand suction cage under the action of the sand pump. After being pumped in the cabin, the sand is discharged to the shore through the conveying pipeline.

Features:

• Product Name: Jet suction dredger
• Testing: Empty Running Before Ex-factory
• Side Plate Thickness: 5 Mm
• Discharge diameter: 14inch
• Power Type: Diesel
• Total Fuel Consumption: According To Engine Brand

This jet suction dredger is a river sand mining equipment equipped with a powerful sand pump and power, which can easily extract sand from the bottom of the river. It is very suitable for sand mining in inland areas such as rivers and lakes.

Experience the power and efficiency of the jet suction dredger today and get your project done right!

Technical specifications

Applications:

Composition of the jet suction dredger:
1. Sand pump, high-pressure water pump, iron pipe welded to the pipe outside the hull, pump base, connection between the pump and the power diameter, etc.
2. Power components, diesel engine or motor, including its base, pulley and other connections.
3. Pipeline system: including sand pumping hose, iron pipe, faucet, etc.
4. Other auxiliary components: including winch, gantry, wire rope, etc.
Jet suction dredger is widely used in sand pumping in various environments due to its own flexibility and high cost performance.

Maintenance of jet suction dredger:
1. The suction sand pumping boat should move flexibly when moving forward or backward according to the geographical conditions. If there are large stones, mud, etc., they must be cleaned up.
2. Check the chain screws, pins and fasteners of the fixed points of the transmission system at any time to make sure they are firm.
3. The front diesel engine should be shut down when the suction sand pumping boat is shut down
4. In case of strong wind (level 5 or above), it should be temporarily shut down to avoid malfunction
5. During the use of the jet suction dredger, the screws of various parts should be checked frequently and lubricating oil and maintenance should be added frequently.

Support and Services:

The jet suction dredger product technical support and services nclude:

• Installation and commissioning
• Training for operators and maintenance personnel
• Remote technical support
• On-site technical support and troubleshooting
• Regular maintenance and inspection services
• Repair and overhaul services
• Spare parts supply

Product Packaging:

• The jet suction dredger will be securely packed in a wooden crate to prevent damage during shipping.
• All parts and accessories will be neatly placed within the crate and properly labeled for easy identification.

Shipping:

• The jet suction dredger will be shipped via a reliable freight carrier.
• The shipping cost will be calculated based on the destination and weight of the product.
• The customer will be provided with a tracking number to monitor the status of their shipment.
• Delivery times may vary depending on the destination and any customs clearance procedures.
