Good Quality Cutter Suction Dredging Mud Boat with Sand Pump

Name: Good Quality Cutter Suction Dredging Mud Boat with Sand Pump
Brand: Shandong Yongsheng Dredging Machinery Co., Ltd.
SKU: csd450
Price: 560000 USD
Availability: InStock

Product Details

Place of Origin: china

Brand Name: yongsheng

Model Number: csd450

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 560000usd/piece

Packaging Details: Container

Delivery Time: 60 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Customized:	Customized	Condition:	New
Warranty:	1 Year	Water Flow:	3500m3/h
Solid Capacity:	700cbm/h	Max.Dredging Depth 45°:	15m
Discharge Distance:	1500m	Dredger After Assembly:	43.57.52 M Lengthwidthdepth
Dredger Structure:	Can Be Assembly In Working Site	Average Draught:	1.2m
Diameter Discharge Pipe:	450mm/18inch	Total Power:	1057kw
Main Engine:	1,007kw	Auxiliary Engine Power:	425 Kw
Generator:	30 Kw	Hydraulic Cutter Powerr:	160 Kw

Customized:	Customized
Condition:	New
Warranty:	1 Year
Water Flow:	3500m3/h
Solid Capacity:	700cbm/h
Max.Dredging Depth 45°:	15m
Discharge Distance:	1500m
Dredger After Assembly:	43.57.52 M Lengthwidthdepth
Dredger Structure:	Can Be Assembly In Working Site
Average Draught:	1.2m
Diameter Discharge Pipe:	450mm/18inch
Total Power:	1057kw
Main Engine:	1,007kw
Auxiliary Engine Power:	425 Kw
Generator:	30 Kw
Hydraulic Cutter Powerr:	160 Kw

Product Description

Good Quality Cutter Suction Dredging Mud Boat with Sand Pump

Product Specifications

Attribute	Value
Customized	Customized
Condition	New
Warranty	1 year
Water Flow	3500m³/h
Solid Capacity	700cbm/h
Max. Dredging Depth 45°	15m
Discharge Distance	1500m
Dredger After Assembly	43.57.52 m (Lengthwidthdepth)
Dredger Structure	Can Be Assembled in Working Site
Average Draught	1.2m
Diameter Discharge Pipe	450mm/18inch
Total Power	1057kw
Main Engine	1,007kw
Auxiliary Engine Power	425 kw
Generator	30 kw
Hydraulic Cutter Power	160 kw

Product Description

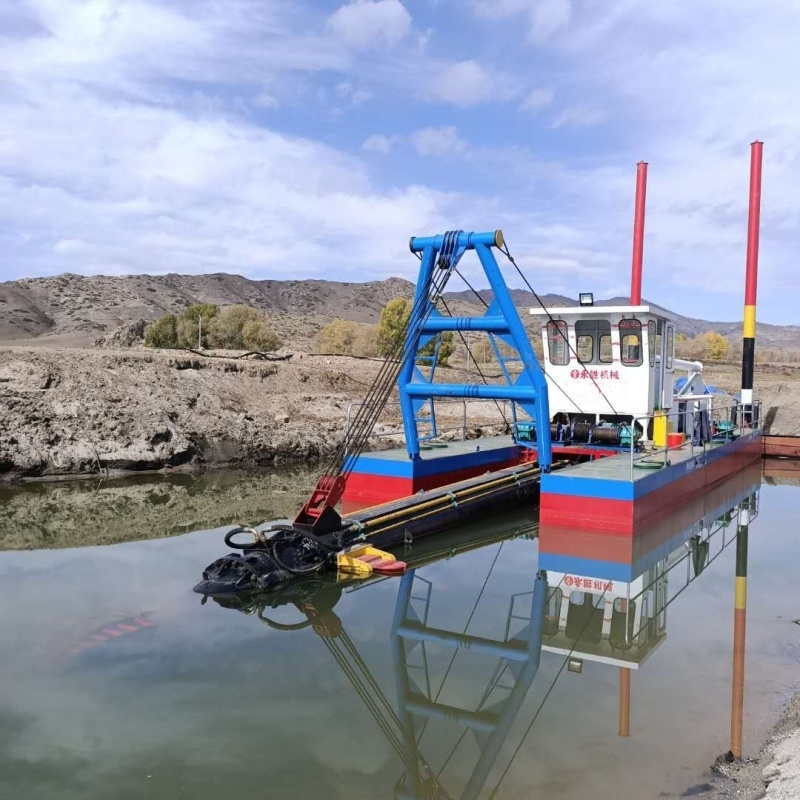

The cutter suction dredger is one of the most popular models, equipped with Cummins diesel engine, Shijiazhuang dredging pump, gearbox and coupler, anchor boom, depth sounder, Siemens PLC, and Rexroth hydraulic control system.

Cutter suction dredgers have a broad range of applications in operations in rivers, lakes, and seas for dredging and channel excavation. In exceptional circumstances, a cutter suction dredger with high-power devices can excavate without blasting rocks such as basalt and limestone strata. With characteristics of high efficiency and large output (up to several thousand cubic meters per hour), the sand or crushed rock material can be pumped out several kilometers away through strong driving force mud pumps and mud pipelines.

Model Specifications

Model	Inch	Diameter Pipe	Water Flow	Solid Capacity	Total Power	Dredging Depth	Discharge Distance
YSCSD150	6 Inch	150 mm	260 m³/h	30 cbm/h	102 KW	4m	600 m
YSCSD200	8 Inch	200 mm	600 m³/h	80 cbm/h	213 KW	6m	800 m
YSCSD250	10 inch	250 mm	1,000 m³/h	160 cbm/h	367 KW	8m	1,100 m
YSCSD300	12 inch	300 mm	1,500 m³/h	240 cbm/h	591 KW	10 m	1,100 m
YSCSD350	14 inch	350 mm	2,400 m³/h	360 cbm/h	971 KW	12m	1,200 m
YSCSD400	16 Inch	400 mm	3,000 m³/h	500 cbm/h	1,057 KW	14m	1,400 m
YSCSD450	18 Inch	450 mm	3,500 m³/h	700 cbm/h	1,462 KW	15m	1,500 m
YSCSD500	20 Inch	500 mm	3,800 m³/h	760 cbm/h	1,648 KW	15m	1,600m
YSCSD600	24 Inch	600 mm	6,000 m³/h	900 cbm/h	2,511 KW	15m	1,800 m
YSCSD650	26 Inch	650 mm	7,000 m³/h	1,400 cbm/h	3,705 KW	Max.18m	1,800m

Key Features

Reliable and efficient: Key components like the diesel engine, slurry pump, and hydraulic control system use international brands.
Quality tested: Each dredger undergoes pool testing before delivery to ensure all functions work smoothly.
Comprehensive service: Experienced engineers guide installation and train local workers, with ongoing support available.
Easy installation and transportation: Dismantled structure facilitates both installation and transportation.

After-Sale Service

Engineers available for overseas installation, training, trial operation, and maintenance
One year warranty included
Customized services or products available
Worldwide shipping to meet global demand

For quotation requests, please provide the following information:

Required clear water flow capacity (cubic meters per hour)
Required dredging depth (meters)
Required discharge distance (meters)
Intended usage environment (river, lake, sea, or channel)
