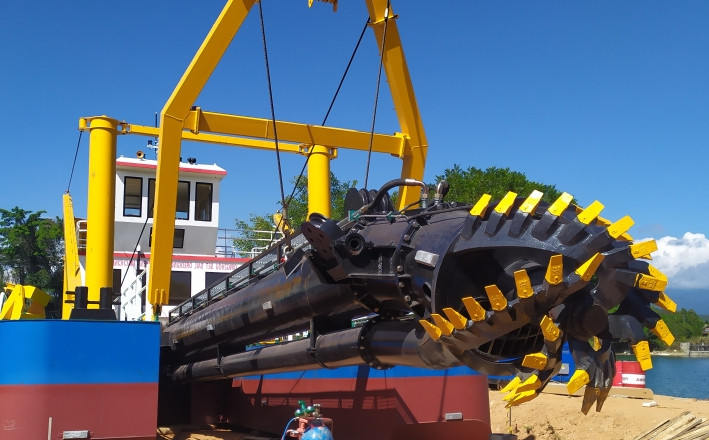

16-Inch Cutter Suction Dredger Exported to The Philippines for Dredging

Name: 16-Inch Cutter Suction Dredger Exported to The Philippines for Dredging
Brand: Shandong Yongsheng Dredging Machinery Co., Ltd.
SKU: YSCSD500
Price: 1200000.00 USD
Availability: InStock

Product Details

Place of Origin: shandong

Brand Name: yongsheng

Model Number: YSCSD500

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: container

Delivery Time: 50days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                16-inch cutter suction dredger, cutter suction dredger for dredging, dredging equipment with warranty


Diameter Pipe:	400mm	Water Flow:	3000 M3/h
Solid Capacity:	500 Cbm/h	Main Engine:	1,057 KW Cummins Engine
Max. Dredging Depth 45°:	14m	Discharge Distance:	1,400 M

Diameter Pipe:	400mm
Water Flow:	3000 M3/h
Solid Capacity:	500 Cbm/h
Main Engine:	1,057 KW Cummins Engine
Max. Dredging Depth 45°:	14m
Discharge Distance:	1,400 M

Product Description

16-Inch Cutter Suction Dredger Exported to The Philippines for Dredging

Product Specifications

Attribute	Value
Diameter pipe	400mm
Water flow	3000 m³/h
Solid capacity	500 cbm/h
Main Engine	1,057 KW Cummins engine
Max. dredging depth 45°	14m
Discharge distance	1,400 m

Product Overview

The Cutter Suction Dredger (CSD) is an efficient and continuous underwater dredging vessel, widely used in port construction, waterway maintenance, land reclamation, water conservancy projects, and environmental dredging.

The operation begins with the cutter head spinning at high speed to loosen seabed sediment, creating a water-sediment slurry. The powerful mud pump then draws this mixture through the suction pipe, pressurizes it, and propels it through an extensive discharge pipeline for precise deposition at designated locations.

Technical Parameters

Model	Inch	Diameter pipe	Water flow	Solid capacity	Total power	Dredging depth	Discharge distance
YSCSD150	6 Inch	150 mm	260 m³/h	30 cbm/h	102 KW	4 m	600 m
YSCSD200	8 Inch	200 mm	600 m³/h	80 cbm/h	213 KW	6 m	800 m
YSCSD250	10 inch	250 mm	1,000 m³/h	160 cbm/h	367 KW	8 m	1,100 m
YSCSD300	12 inch	300 mm	1,500 m³/h	240 cbm/h	591 KW	10 m	1,100 m
YSCSD350	14 inch	350 mm	2,400 m³/h	360 cbm/h	971 KW	12 m	1,200 m
YSCSD400	16 Inch	400 mm	3,000 m³/h	500 cbm/h	1,057 KW	14 m	1,400 m
YSCSD450	18 Inch	450 mm	3,500 m³/h	700 cbm/h	1,462 KW	15 m	1,500 m
YSCSD500	20 Inch	500 mm	3,800 m³/h	760 cbm/h	1,648 KW	15 m	1,600m
YSCSD600	24 Inch	600 mm	6,000 m³/h	900 cbm/h	2,511 KW	15 m	1,800 m
YSCSD650	26 Inch	650 mm	7,000 m³/h	1,400 cbm/h	3,705 KW	Max.18m	1,800m

Note: Technical parameters are for guidance only. Equipment configuration will be tailored to meet specific project requirements and conditions.

Working Principle

Excavation: The rotating cutter head with sharp teeth cuts and pulverizes submerged materials into manageable substances.
Suction: The powerful mud pump creates vacuum to draw in water and loosened materials through the suction pipe.
Transportation: The mixture is pressurized and conveyed through the dredger's pipeline system.
Discharge: Materials are deposited either through direct shore discharge or loaded onto barges for transport.

Core Structure

Cutterhead: Supports excavation with adjustable depth control (over 50m maximum)
Bridge: Supports cutterhead with swing capability for wider excavation
Dredge pump system: Maintains high-concentration slurry delivery over long distances (up to 10km)
Discharge pipeline: Combination of floating and submersible pipes with energy dissipation
Anchor winch: Precisely positions the vessel for grid-based construction
Control console: Integrated with automated systems for real-time monitoring

Applications

Port and waterway construction: Deepwater channel excavation, new port foundation trench
Land reclamation: Island construction (capable of 4,500m³/hour sand/soil blowing)
Environmental governance: Polluted sediment cleaning, river ecological restoration
Mining and resource extraction: Subsea mineral mining (phosphate rock, tin sand, etc.)

Company Profile

Shandong Yongsheng Dredging Machinery Equipment Co., Ltd., established in 1995, is a comprehensive manufacturer specializing in R&D, production, and sales of cutter suction dredgers and aquatic weed harvesters. Located in Qingzhou City, Shandong Province, China, the company holds ISO9001 certification and supports SGS factory inspections.
